Chapter 11 RTD Input Option Board (XBO-RD01A)
11.11 Operation Parameter Setting
Operation parameters of RTD input option board can be specified through [I/O parameters] of XG5000.
11.11.1 Setting items
For the user’s convenience, XG5000 provides GUI (Graphical User Interface) for parameters setting
of RTD module. Setting items available through [I/O parameters] of the XG5000 project window are
described below.
Item
Details
[I/O Parameter]
(1) Specify the following setting items necessary for the module operation.
- Channel Run/Stop
- Sensor type
- Temp. unit
- Count average
(2) The data specified by user through S/W package will be saved on the
flash memory of basic unit when [I/O Parameters] are downloaded.
11.11.2 How to use [I/O Parameter]

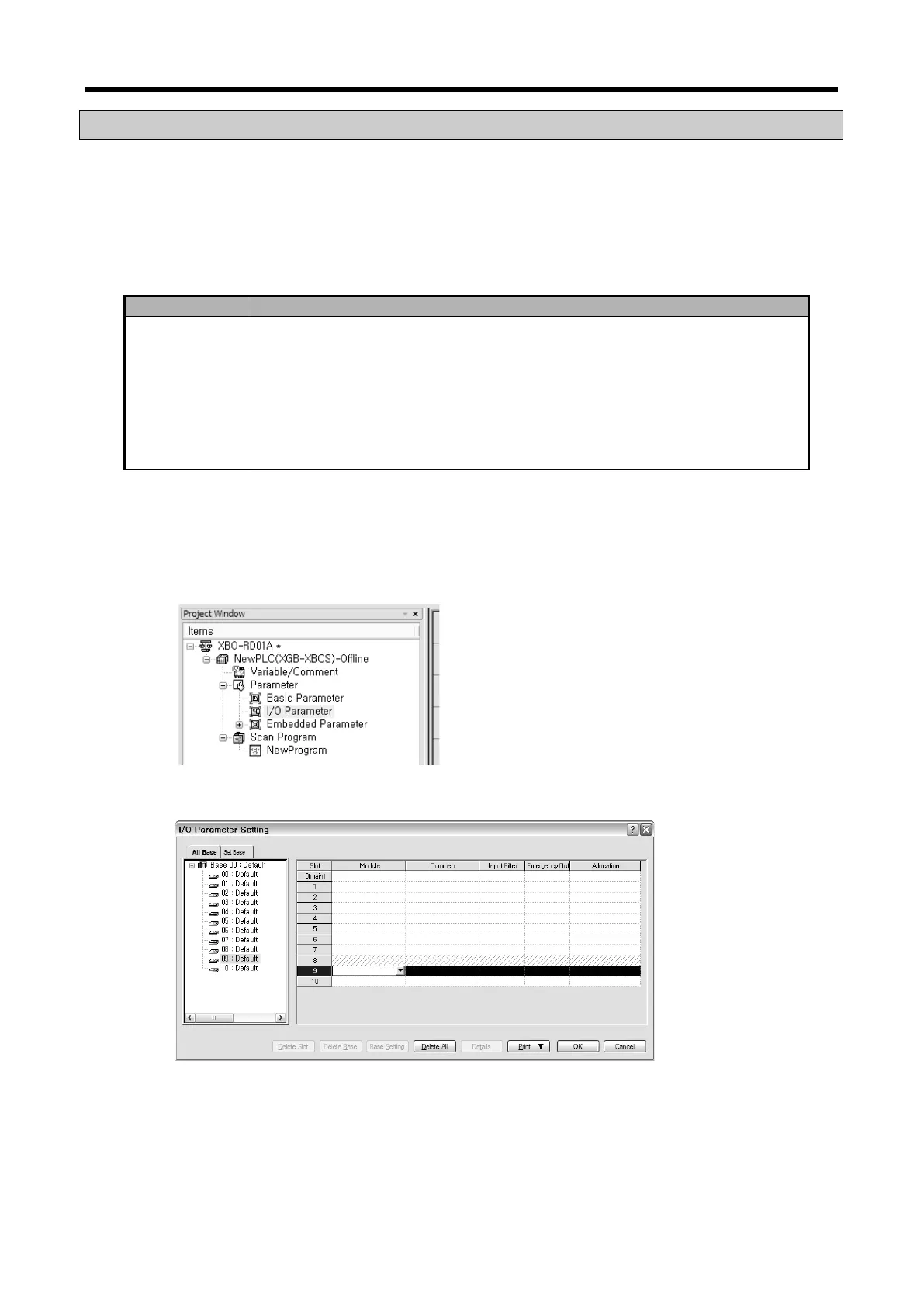

(1) Run XG5000 to create a project. (Refer to XG5000 programming manual for details on how to
create the project)
(2) Double-click [I/O Parameter] on the project window.
(3) On the ‘I/O parameters setting’ screen, find and click the slot of the base where RTD option board
is installed on.
