XGB Analog edition manual

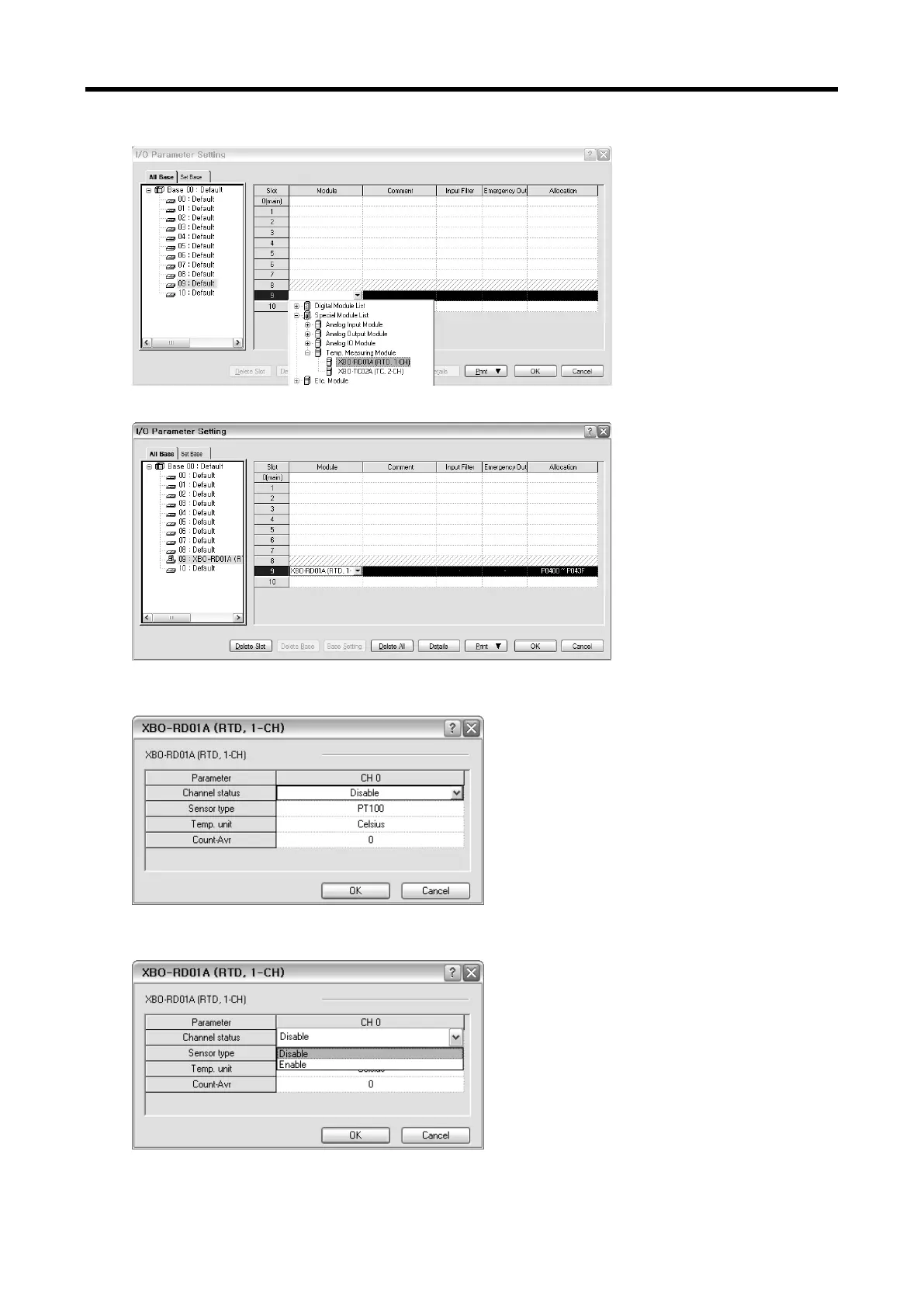

(4) Click the arrow button on the screen to display the screen where an applicable option board can be
selected. Search for the applicable option board to select.
(5) After the option board selected, click [Details] or double-click relevant slot.
(6) A screen will be displayed to specify parameters for respective channels as shown below. Click a
desired item to display parameters to set for respective items.
(7) The initial values of respective items are as follows.
(a) Channel status setting screen
11 - 12
