GYM CONFIGURATION
ÜNO Installation Conguration

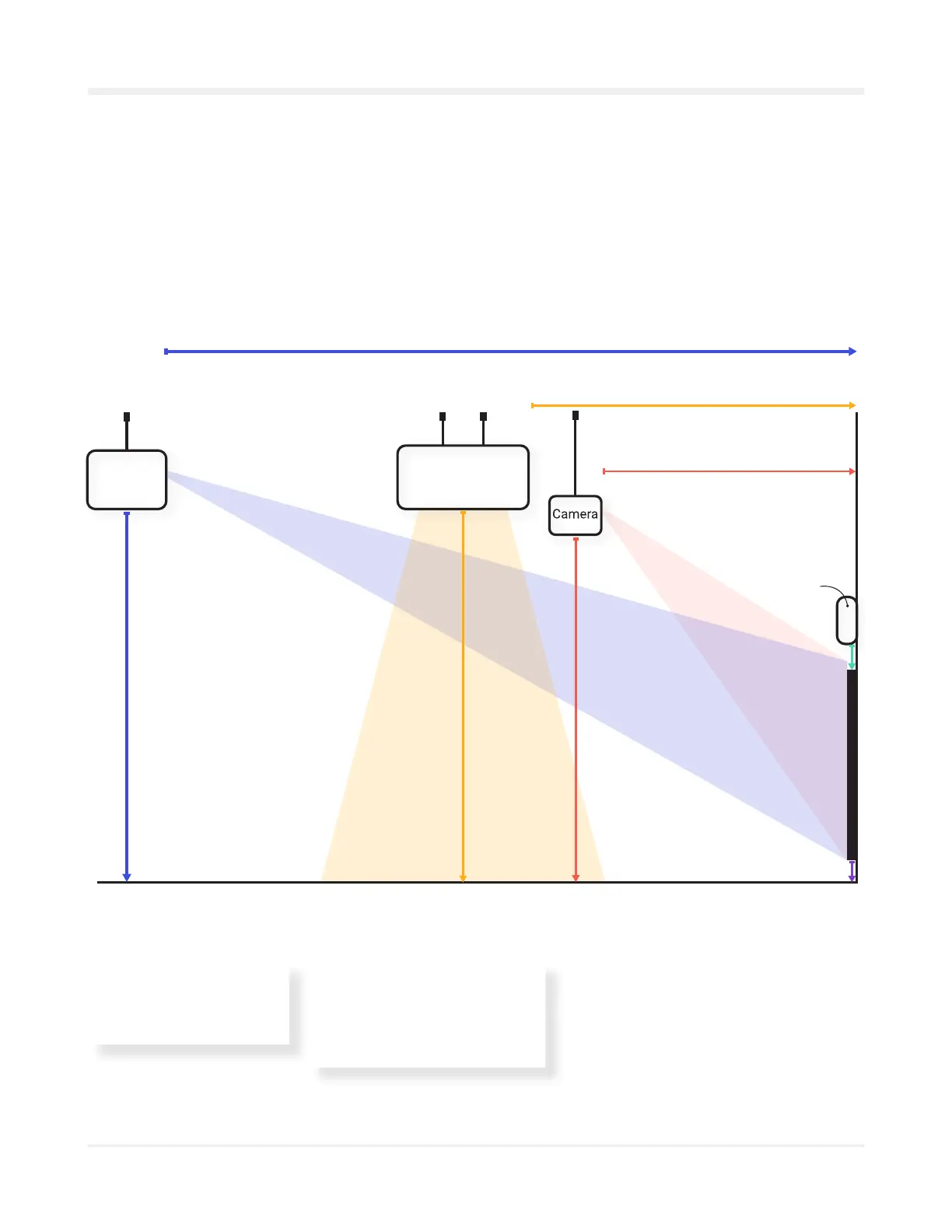

Side view
All units must be mounted to the ceiling and aligned according to the projection surface. The diagram below
shows the optimal position. Some exceptions for special environments can be made, within the exibility margins.
Flexibility margin 19’ (5.8 m) wide
10’ 7” (3.3m) high
Max. projection surfaceOptimal position
D: 15’ (4,5 m)
13’ (3,9 m) to 15’ (4,5 m)
D: 16’ (4,9 m)
15’ (4,5 m) to 18’ (5,5 m)
H: 20’ (6 m)
10’ (3 m) to 24’ (7,3 m)
H: 20’ (6 m)
10’ (3 m) to 24’ (7,3 m)
H: 12” (0,3 m)
H: 8” to 16”
(0,2 m to 0,5 m)
H: 18’ (5,5 m)
10’ (3 m) to 18’ (5,5 m)
Be careful not to have any obstacles in the projection.
Projector
Lighting
D: 28’ (8,6 m)
28’ (8,5 m) to 40’ (12,2 m)
Heart
