Lu UNO - Gym (D)

21

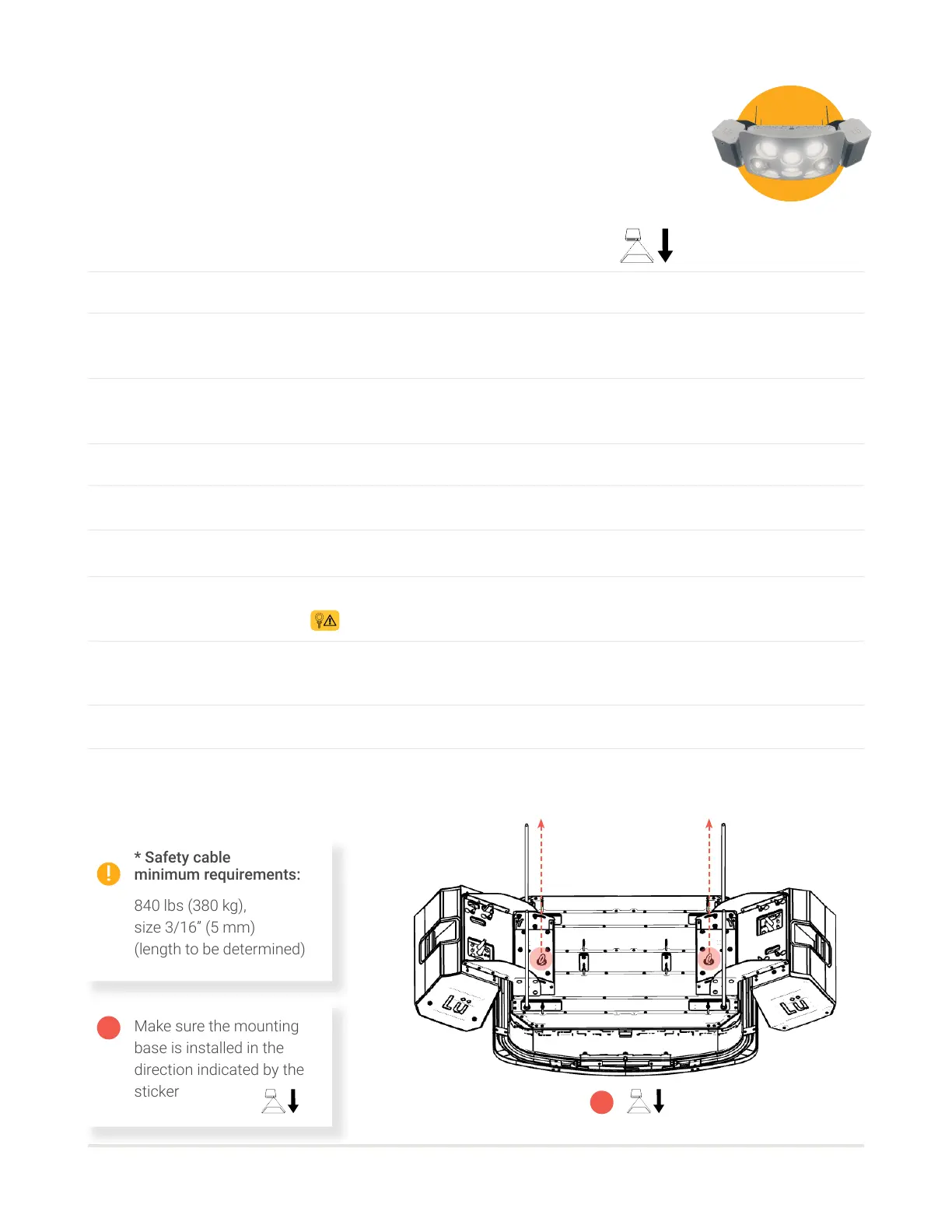

Lift and install the lighting module in place, as follows:
Make sure the base is installed in the direction indicated by the sticker.
Hang the mounting base with the threaded rods, making sure the bolts are doubled.
Disconnect and then unscrew the two moving lights from the lighting tray with an 8 mm socket (so that the
weight of the module is under 23 kg [50 lbs] for a safe single-person installation).
Insert the light tray inside the mounting base on side 1 (green) rst and push on side 2 (red)
until it locks into place.
Screw the light tray to the mounting base with the 8 bolts provided with a 13 mm socket.
Screw the moving lights inside the lighting tray and reconnect their respective cables so that they are working.
Screw the speaker brackets to each side of the mounting base using 8 bolts per bracket and a 13 mm socket.
Screw for the safety eyelets in the center of the speaker brackets and install the safety cables from the eyelets
to the building structure.
Install the speakers on the brackets by sliding the nuts through the eyelets downwards. Then tighten the nuts
with a 13 mm socket.
Attach speaker safety carabiners to the safety eyelets.•
Pass the 48” (122 cm) IEC cables through the mounting base, one on each side, and connect them to
the speakers.
06
07
08
10
11
09
02
03
05
04
INSTALLATION RIGGING - GYM (D)
Lighting module
01
Make sure the mounting
base is installed in the
direction indicated by the
sticker
* Safety cable
minimum requirements:
840 lbs (380 kg),
size 3/16” (5 mm)
(length to be determined)
A
A
