Lu UNO - DÜO Wiring Diagram

13
GYM CONFIGURATION

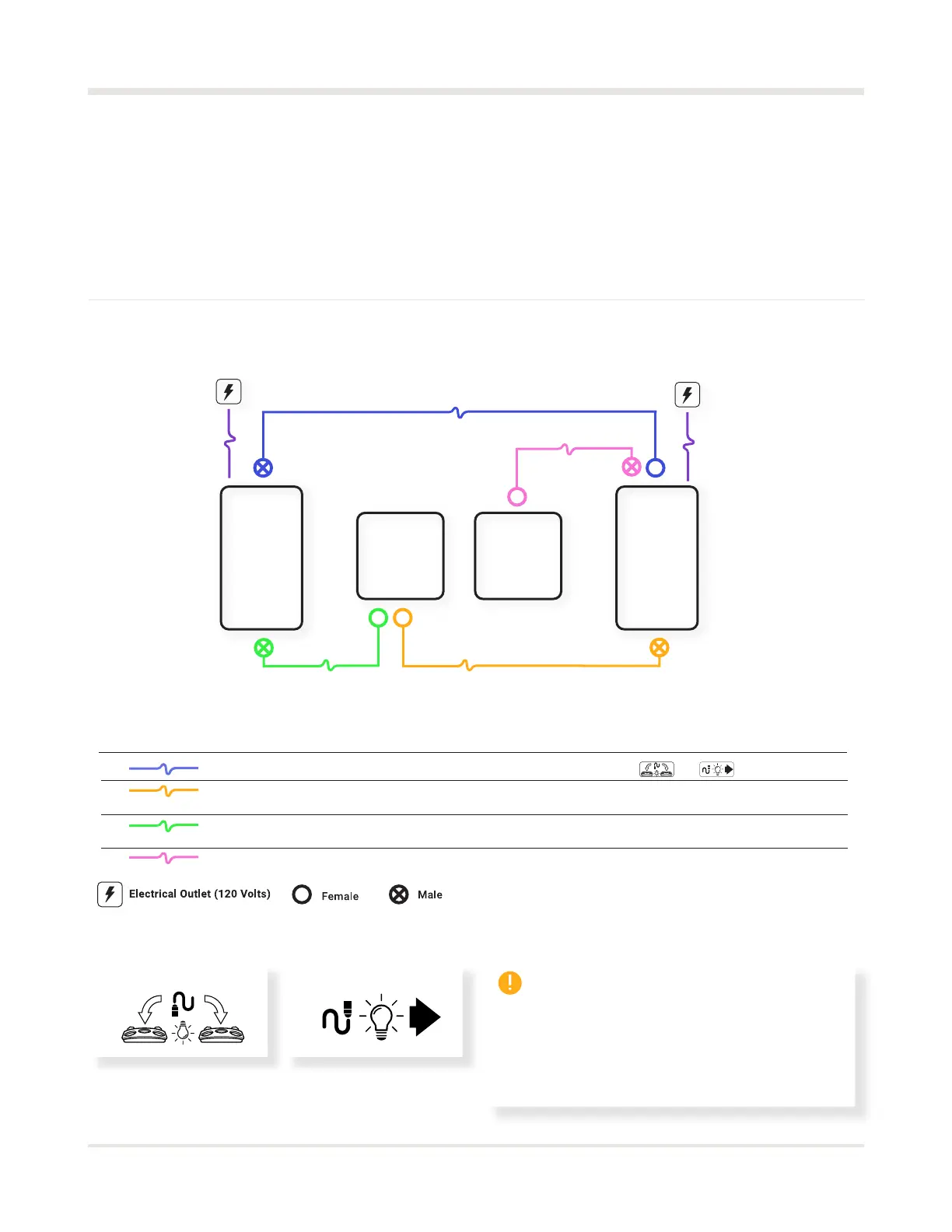

DÜO wiring diagram
Top view
IMPORTANT
Both computers must be connected to the
same network for the DÜO system to work.
There should be only one DÜO system per
network.
Use the ÜNO wiring diagram to connect the projector, light and sound, camera,
and Heart modules.
Interconnect the two light modules following this diagram.
01
02
Male Female
30’ (9,1 m) + 15’ (4,5 m) DMX Secondary unit cable
50’ (15,25 m) XLR Sound cable
25’ (7,62 m) XLR Sound cable
25’ (7,62 m) / 30’ (10 m) / 50’ (15 m) XLR Sound cable
01
02
03
04
Connect a DMX cable of to
Connect the LEFT out (Black connection) from the primary unit’s
Projector to the in of the secondary unit’s main Speaker.
Connect the RIGHT out (Red connection) from the primary unit’s
Projector to the in of the primary unit’s main Speaker.
Connect the RIGHT out (Red connection) from the Projector of the
secondary unit to the in of the secondary unit’s main speaker.
Top view
01
02
04
03
Secondary unitSecondary unitMaster unit Master unit
Lighting Projector Projector Lighting
