25

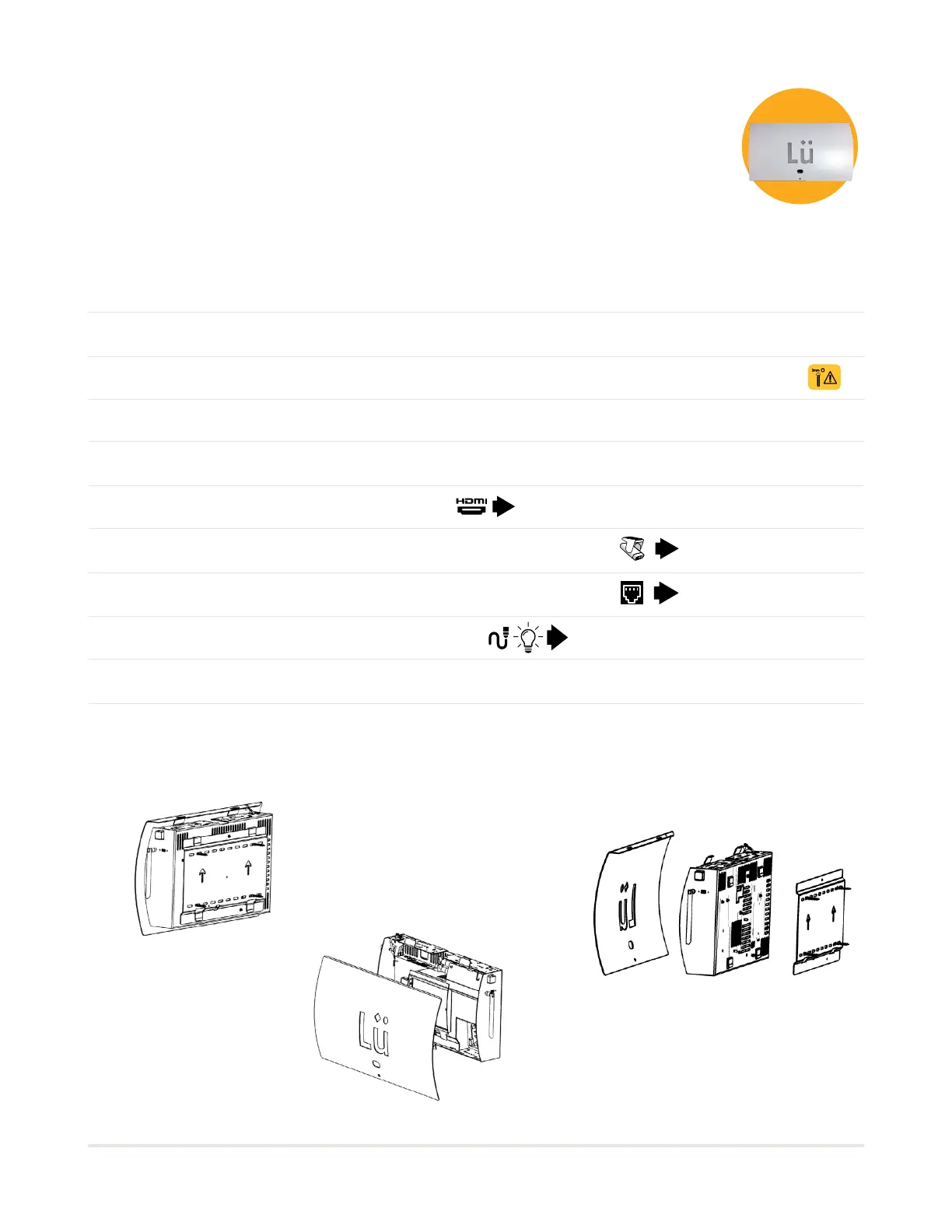

Lift and install the Heart, as follows :
INSTALLATION RIGGING
HEART MODULE (G)
Install the mounting plate to the projection wall in the center of the markers made in step 2. The bottom of
the mounting plate should be between 6’ (15 cm) and 12’ (30 cm) above the projection.
Insert the Hearth module from top to bottom into the wall mount.
Open the Heart cover and secure the module using the two M5 bolts with a 3 mm hex screwdriver.
Install the wire cover from the center of the Heart to the ceiling.
Connect the IEC cable to the Heart power bar.
Connect the HMDI cable to the PC computer.
Connect the USB cable to the PC computer where the CAMERA logo is.
Connect the Cat5 network cable to the PC computer where the logo is.
Connect the DMX cable where the light-bulb logo is.
Gather the ve cables and secure them inside the cable cover up to the ceiling.
Close the Heart cover.
02
05
09
03
06
10
04
08
07
11
01
