20
INSTALLATION CONFIGURATION
Step by step (A to C)
Choose the best projection location on the wall (center and 4 corners)
The recommended width is 19’ (5.8 m) and the recommended height is 10.7’ (3.3 m). For the ideal position,
the lower end of the screen should be placed at 12” (20 cm) from the oor.Minimal height is 8” (20 cm) from
the oor and maximal height is 16” (40 cm) from the oor.
Mark the 4 corners of the surface of your projection screen on the wall and the position of the Heart,
which is to be centered 8 to 12” higher than the projection
Make sure to always to always have a 16:9 ratio for the screen.
Determine the position of the various modules on the ceiling by measuring the distances from
the projection wall and install the structural suspension elements
Ideally, all modules should be centered in front of the projection wall.

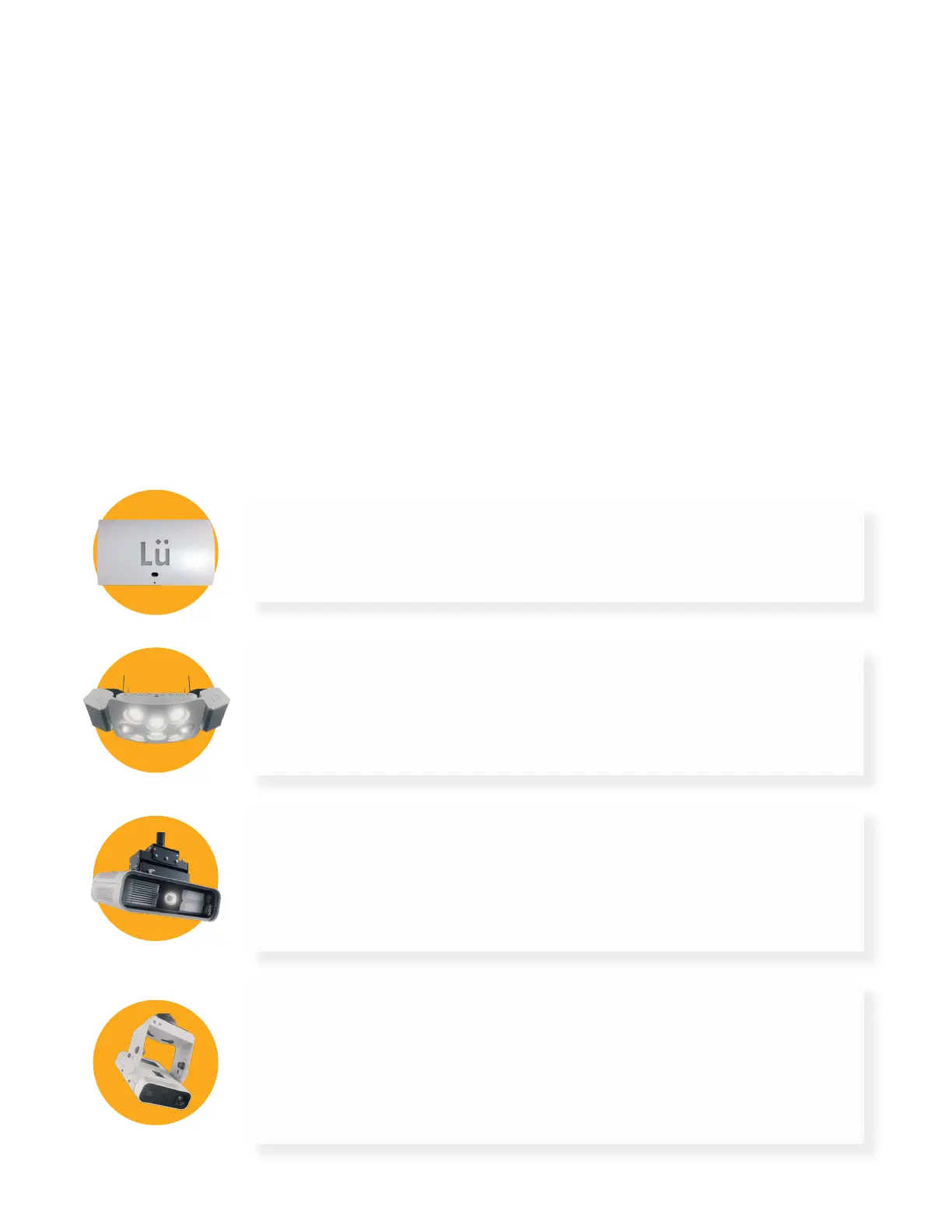

Camera module
Install at 18’ (5,5 m) from the oor and at 16’ (4,9 m) from the wall.Flexibility margin
(maximum tolerance): 12’ (3,65 m) to 18’ (5,5 m) from the oor and 15’ (4,6 m) to 16’
(4,9 m) from the wall. Maximum distance between the camera and the farthest corner
of projection should not exceed 23’ (7 m). The module can be offset ±3’ (1 m).
Projection module
Install at 20’ (6 m) from the oor and at 28’ (8,5 m) from the wallFlexibility margin
(maximum tolerance): 28’ (8,5 m) to 40’ (12,2 m) from the wall (if installed at
recommended height). The module can be offset by ±3’ (1 m).
Light & sound module
Install at 20’ (6 m) from the oor and at 16’ (4,9 m) from the wall.Flexibility margin
(maximum tolerance): 12’ (3,65 m) to 26’ (8 m) from the oor and 16’ (4,9 m) to 18’
(5.5 m) from the wall. The module can be offset by ±3’ (1 m).
Heart module
Install between 8” (20 cm) and 12” (30 cm) above the projection surface centered.
A.
B.
C.
