ND30PNET-09 - User's Manual
17
Measure
ment
Menu button
min 3 sec.
Button
Select
Buttons
- feature
selection
O.K. - confirmation Cancel -
resign
about 120 seconds. The exit from the Menu of parameter selection after
Exit
or after waiting
for about 120 seconds.

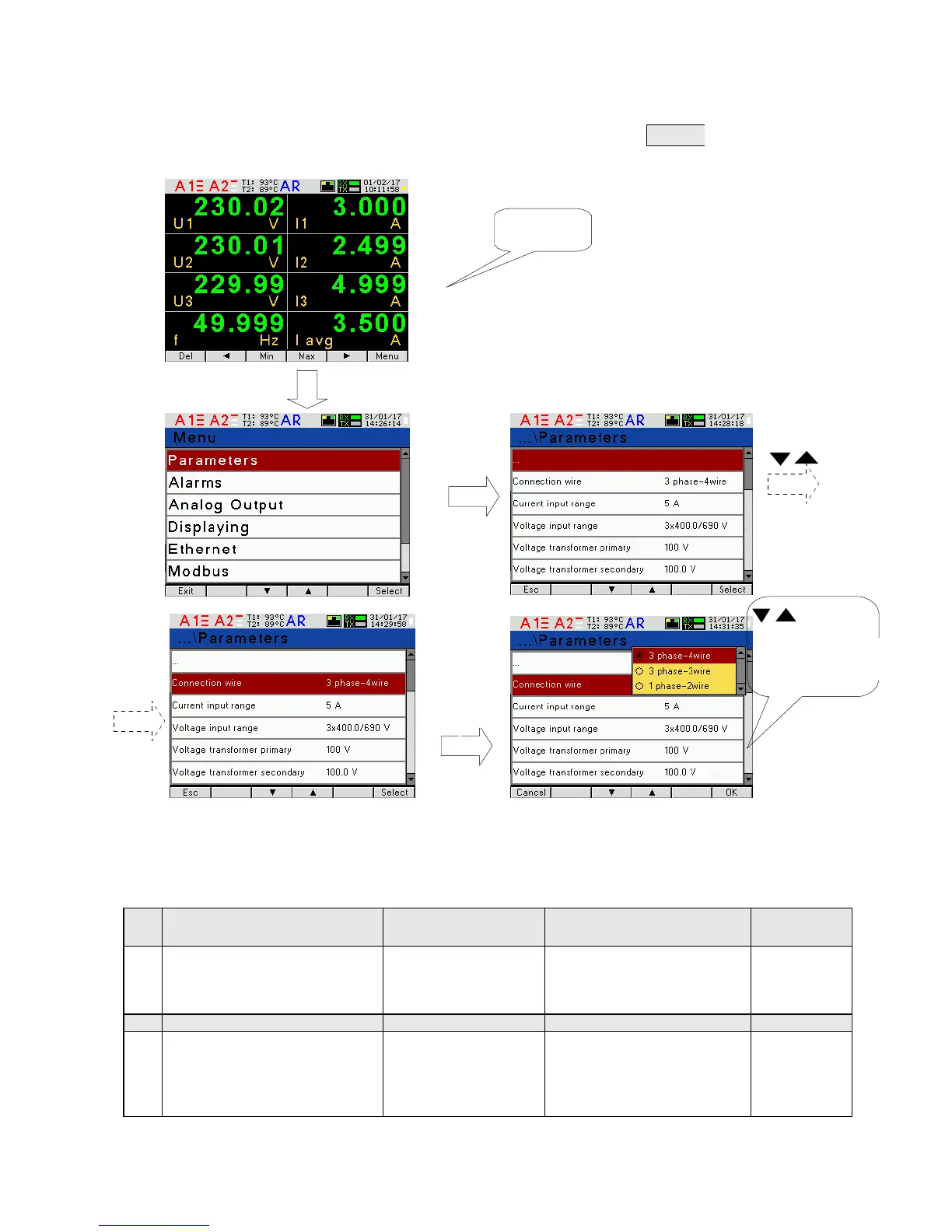

Fig.15. Screens of Parameter group
Table 1
No.
Parameter name
Characteristic /
value
Description
Default
value
1
Connection wire
3 phase- -4 wire
3 phase- -3 wire
1 phase- -2 wire
Network type
3 phase 4 wire
3 phase 3 wire
1 phase 2 wire
3phase, 4wire
2
Current input range
1A, 5A
Input range:1A or 5A
5A
3
Voltage input range
3x57.7/100 V;
3x230/400 V;
Or
3x110/190V;
3x400/690 V;
Ranges depending on
version code
3x230/400 V
or
3x400/690 V
Select
button
Measurement
O.K – confirmation
Cancel - resign
