12
4.6
Conn
ecting to a computer
and projector or monitor
simult
aneously
Press [SOURCE] button to swit
ch the image source.

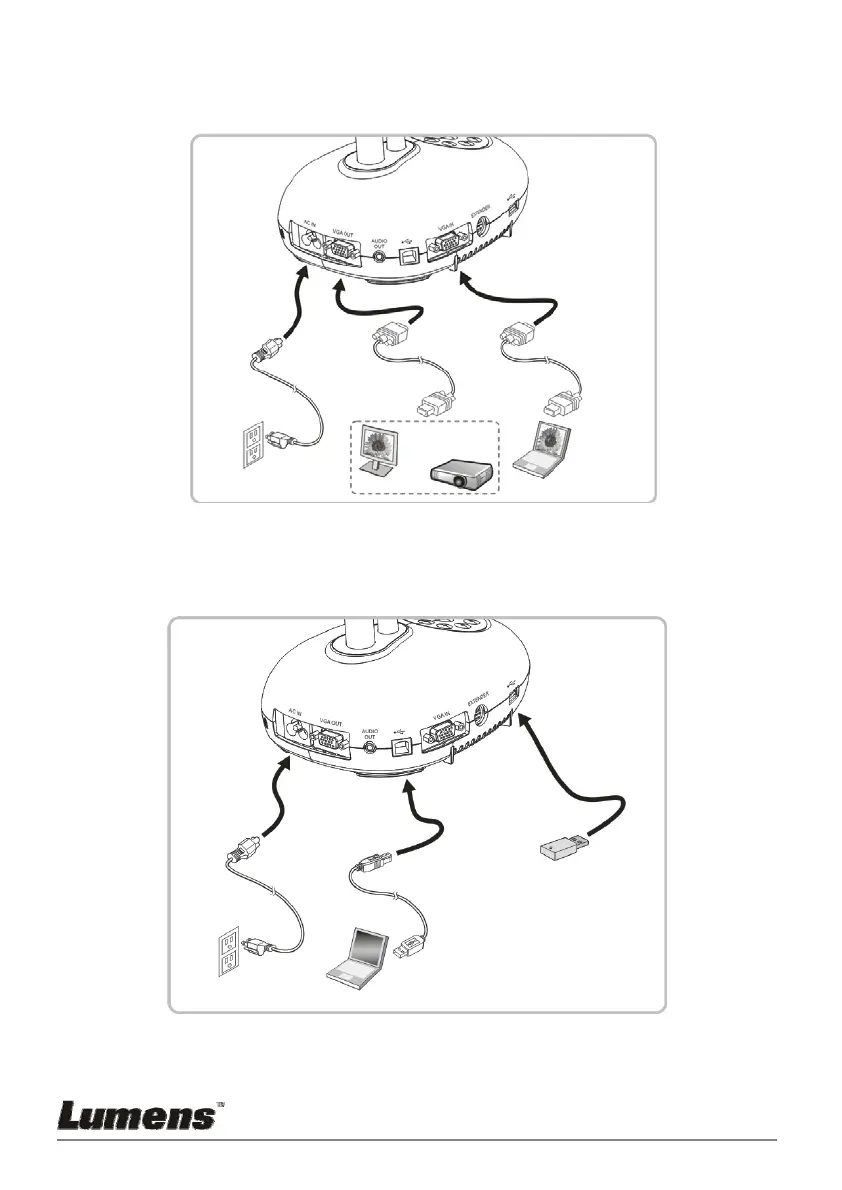

4.7
Connecting to a computer
and USB disk simult
aneously
<Note> Connected to a computer and
turned off, the Document Camera
is just regarded as an external storag
e device.
Computer
USB cable
USB disk
Power cord
AC outlet
VGA cable
Computer
Monitor or
projecto
r
VGA cable
Power cord
AC outlet
12
