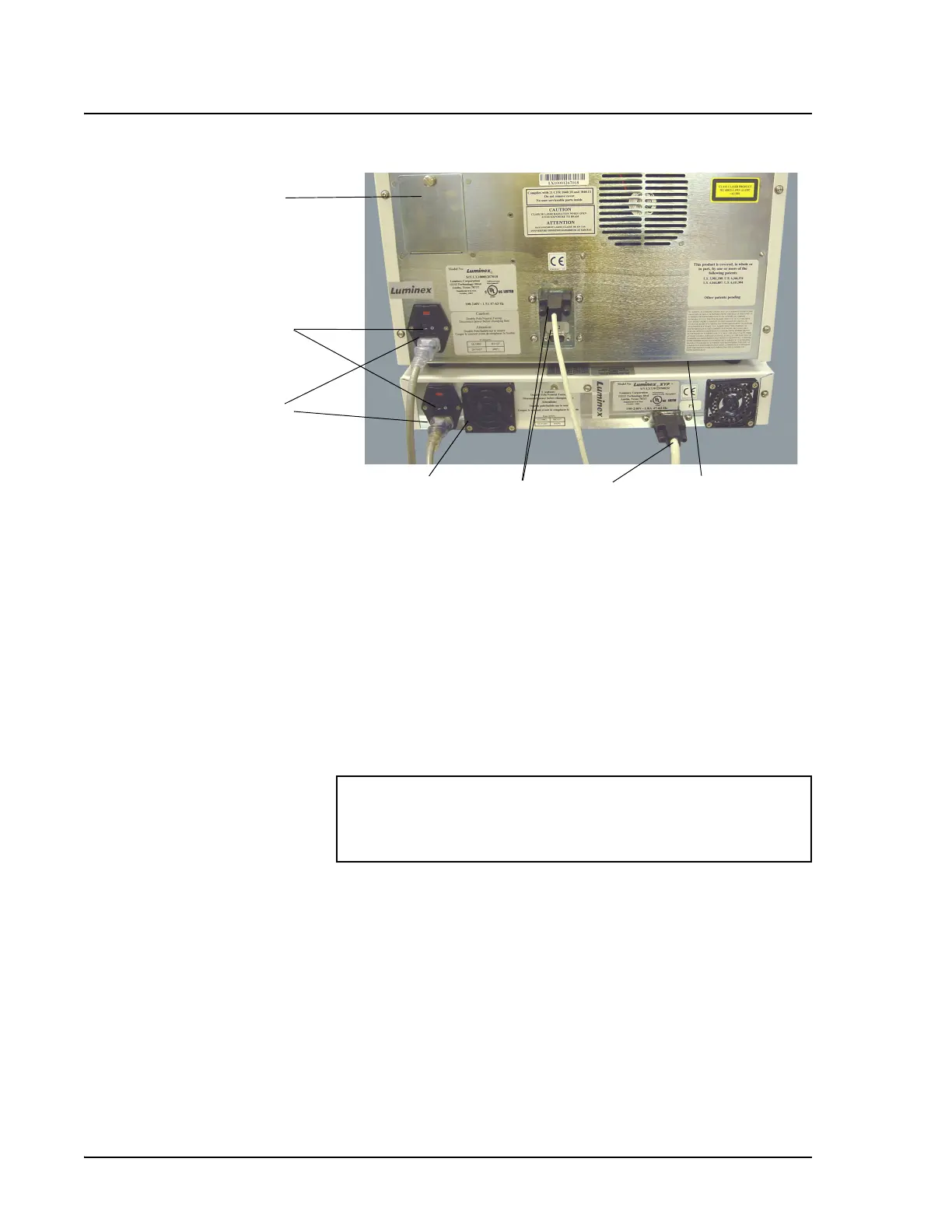

Figure 1 Back of the Luminex 200 Analyzer and Luminex XYP
Instrument
Fluidics
Luminex
Instrument Sample
Probe
A stainless steel sample probe acquires the sample.
Cheminert
®
Fitting This fitting attaches the sample probe to the sample tubing.
Disconnect this fitting when you remove the sample probe. See
Figure 2.
5 7
4
3
2
1
6
1. Air intake filter access door 5. Communication Ports (DB9)
2. Power Switch 6. XYP Communication Port (DB9)
3. Power Input Module 7. Analyzer ventilation filter
(on bottom of analyzer)
4. XYP Ventilation Filter
Warning: During operation, this system contains exposed moving
parts that can result in a puncture hazard. Risk of personal injury
is present. Keep hands and fingers away from the sample probe.
The shield should be in place.

Luminex 200 Specifications

General

Power Requirements	100-240 VAC, 50/60 Hz
Dynamic Range	3.5 logs
Number of Analytes	Up to 100
Software	xPONENT
Application	Immunoassays, Nucleic Acid Detection, Enzyme Assays
Technology	xMAP (Multi-Analyte Profiling)
Bead Types	Color-coded microspheres
Lasers	2 (532 nm and 635 nm)
Assay Types	Immunoassays, nucleic acid assays, enzyme assays
Sample Volume	12.5 - 50 µL
PMT Detectors	Yes
