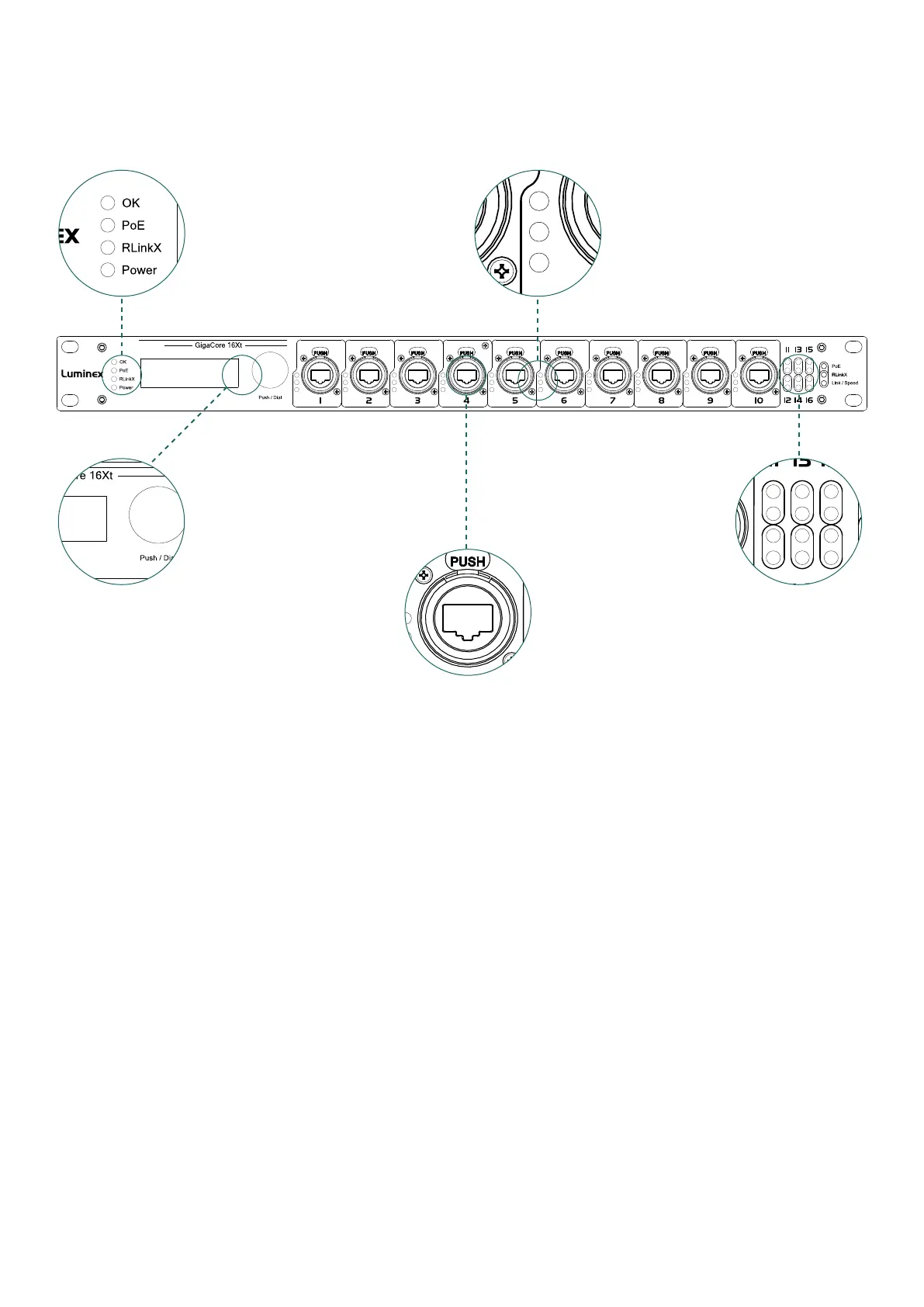

Front panel (GigaCore 16Xt)
■ 10 x 10/100/1000Mbps shielded Neutrik Ethercon connector
■ 4 x LED for switch status
■ 3 x LED per port for Ethercon front port status
■ 2 x LED per port for Ethercon rear port status
■ 1 x display (16Xt only)
■ 1 x Jog (16Xt only)
LED indication of switch status :
- OK LED
- PoE sourcing
- RLinkX
- Power
Front port status :
- PoE
- RLinkX
- Link speed
Rear port status :
- RlinkX
- Link speed
Display + jog
(16Xt only)
10/100/1000Mbps
shielded Neutrik
Ethercon port

Luminex GigaCore Series Specifications

General

PoE	Available on select models (PoE, PoE+, PoE++)
Management	CLI
VLAN	Yes
Cooling	Fanless or with fans (depending on model)
Mounting	Rack-mountable (depending on the model)
Dimensions	Varies by model (see individual datasheets)
Operating Temperature	0°C
Storage Temperature	-20°C to 70°C
Model	GigaCore Series
