Luminex GigaCore Series User Manual

15
10/100/1000Mbps
shielded Neutrik
Ethercon port
RS232 port
PowerCon True1 for
redundant power supply
Slots for rugged Type
bre connector

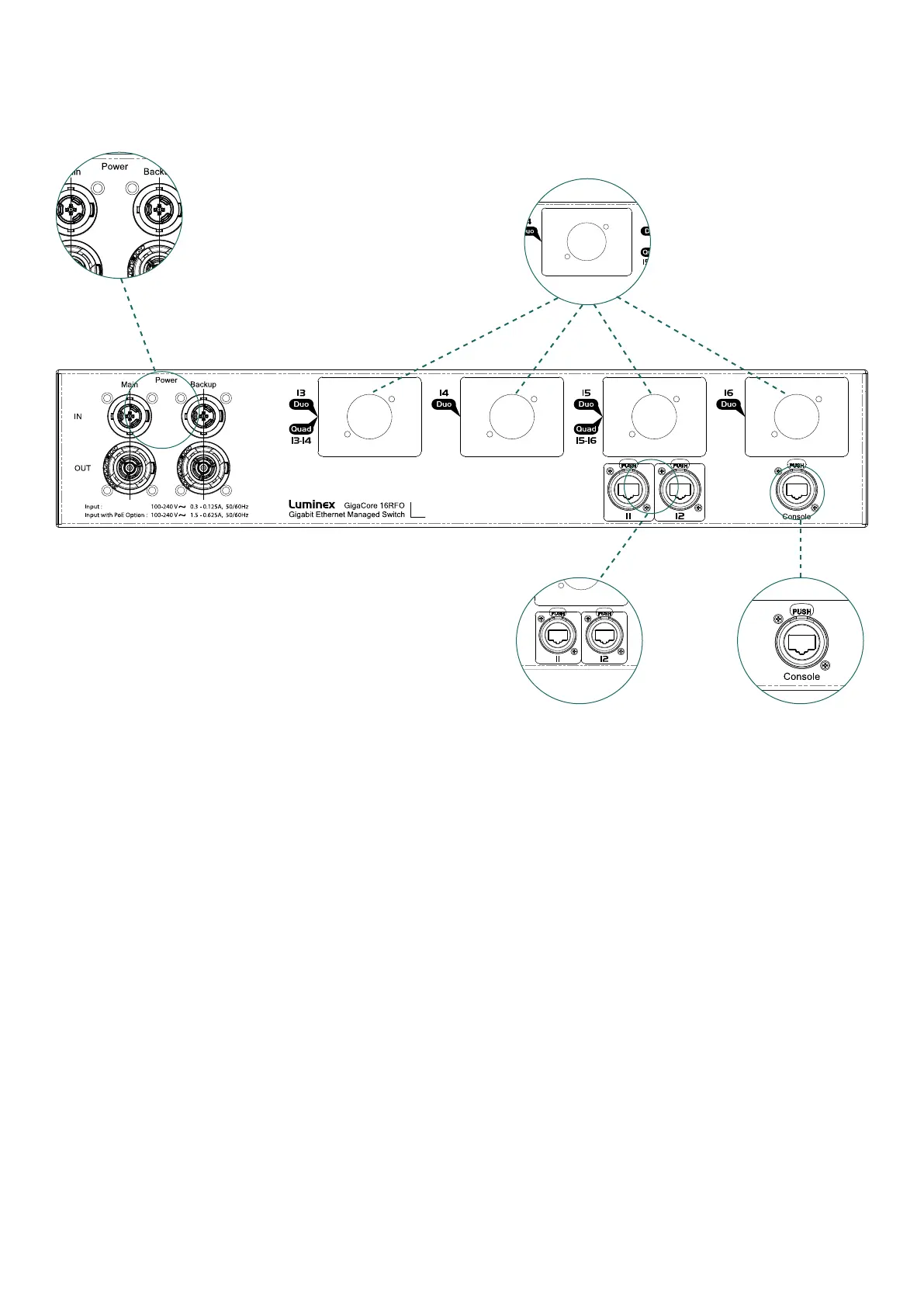

Rear panel (GigaCore 16RFO)
■ 2 x 10/100/1000Mbps shielded Neutrik Ethercon connector
■ 4 x slots for D type rugged bre connectors
■ 1 x Serial console port on RJ45
■ 2 x Redundant fan (on the side of the unit). In the unlikely of a fan failure, the other fan will switch to 100%, so one fan
can manage the cooling of the unit. Fans run at a minimum of 30%
■ 2 x Neutrik PowerCon True1 IN/OUT connector

Luminex GigaCore Series Specifications

General

PoE	Available on select models (PoE, PoE+, PoE++)
Management	CLI
VLAN	Yes
Cooling	Fanless or with fans (depending on model)
Mounting	Rack-mountable (depending on the model)
Dimensions	Varies by model (see individual datasheets)
Operating Temperature	0°C
Storage Temperature	-20°C to 70°C
Model	GigaCore Series
