Condition 1: Unit is currently running
Condition 2: Prole stored in slot 1 needs to be locked through the utility menu (see “Default Prole” on page 17)
Hold the reset button at the rear of the unit for at least ve seconds to see the four status’ LED blinking green. If you
release the button while the status’ LED are blinking green, the unit will reload the prole stored in slot 1.
If you wait an addtional 5 seconds, the status’ LEDs will blink red, to provide you with a reset.
Releasing the reset button while the LEDs are blinking red will reset the unit.
Be aware that releasing the reset button during the rst 5seconds before LEDS blink green will cancel operation.
Be aware that releasing the reset button during the 5seconds after LEDS blink red will cancel operation.
Hold the
reset button
Release the button =
Reload default
Release the button =
Reset

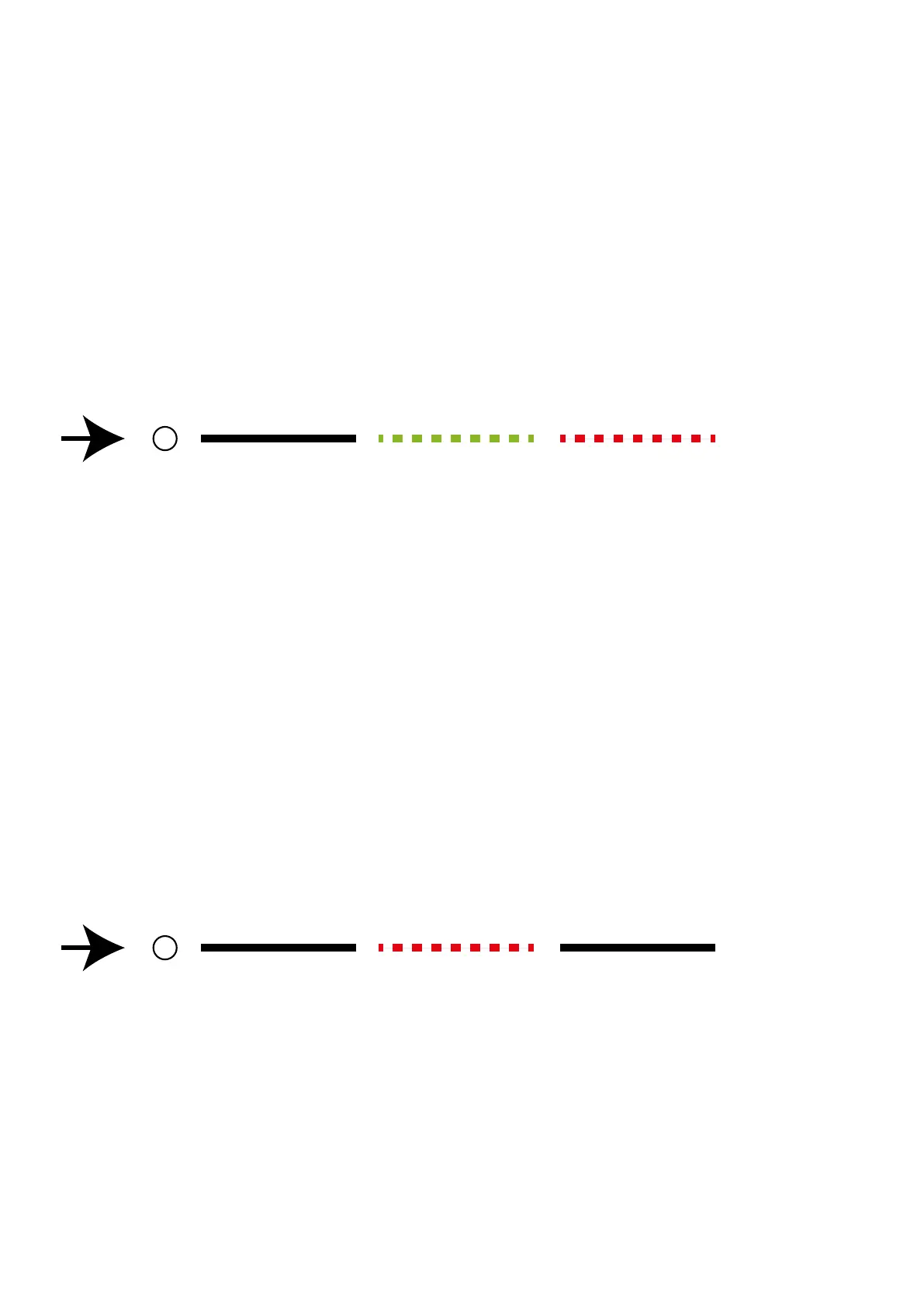

5s Timing
Function
5s5s
GREEN Blink RED Blink
Condition 1: Unit is o
Hold the reset button while connecting the unit to mains. After few seconds, the four status’ LEDs will start blinking red.
Releasing the reset button while the LEDs are blinking red will factory reset the unit.
Be aware that releasing the reset button before LEDs blink red will cancel operation.
Be aware that releasing the reset button after LEDs blink red will cancel operation.
Hold the reset button
while powering the unit
Release the button =
Factory Reset
Release the button =
Cancel
Timing
Function
5s18s
RED Blink
Reload Default
Factory Reset

Luminex GigaCore Series Specifications

General

PoE	Available on select models (PoE, PoE+, PoE++)
Management	CLI
VLAN	Yes
Cooling	Fanless or with fans (depending on model)
Mounting	Rack-mountable (depending on the model)
Dimensions	Varies by model (see individual datasheets)
Operating Temperature	0°C
Storage Temperature	-20°C to 70°C
Model	GigaCore Series
