Luminex GigaCore Series User Manual

- Serial console port (14R and
16Xt only)
- Extension port (16Xt only)
13
- IEC inlet
- Fuse holder
10/100/1000Mbps
shielded Neutrik
Ethercon port with
RLinkX and Link/Speed
LED.
Backup power inputs
(14R and 16Xt only):
- Main Power
- PoE Supply
Redundant fans : both fans will
run at 50% when processor
reaches 100°C. If one fails, the
other will switch to 100%,
so one fan can manage the
cooling of the unit (14R and
16Xt only).

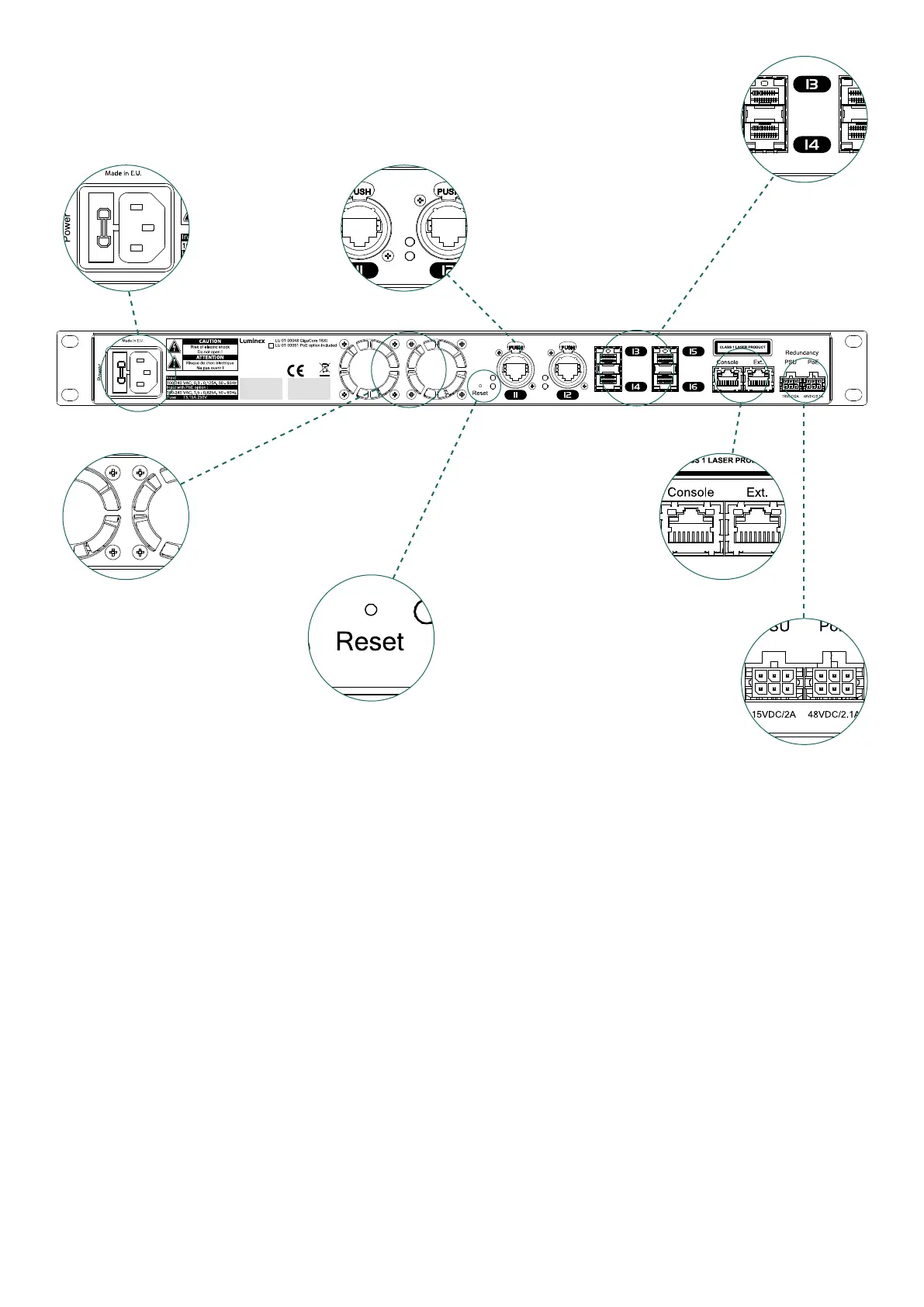

Rear panel (GigaCore 16Xt)
■ 2 x 10/100/1000Mbps shielded Neutrik Ethercon connector
■ 2 x LED per port for Ethercon port status
■ 2 x SFP cage for Mini-Gbic compliant transceiver (14R only)
■ 4 x SFP cage for Mini-Gbic compliant transceiver (16Xt only)
■ 1 x Serial console port on RJ45 (14R and 16Xt only)
■ 1 x I2C Extension port on RJ45 (16Xt only)
■ 1 x Mollex Micro-t 6 pin connector for backup power supply input (14R and 16Xt only)
■ 1 x Mollex Micro-t 6 pin connector for backup PoE supply input (14R and 16Xt only)
■ 2 x Redundant fan (14R and 16Xt only)
■ 1 x IEC inlet + Fuse holder
■ 1 x Reset button (clip hole)
Reset button
(Clip hole)
SFP cages for
Mini-GBIC (SFP)
compliant transceiver
(14R and 16Xt only)

Luminex GigaCore Series Specifications

General

PoE	Available on select models (PoE, PoE+, PoE++)
Management	CLI
VLAN	Yes
Cooling	Fanless or with fans (depending on model)
Mounting	Rack-mountable (depending on the model)
Dimensions	Varies by model (see individual datasheets)
Operating Temperature	0°C
Storage Temperature	-20°C to 70°C
Model	GigaCore Series
