Lust SMARTDRIVE VF1205M - Electrical Connections; Connection Plan Overview

2-1
2 Electrical Connections

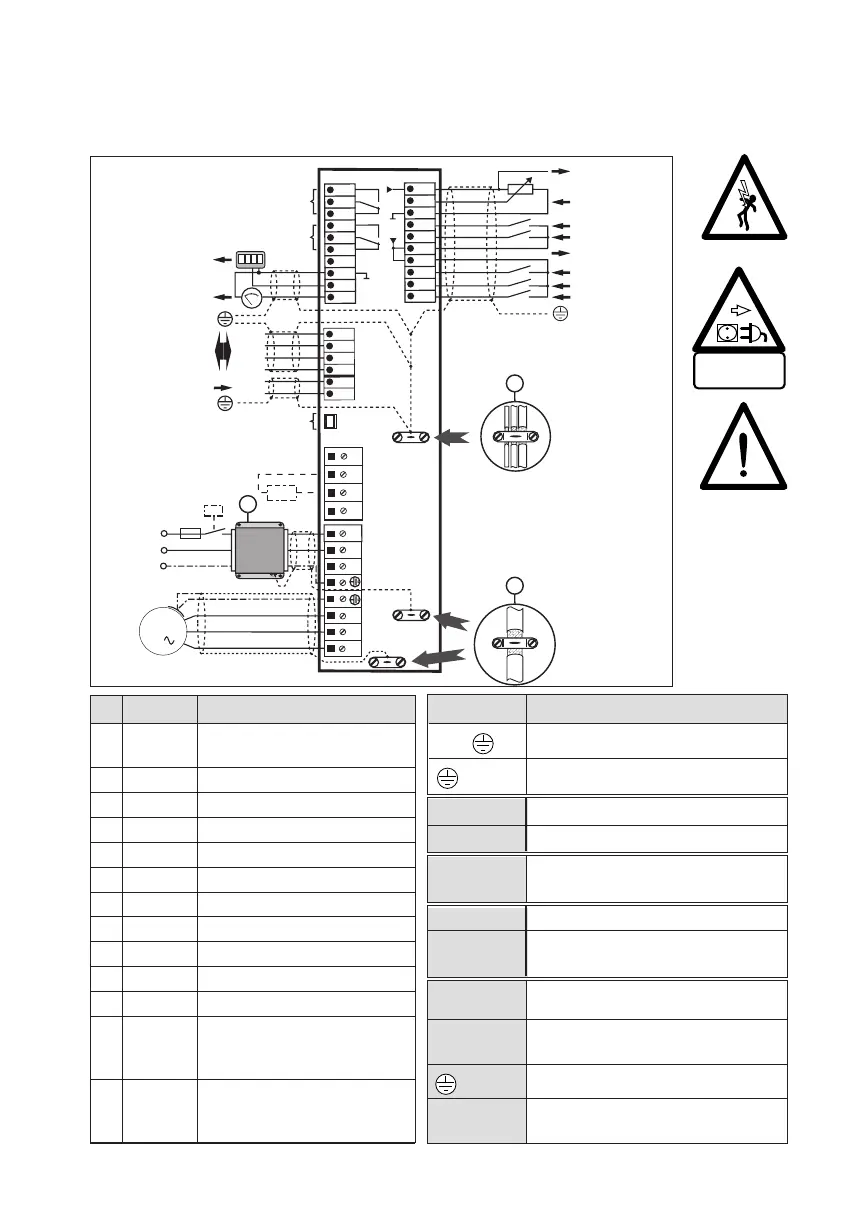

2.1 Connection plan
wait 2 minutes
after mains off
VF1205M
VF1207M
K1 Example of mains protection
connection
Y Example of connection for ext.
mains filter
Ground line
X EMC ground clamps for easy
installation of cable screen
X1 Power connections
L1,N, Mains connection 1 x 230 V
U,V,W Motor connection 3 x 230 V
X2/ + , - Connection for DC-link coupling
X2/ RB Connection for ext. braking resistor
X3 Socket for
control unit KEYPAD KP100
X4/51, 52 Motor PTC connection
1)
X5/ Connection terminal for
47,48,49,50 interface RS485
1)
or RS232
1)
X6 Des. Control connections
21 UR Ref. voltage 10 V
for ref. pot.
22 FSIN Freq. ref. input
23 Ground Control unit ref. point
24 STR Start clockwise input
25 STL Start counter-clockwise input
26 UV Control voltage 24 V DC
29 SOUTF Digital freq. output
33 S1IND Prog. digital input
34 S2IND Prog. digital input
35 S3IND Prog. digital input
36 SOUTA Prog. analog output
41 S1OUT Break contact of relay 1
42 Cent. spring of relay 1
43 Make contact of relay 1
44 S2OUT Break contact of relay 2
45 Cent. spring of relay 2
46 Make contact of relay 2
1) Terminal assignment depends on design ordered
Attention:
Starting torque
of terminal X1
and X2
max. 0,4-0,5 Nm
-
RB RB +
41
42
43
44
45
46
n.c.
23
29
36
21
22
23
24
25
26
33
34
35
26
47
48
49
50
51
52
-
+
SOUTA
S2OUT
S1OUT
SOUTF
FSIN
UR
+24V
+10V
STR
STL
S1IND
S2IND
S3IND
V
DD
GND
A
B
RS485
1)
RB1
1)
KP100
PTC
1)
U
V
X6
X6
X5
X4
X3
X2
X1
001
W V U
N
L1
M
3
K1
SI
L1
N
PE
1 x 230VAC
Y
X
X
