Lust SMARTDRIVE VF1205M - LCD-Display

4-3

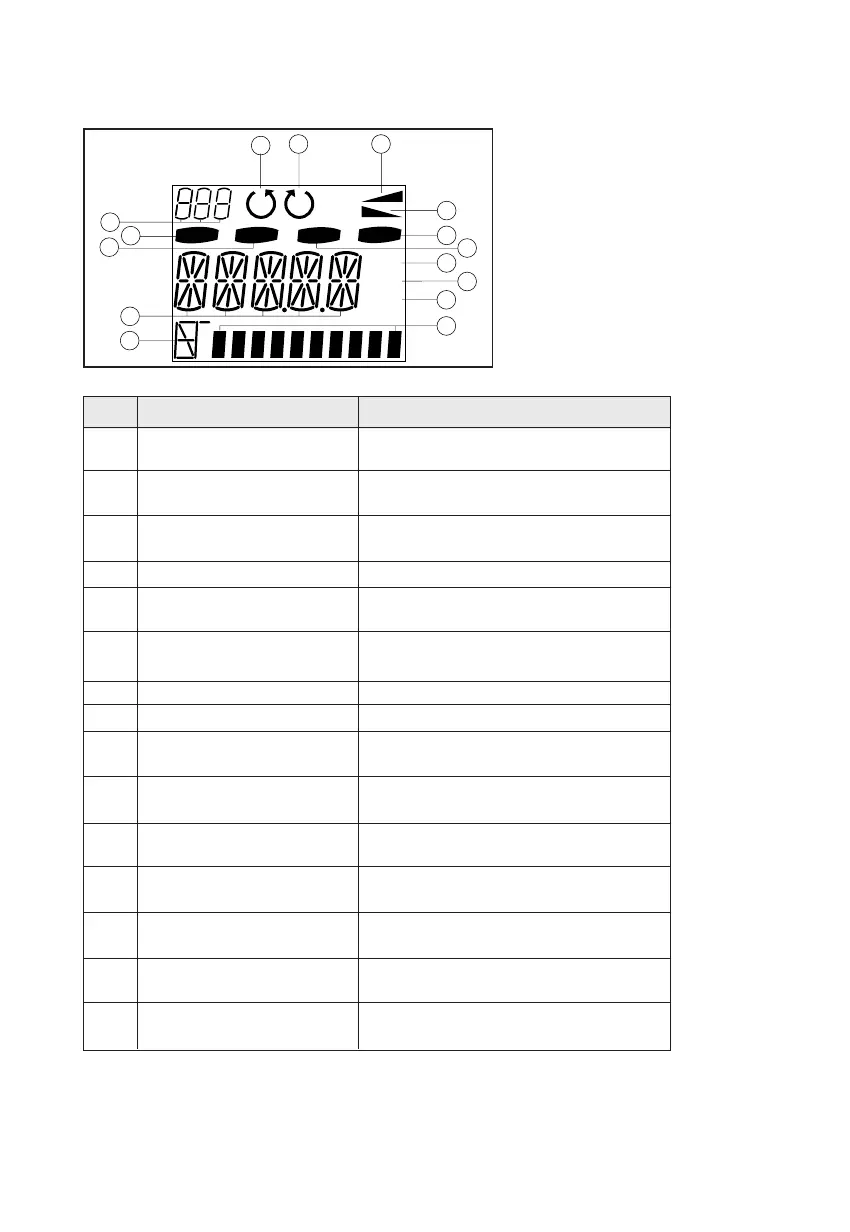

4.2.3 LCD- display
PARA CTRL CARDVAL
%VA
h
min
-1
Hz/s
12
13
14
20
21
8
9 10
11
15
16
17
18
19
22
Item Designation Function
8 Counter-clockwise rotation Control display for output rot.
field, counter-clockwise active
9 Clockwise rotation Control display for output rot.
field, clockwise active
10 Acceleration ramp Control display, during
acceleration active
11 Braking ramp Control display, active during braking
12 3 figure numerical display 7 segment display for actual values,
Parameter No.
13 VAL menu Shows actual values, e.g. frequency,
voltage, current
14 PARA menu Changing parameter setting
15 CTRL menu Controlling motor via K
EYPAD
16 CARD menu Loading/saving device setting
with the SMARTCARD
17 Phys. unit at item 20 shows %, V, A, VA with
automatic assignment
18 Phys. unit at item 20 displays h, min
-1
with
automatic assignment
19 Phys. unit at item 20 displays Hz, s, Hz/s with
automatic assignment
20 5 figure numerical display 15 segment display
for parameter names and values
21 Bar graph designation displays formula letters or
physical unit for item 22
22 10 figure bar graph shows parameter values, frequency,
display voltage, apparent or effective current
