3.4 Motor/inverter-overload protection (I
∗∗
∗∗
∗ t monitoring)
The I∗t monitoring provides electronic motor protection and inverter protection
against high thermal loading. The trigger characteristic can be taken from
the diagram. The details relate to an output frequency of 50 Hz.
It should be noted that with continuous operation with frequencies
< 40 Hz the motor requires forced ventilation.
Rule of thumb:
An overload phase of 1 min. is possible within a margin of 10 min.s with
a DC current of I = 1,5∗I
N
(150% overload)

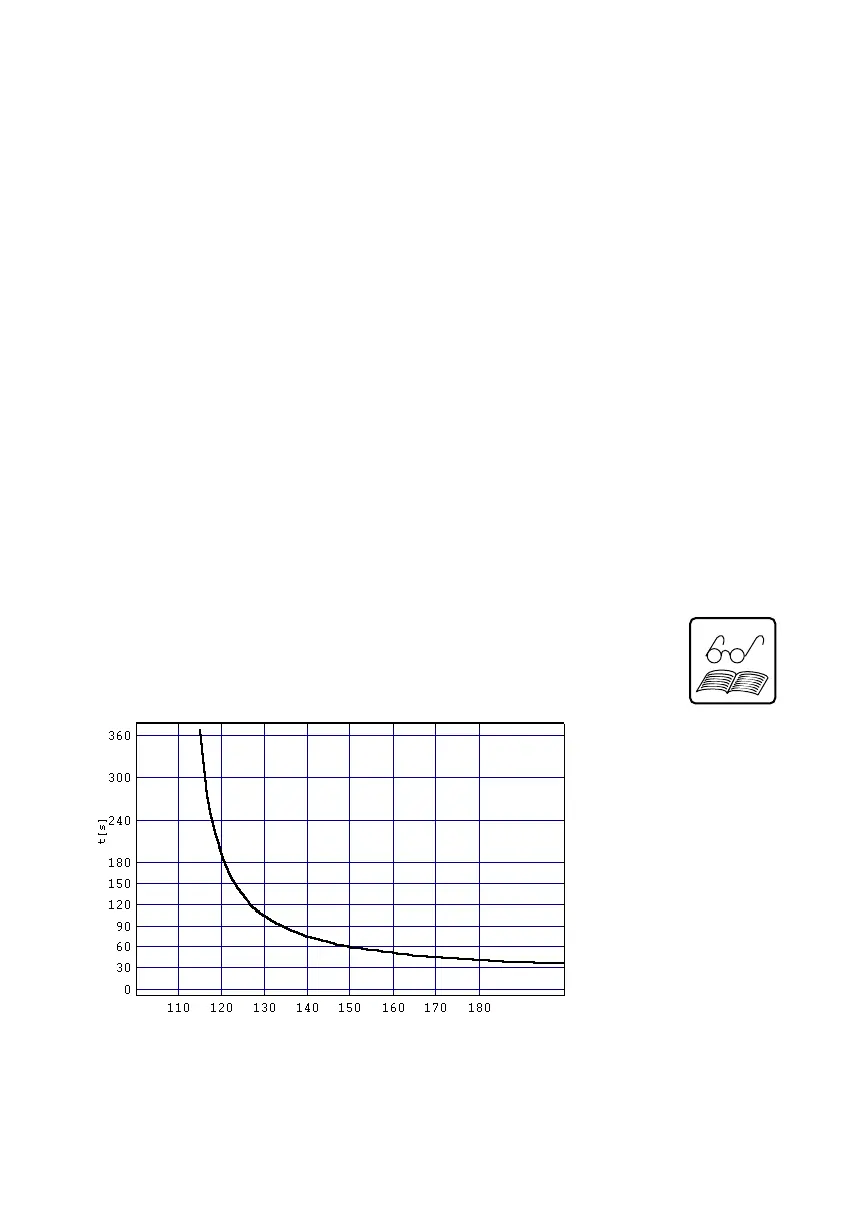

Diagram:
I[ % of TRIP]
