2-19

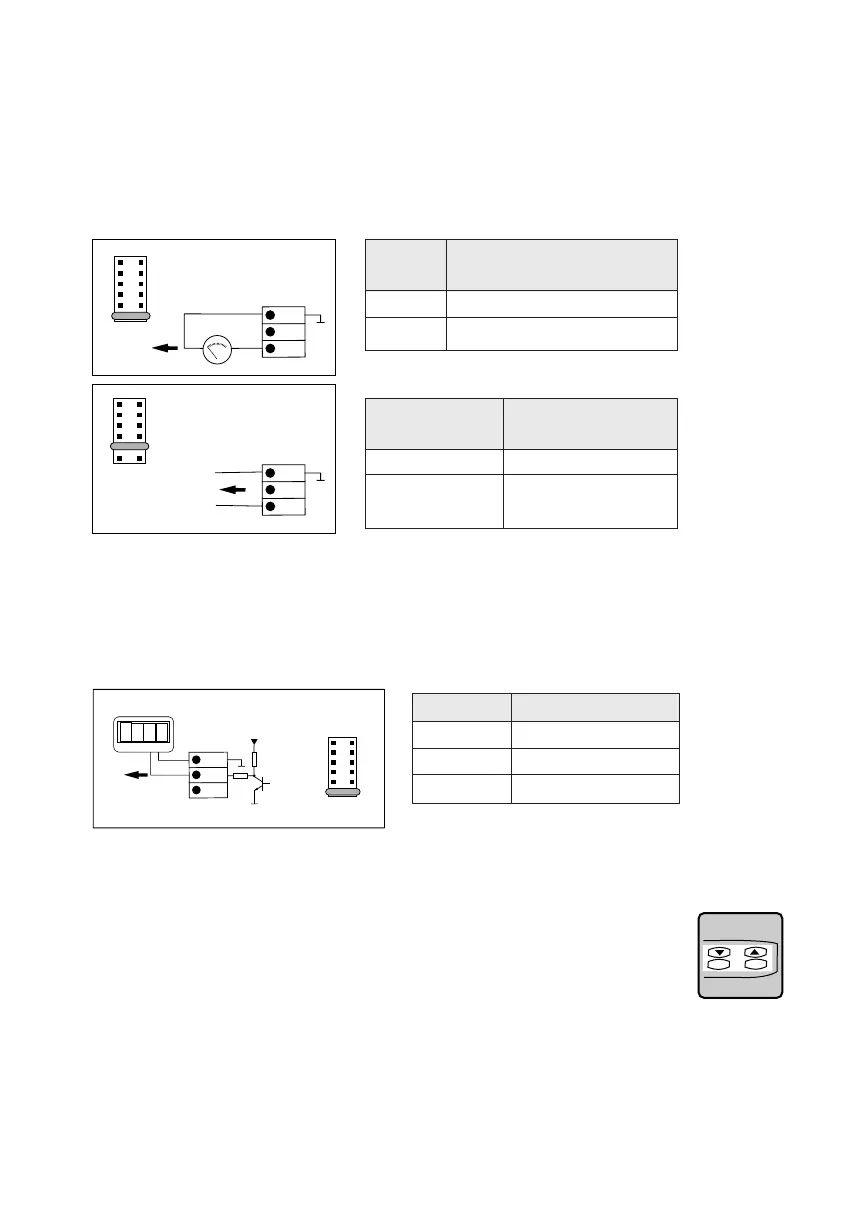

SOUTA analog output
The output operates in the basic setting as an analog frequency output. It
delivers a direct voltage, which is proportional to the output frequency of
the inverter.
SOUTA Explanation
(J1) (61-SOUTA = 9)
0 V F = 0 Hz
10 V Inverter start, F = FMAX
SOUTA Explanation
(J2) (61-SOUTA = 9)
PWM = 0 % F = 0 Hz
PWM = 100 % Inverter start,
F = FMAX
23
29
36
-
+
SOUTA
X6/1
J1
J6
1)
stop
return
start
enter
23
29
36
SOUTF
100
X6/1
24 V
J1
J6
1)
SOUTF digital frequency output
The output SOUTF supplies 24 V impulses. 6 LOW impulses are issued
per 1 Hz rotary field frequency at the frequency output. At stand still, the
output is at +24 V.
FSIN SOUTF
< 5 Hz 30 Hz constant
5...260Hz 30...1560Hz linear
> 260 Hz 1560 Hz constant
1)
Position of jumpers (J1...J6) at device top side
(see layout plan Chapter 1).
23
29
36
SOUTA
(PWM)
X6/1
J1
J6
1)
Programming:
The outputs SOUTA and SOUTF can be programmed with KEYPAD or via
the interface to further functions. For both outputs setting is undertaken
with the parameter 61-SOUTA. In addition the analog output SOUTA can
be scaled with the parameter 69-KOUTA.
Factory setting: 61-SOUTA = 9
69-KOUTA = 100%
For further information see parameter description
