Operating the Luxor
®
ZD/ZDC
ACTIVITY Screen
Aer ve minutes of inactivity, an ACTIVITY screen will appear on the
LCD screen if the lights are running. The wait time is reduced to only
ve seconds when the current screen is the HOME screen.
The ACTIVITY screen displays:
• All currently running groups with their intensity level. Three
groups are shown in Figure 2, with a maximum of six groups
viewable at any given time. Turn the clickable scroll wheel to
show additional groups if more than six are in operation.
• Current Time
• System Load in Percent and Amps
No selections can be made on this screen; it is simply an activity
display. Press the HOME button to return to the HOME screen.

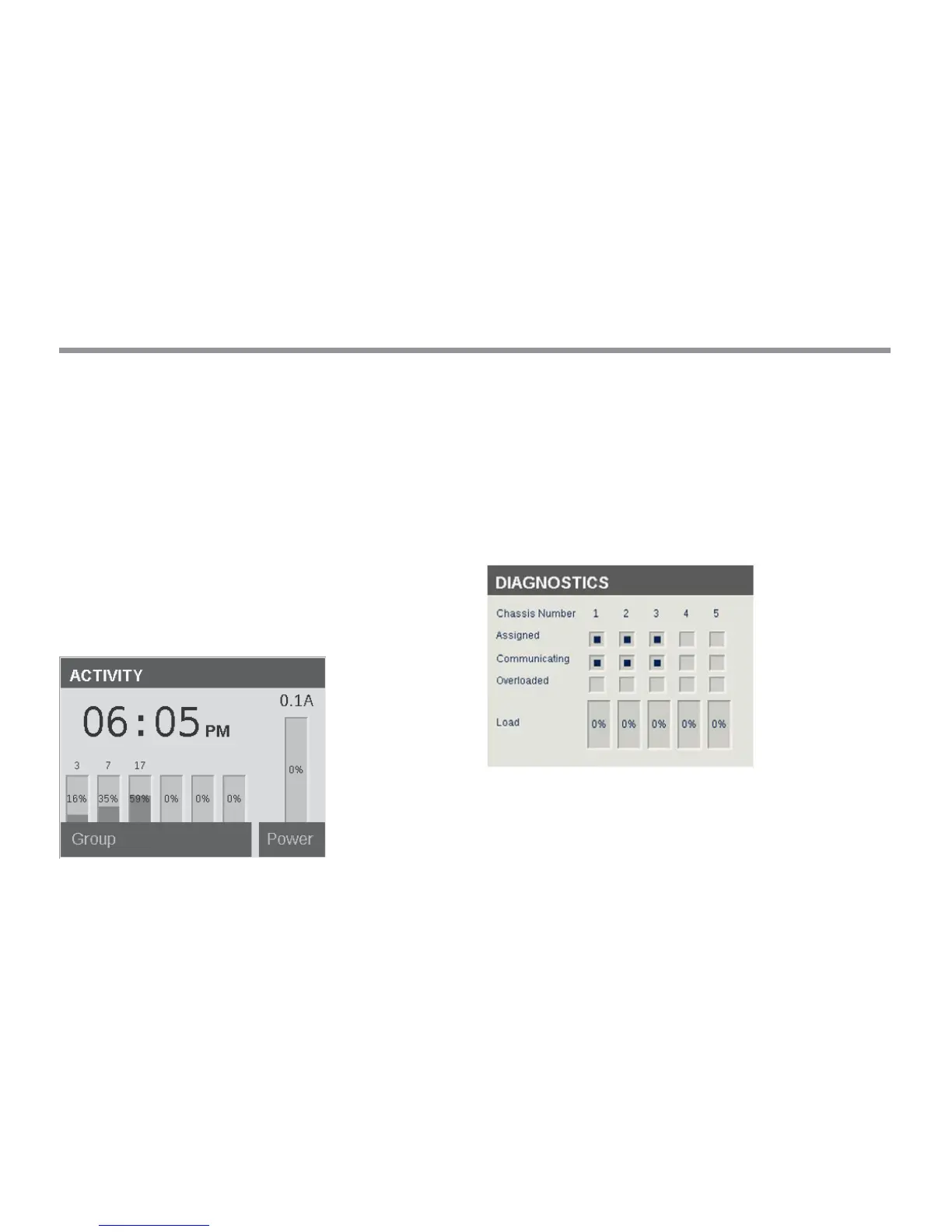

Figure 2: Activity Screenshot
DIAGNOSTICS Screen
Assigned
• Controller assigned
Communicating
• Controller communicating
Overload
• Controller overload indication
Load Status
• Controller load in percent
Figure 3: Diagnostics Screenshot
