6
Installing the Luxor
®
ZD/ZDC Transformer

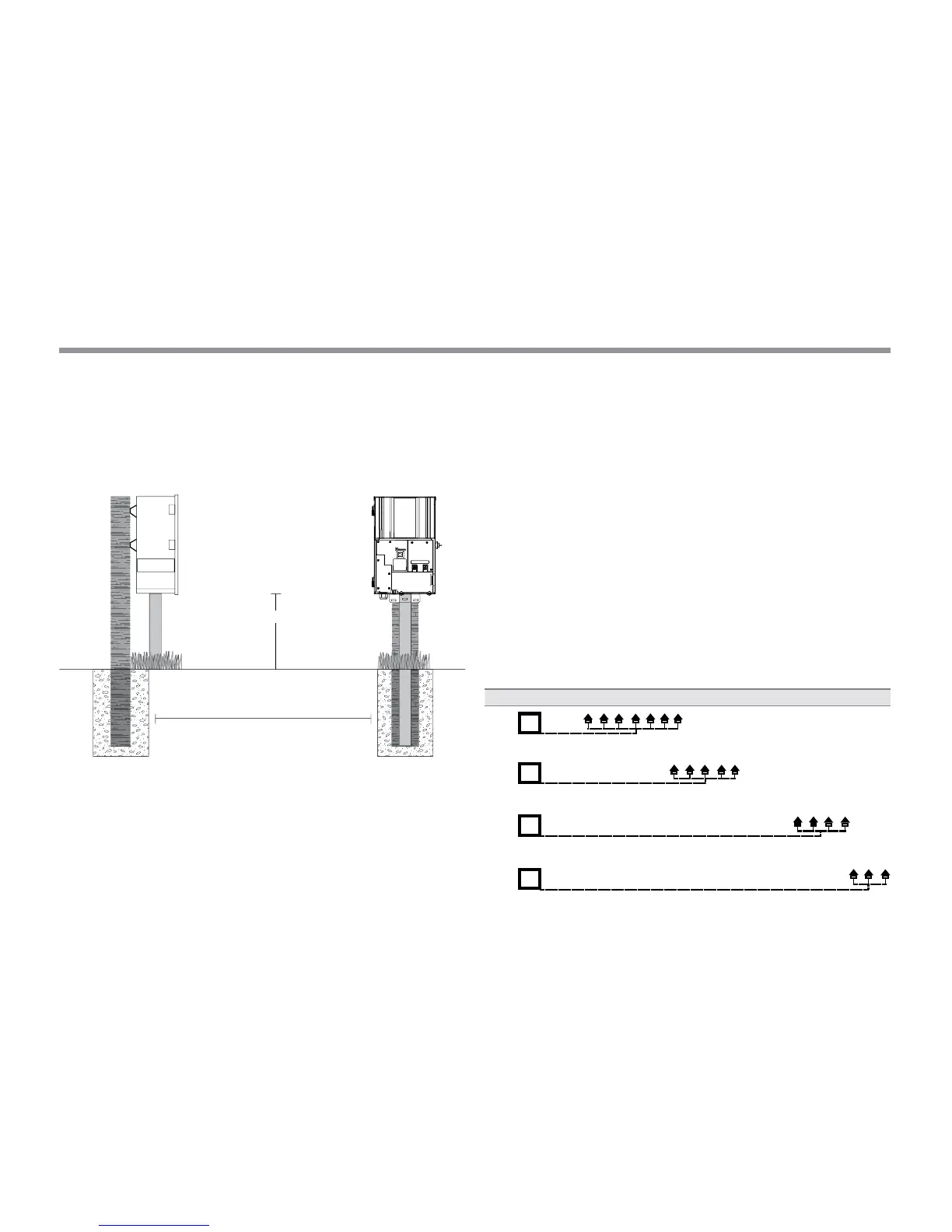

Post Mount Installation: Install pressure treated 4" x 4" x 36" (min)
post in concrete footing. Repeat wall mount installation instructions
from page 5, without the use of wall anchors.
•
•
•
•
For additional information regarding installation techniques, visit
www.fxl.com, and click on the Resources and Tools link.
All Luxor Series Transformers come equipped with a 5-foot,
12-gauge, 3-prong electrical power cord. Only use the Luxor power
cord in conjunction with a GFCI-protected 120 volt exterior receptacle
(or 230 volt for international/export version).
Step 3: Running Cable to the Fixtures
Once the transformer has been installed and determined all xture
locations, the next step is to run the correct size cable from the
transformer to the xtures. FX LED xtures require between 10 and 15
volts for optimal operation and longevity. This is accomplished by the
following:
1. Grouping xtures into distance zones as illustrated below. Do not
have a xture that is 10 feet away from the transformer on the
same cable run as one that is 100 feet away.
2. Use the proper cabling method for the application. Try to
center-load all cable runs when possible to minimize the voltage
dierential between xtures.
3. Use the correct size cable to accommodate voltage drop.
As a general rule of thumb, limit the wattage load per cable
run to no more than 160 watts.
LOADS PER CABLE
Add cable runs as necessary
T
T
T
T
Close-Zone 0–40'
Mid-Zone 40–80'
Far-Zone 80–120'
Out There-Zone 120–160'
12 Gauge: 160 watts max. 10 Gauge: 180 watts max. 8 Gauge: 220 watts max.
12 Gauge: 120 watts max. 10 Gauge: 140 watts max. 8 Gauge: 200 watts max.
12 Gauge: 100 watts max. 10 Gauge: 120 watts max. 8 Gauge: 180 watts max.
12
Gauge
:
60 watts max.
10
Gauge
:
100 watts max.
8
Gauge
:
160 watts max.
CIRCUITING GUIDELINES
Mounting
Brackets
1⁄" conduit 1⁄" conduit12" minimum4 x 4 post
Concrete Footing
SIDE VIEW FRONT VIEW
To Next Page
