7
Installing the Luxor
®
ZD/ZDC Transformer
Summary
For maximum light output and LED life, each luminaire should be
provided with between 10 to 15 volts.
Cable Stats
Low voltage lighting systems are typically installed using direct burial
rated stranded cable. The most common cable used is referred to
as 12/2 stranded cable. The size of cable used in wiring the lighting
system will be determined by the wattage load and length of cable
run from the transformer to the lighting xtures.
It is very important to note that all low voltage cable has a maximum
rating. Overloading cable can create a dangerous safety hazard so be
sure to choose the proper size cable for your lighting system.

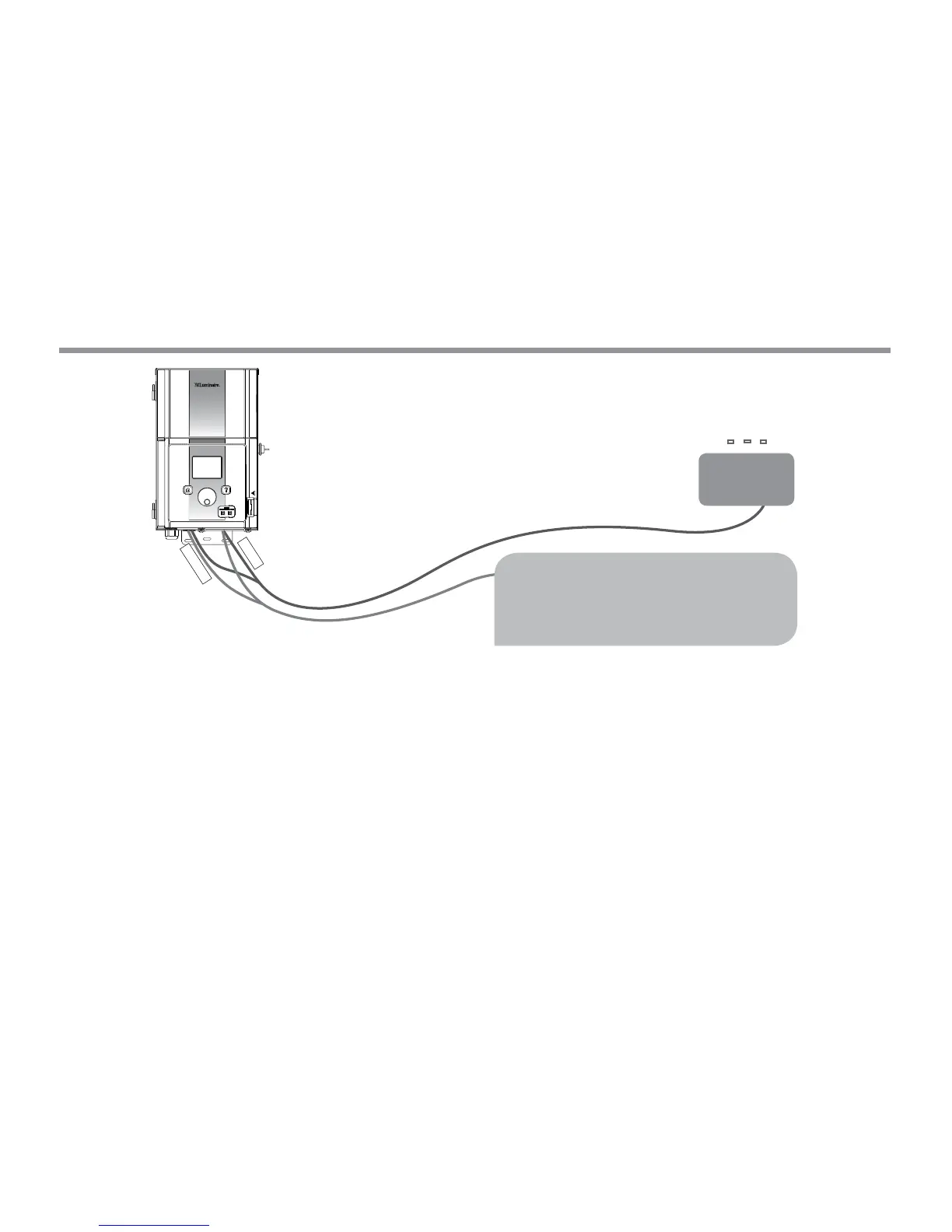

14 volt tap
Common
14 volt
Watts shown are PER 12 gauge cable. Install additional
cable runs as needed to complete project. To increase
wattage maximum, run 8 gauge or double 12 gauge
to the rst xture in the zone. Use a digital voltmeter
to ne-tune circuits.
Distant Zone
120–160'
LED 110 watt max
To Next Page
