LXNAV Nano3 - Available Cables for Nanopower

Version 2.06 February 2017
Page 12 of 44

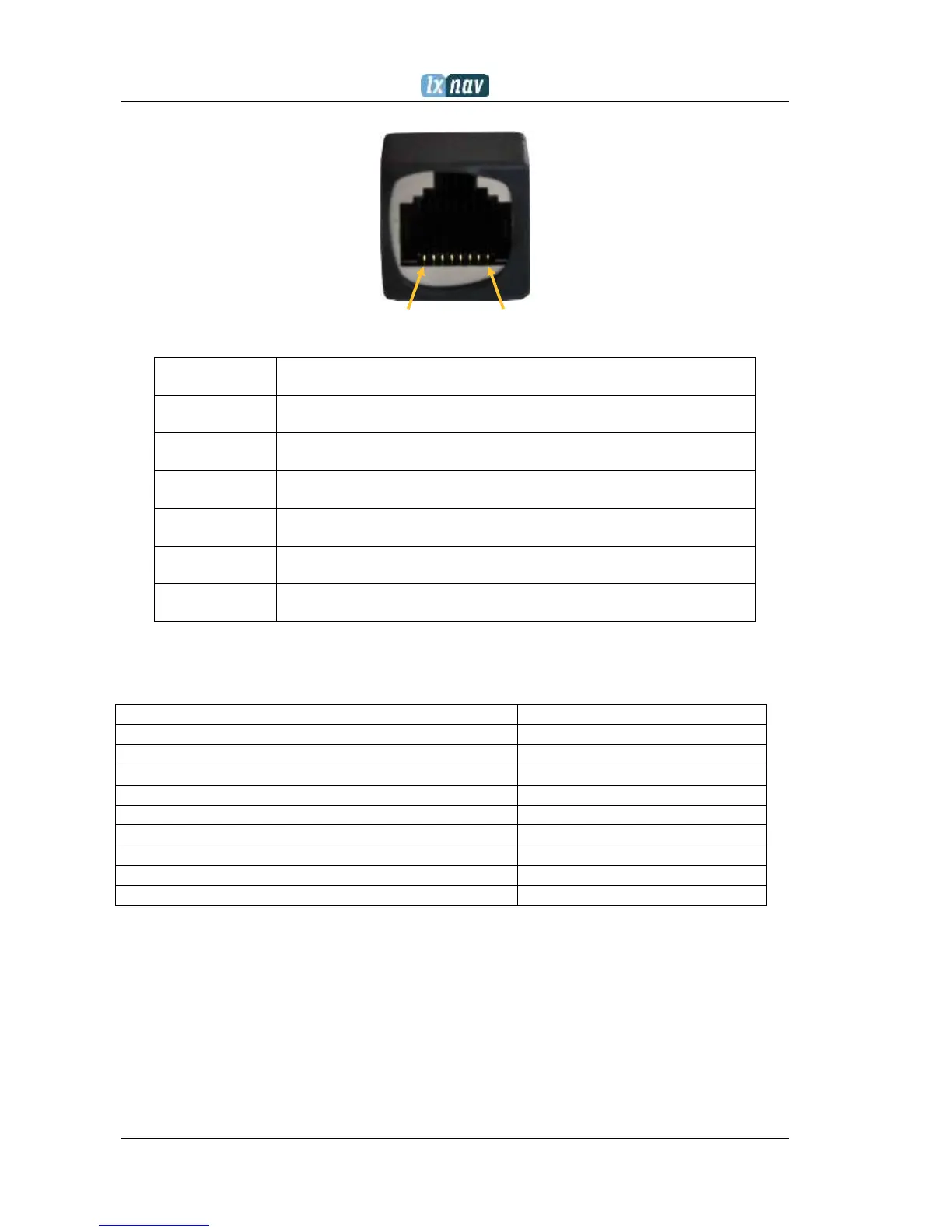

Pin description on the NanoPower RJ45 is given in the picture below.
1 2 3 4 5 6 7 8
Pin numbers
Pin number
Description
1,2
Ground
3
(output) Transmit from NANO
3
RS232 (e.g. Computer, V7)
4
(input) Receive to NANO
3
RS232 (e.g. Computer, V7)
5
(output) Transmit from NANO
3
LVTTL (e.g. Oudie, HP302)
6
(input) Receive to NANO
3
LVTTL (e.g. Oudie, HP302)
7,8
5V OUTPUT (maximum 1A)
3.6.1 Available cables for NanoPower
Device
Cable code
OUDIE
CC-NP-OUDIE1
Generic RS232 with female DB9
CC-NP-232
IPAQ 310/314
CC-NP-IPAQ310
IPAQ 38/39xx/47xx
CC-NP-38
MiniMap
CC-NP-LX
Butterfly Connect
CC-NP-BFC
Flarm
CC-NP-IGC
Nanopower for PowerFlarm
NanoPower-PF
Nanopower for Flarm
NanoPower-FL
