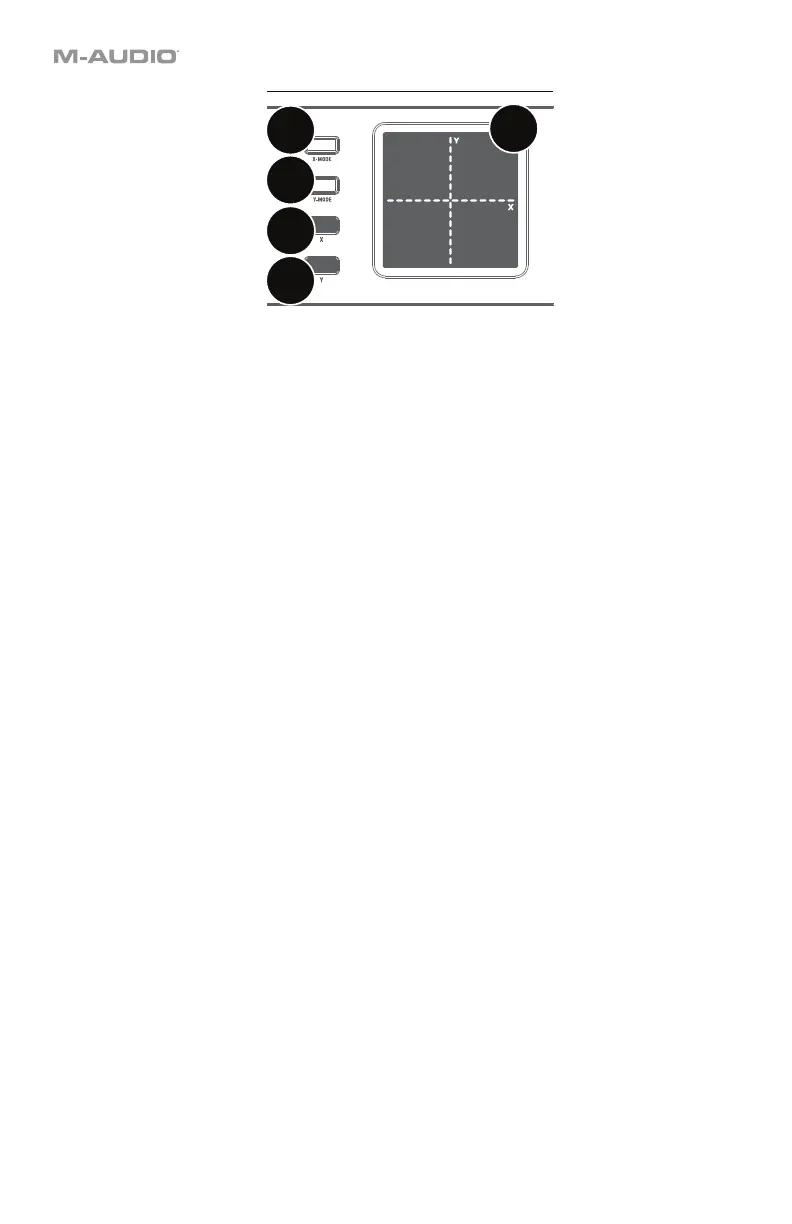

22. X-Y Pad: This touch-sensitive pad lets you control two parameters simultaneously in a
two-dimensional way (rather than a traditional one-dimensional modulation wheel). You
can assign the parameter and range of each axis, X (horizontal) and Y (vertical). This pad
can be in one of three modes as determined by the X-Mode and Y-Mode buttons.
You can also change each axis’s MIDI assignment. See Operation > X-Y Pad > Editing
Assigments to learn how to do this.
23. X-Y Buttons: Press one of these buttons to send the maximum value for the parameter
assigned to that axis.
In Edit Mode, press one of these buttons when assigning a parameter to assign it to that
axis: X (horizontal) or Y (vertical).
In HID Mode, use the X or Y button as a left-click or right-click mouse command
(respectively).
24. X-Mode / Y-Mode: Press one of these buttons to cycle through the available modes for
that axis of the X-Y pad, distinguishable by the button’s color:
Red: MIDI CC Mode (the axis is assigned to a MIDI CC number)
Pink: In MIDI Note Mode (the axis is assigned a range of MIDI notes)
Yellow: HID Mode (the axis lets you use the X-Y pad as a mouse/trackpad)
Learn more about these modes in Operation > X-Y Pad > Modes.
