MAINTENANCE/SERVICE
Form 169304 135 Model Year - 2009

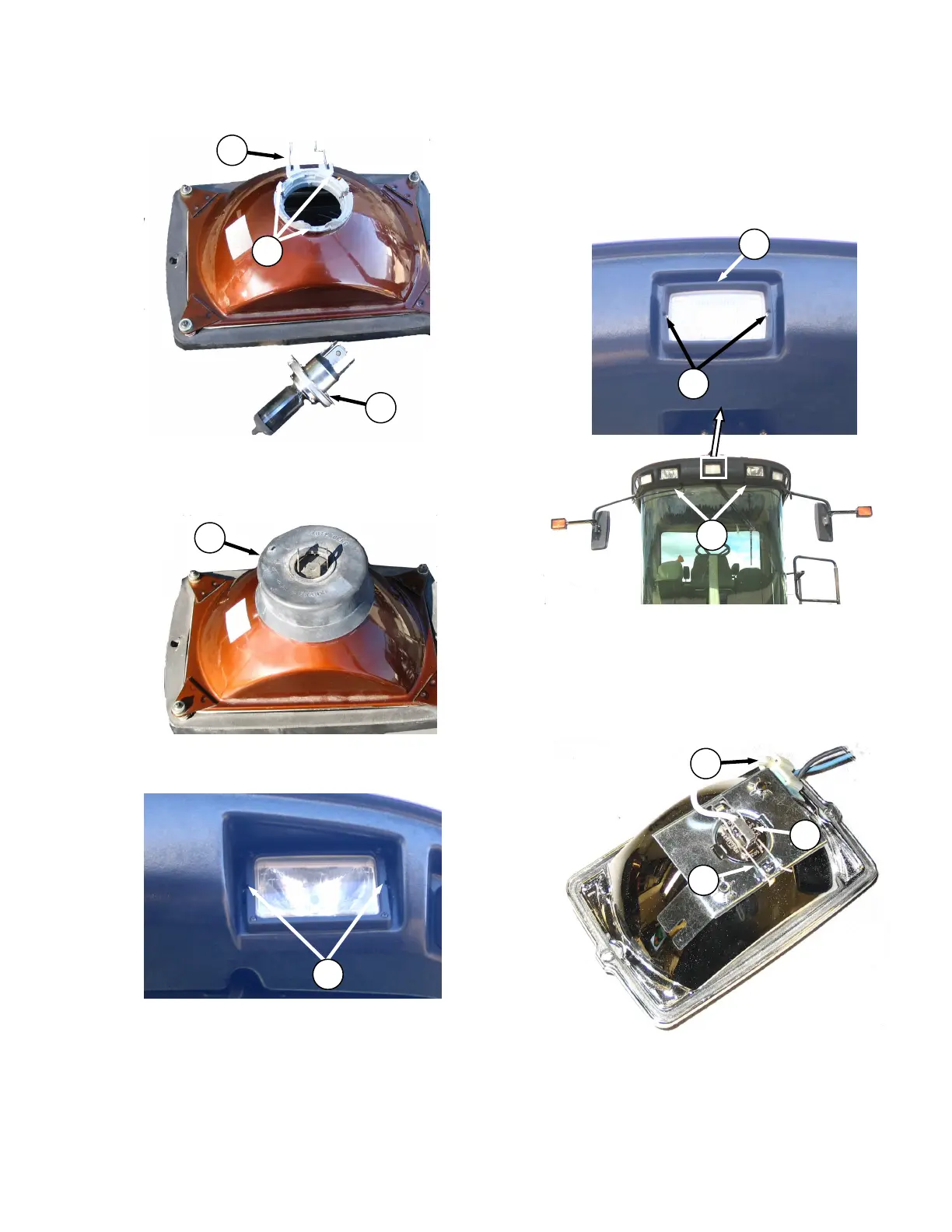

e. Align lugs on new bulb with slots (G) in body and
push into place.
f. Secure bulb with wire retainer (E)
g. Replace rubber insulator boot (D).
h. Push connector onto light bulb.
i. Position headlight into light receptacle, ensuring
top is up, and secure with screws (C).
NOTE
j. Aligning of light should not be necessary.
7.10.3 Flood Lights - Forward
The forward floodlights are not adjustable.
Replace bulbs as follows:
a. Shutdown engine and remove the key. Turn off
the lights.
b. Hold onto the hand-holds (H) on the cab front
corners and stand on the header anti-slip strips
when removing the forward field lights.
c. Remove the two screws (J) and remove light
bezel (K).
d. Remove light from receptacle.
e. Pinch the wire retainer (L) and lift away from
hooks.
f. Remove bulb (M) from body and pull wire from
connector (N).
(continued next page)
