MacDon M100 2009 - Operating Screens

OPERATOR’S STATION
Form 169304 31 Model Year - 2009
5.18.3 Operating Screens

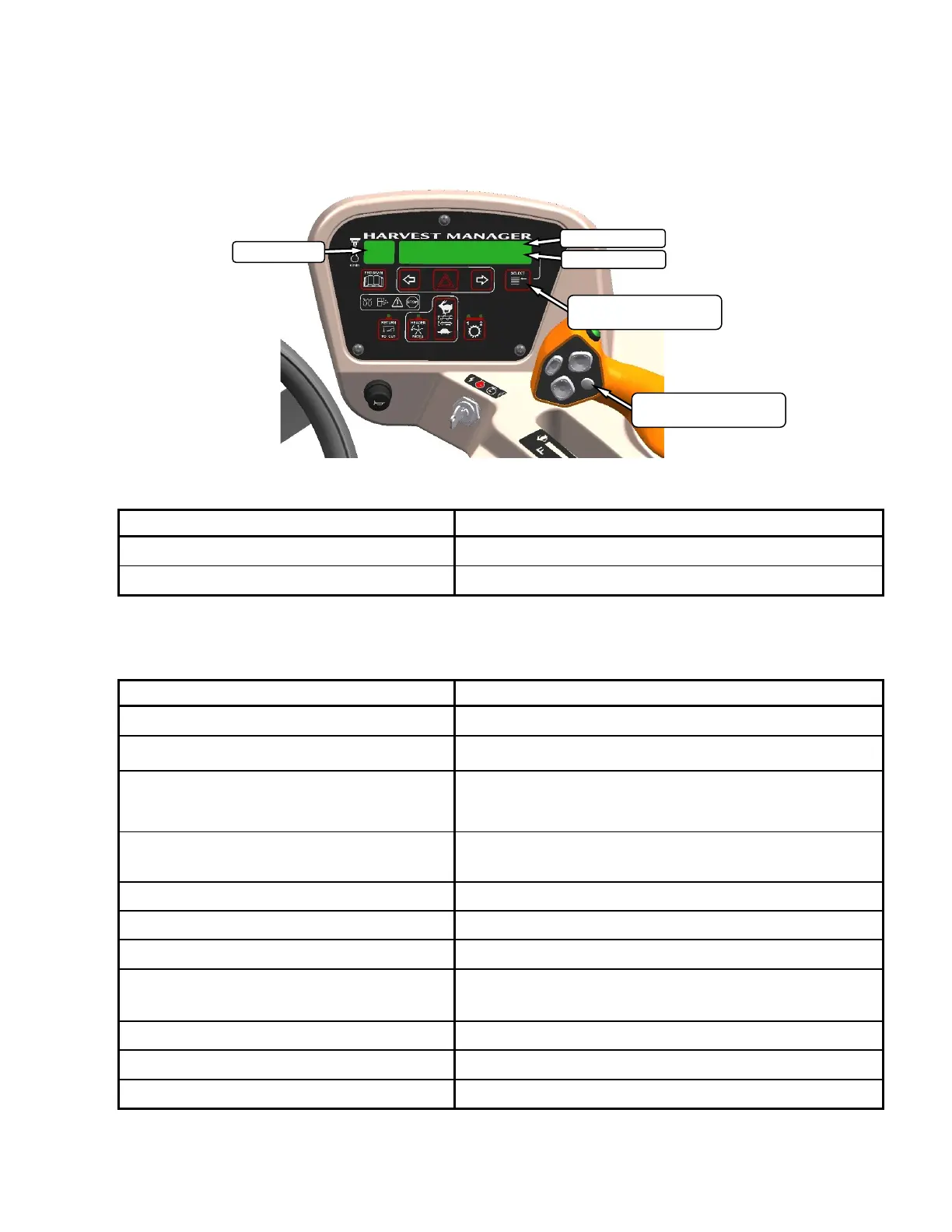

The M100 windrower Cab Display Module
(CDM) and the Windrower Control Module
(WCM) provide information on several functions
for the engine, header, and tractor. The
information displayed in various operating
modes is described in the following sections:
IGNITION ON/ENGINE NOT RUNNING
DISPLAY (Upper Line)(2-3 Seconds)
DESCRIPTION
HEADER DISENGAGED
Indicates Header Engage Switch Is Off.
IN PARK
Indicates GSL In Neutral Detent.
ENGINE RUNNING/HEADER DISENGAGED
(Scroll Through Display with CDM Switch or GSL Switch)
DISPLAY (Lower or Upper Line) DESCRIPTION
#####.# ENGINE HRS
Total Engine Operating Time.
#####.# HEADER HRS
Total Header Operating Time.
###.# SUB ACRES
###.# SUB HECTARES (If Metric)
Area Cut Since Last Reset. To Reset, Display SUB
ACRES On Lower Line And Hold Down Program Switch
Until Display Resets (5-7 Seconds).
###### TOTAL ACRES
###### TOTAL HECT
(If Metric).
Total Area Cut By Machine.
##.# HEADER HEIGHT
Distance Setting (00.0-10.0) Between Cutterbar & Ground.
##.# HEADER ANGLE
(Optional)
Angle Setting (00.0-10.0) Header Relative to Ground.
FUEL LEVEL |■■■■|■■■■|
Level of Fuel In Tank.
ENGINE TEMP ###
°
F
ENGINE TEMP ### °C
(If Metric)
Engine Coolant Temperature.
##.# VOLTS
Engine Electrical System Operating Voltage.
SCROLL
(Lower Line)
ROAD GEAR
(Upper Line)
Ground Speed Range Switch In High Range.
DISPLAY
UPPER LINE
LOWER LINE
DISPLAY SELECTOR
FOR LOWER LINE
DISPLAY SELECTOR
FOR UPPER LINE
