OPERATOR’S STATION
Form 169304 27 Model Year - 2009
5.17 HEADER CONTROLS
All header controls are conveniently located on
the operator’s console and on the GSL handle.
NOTE
Some controls are optional equipment and
may not be present in your unit. Some
controls may be installed, but will be non-
functional for certain headers.

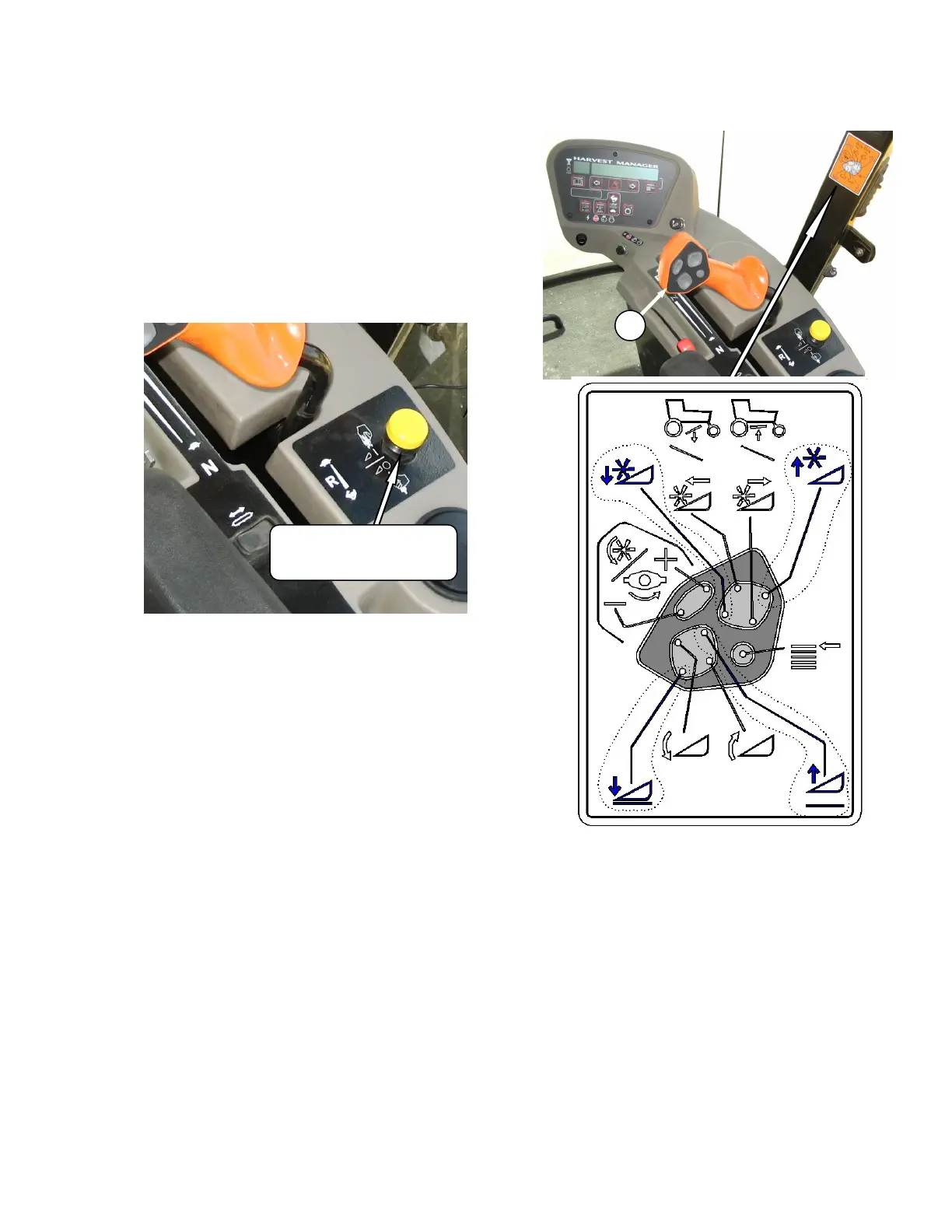

5.17.1 Header Engage Switch
Engages and disengages header drive.
IMPORTANT
Always move throttle lever back to idle
before engaging header drive. Do not
engage header with engine at full RPM.
5.17.2 GSL Header Switches
The GSL (A) contains switches for the following
header functions that are most often adjusted
while in operation to suit changing crop
conditions. All are momentary type switches. A
decal that identifies the switch functions is
located on the cab post above the operator’s
console.
• Display Selector
• Reel Position
• Header Position
• Reel Speed
ENGAGE – Pull Up
DISENGAGE – Push Down
