MacDon M100 2009 - 5 OPERATOR’S STATION (continued); 5.18 CAB DISPLAY MODULE (CDM)

OPERATOR’S STATION
Form # 169304 30 Model Year - 2009
5.18 CAB DISPLAY MODULE (CDM)

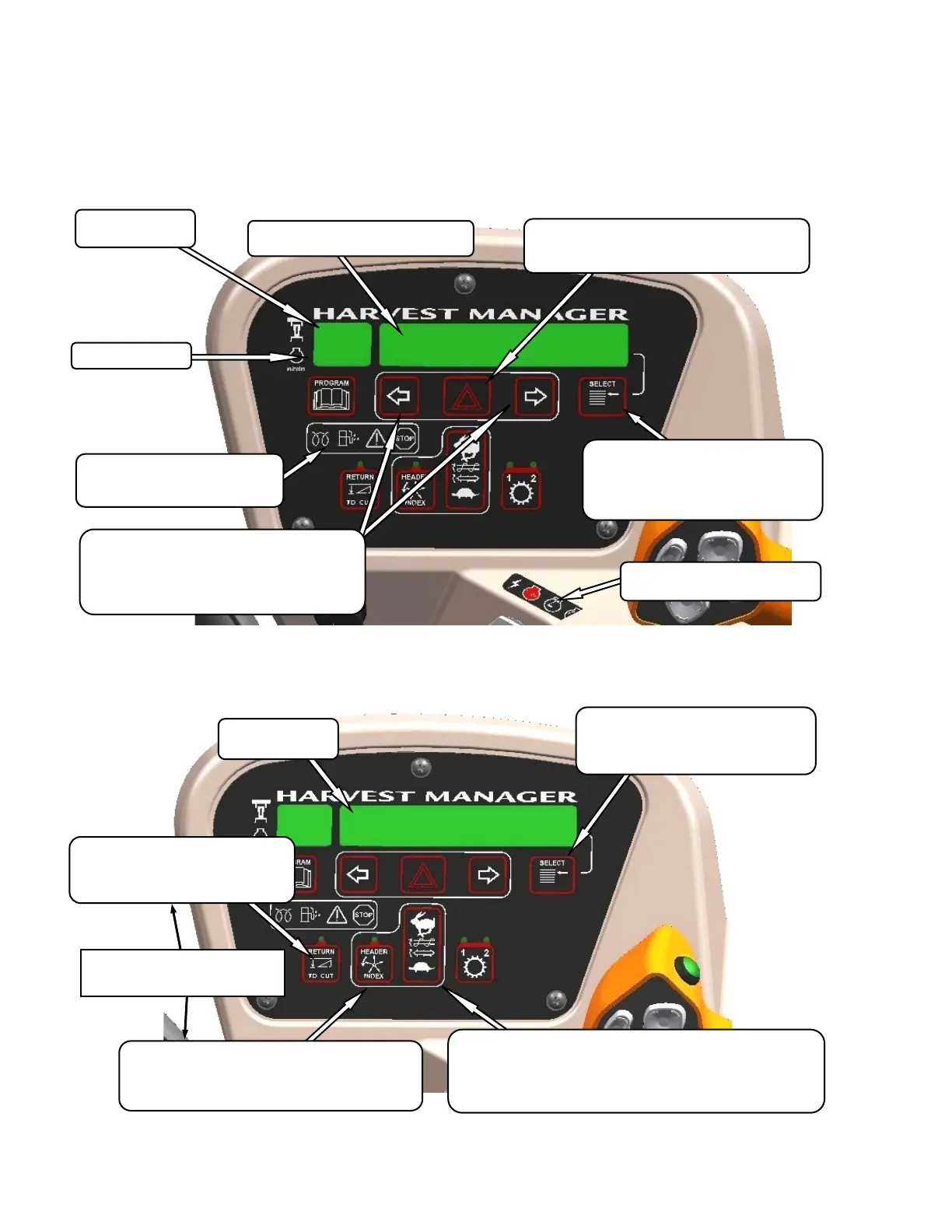

5.18.1 Engine and Windrower Tractor
Functions
5.18.2 Header Functions
HAZARD WARNING LIGHTS SWITCH
Activates Hazard Warning Lights
Cancels Turn Signal
TURN SIGNAL SWITCHES
Activates Turn Signals On Windrower Tractor
and Header
Push-On/Push-Off
GROUND SPEED
mph or kph
ENGINE RPM
DISPLAY
Engine/Windrower Tractor Functions
IGNITION SWITCH POSITIONS
Accessory/Stop/Run/Start
ENGINE WARNING LIGHTS
Engine Pre-Heat/Water In
Fuel/Do not Operate/Stop Engine
SELECT SWITCH
Allows Operator To Select Display Item
On Lower Line.
See Table
Push To Select
AUGER/DRAPER SPEED ADJUST
Changes Auger/Draper Speed INDEX with INDEX SWITCH on.
Changes Auger/Draper SPEED with INDEX SWITCH off.
Push Upper Switch to Increase
Push Lower Switch to Decrease
DISPLAY
Header Functions
HEADER INDEX SWITCH - OPTION
Links Reel and Conveyor Speed to Ground Speed
Push-On/Push-Off
Illuminates In On Position
SELECT SWITCH
Allows Operator To Select Display Item.
Bottom Line - See Table
Push To Select
RETURN TO CUT HEIGHT SWITCH
Allows Cutting Height Pre-Set
Push-On/Push-Off
Illuminates In On Position
NOTE
HEADER MUST BE ENGAGED.
