MacDon M100 2009 - 5 OPERATOR’S STATION; 5.1 OPERATOR CONSOLE

OPERATOR’S STATION
Form # 169304 16 Model Year - 2009
5 OPERATOR’S STATION
The operator’s station is designed for operating
the windrower tractor in a cab forward mode.

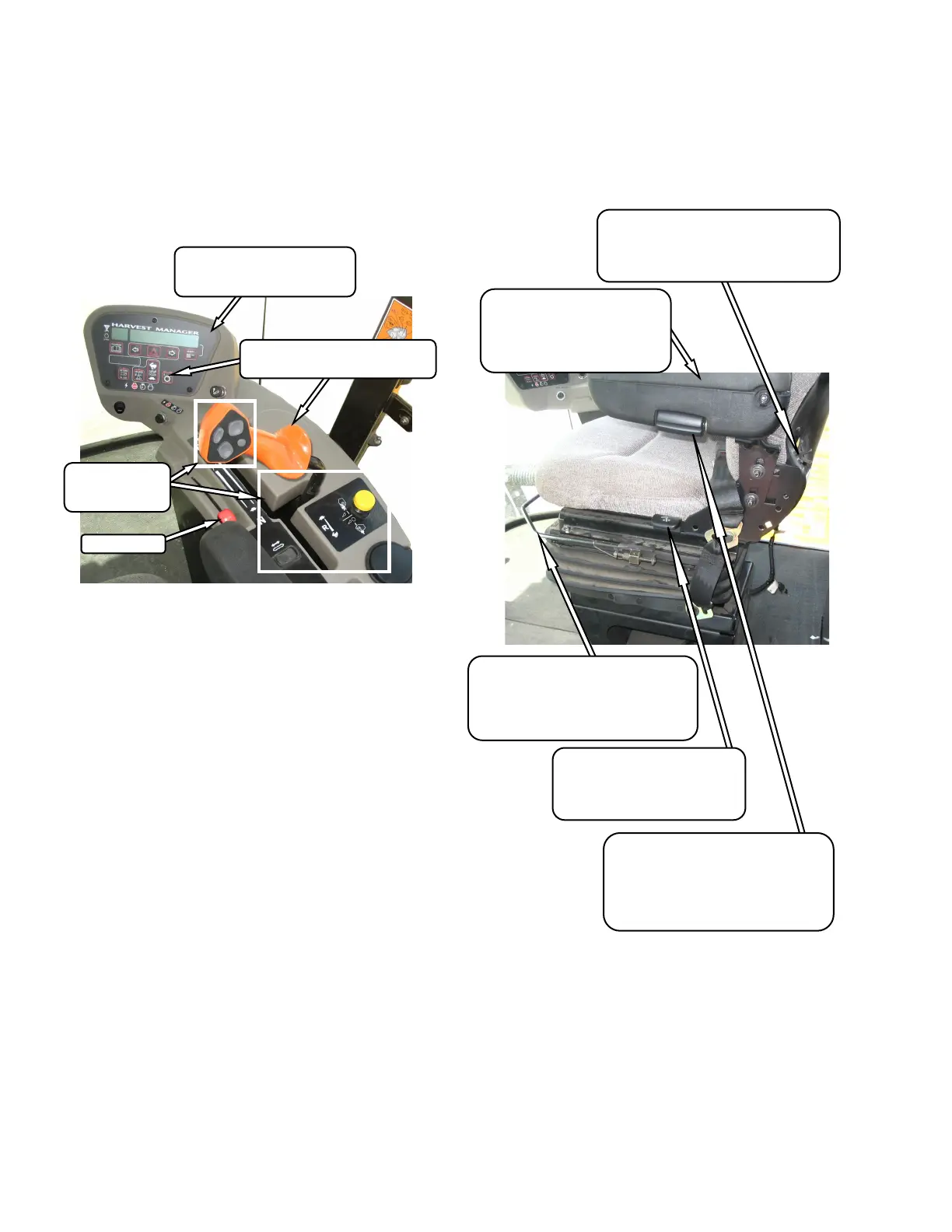

5.1 OPERATOR CONSOLE
The console contains controls to operate the
windrower as well as amenities for the operator.
5.2 SEAT ADJUSTMENTS
The operator’s seat has several adjustments.
Refer to the following illustration for the location
and description of each adjustment.
LUMBAR SUPPORT
Adjusts Stiffness of Seat Back
INCREASE - Rotate Knob Upward.
DECREASE - Rotate Knob Downward.
ARM REST ANGLE
Adjusts Angle of Arm Rest
INCREASE - Rotate Knob Clockwise.
DECREASE - Rotate Knob Counter-
Clockwise.
SEAT FORE-AFT POSITION
Adjusts Fore-Aft Position
Pull Lever Up To Release.
Move Seat Forward or Rearward.
Release Lever.
SEAT BACK ANGLE
Pull Lever Up To Release.
Position Seat Back As Desired.
Release Lever.
ARM REST
Raise Arm Rest For Easier
Access To Seat.
Lower Arm Rest After Seat
Belt Is Buckled.
THROTTLE
HEADER
CONTROLS
SECTION 5.16
ENGINE/WINDROWER CAB
DISPLAY MODULE (CDM)
SECTION 5.17
GROUND SPEED CONTROLS
SECTION 5.15
