5.18.4 Cab Display Module (CDM)
Warnings/Alarms
The CDM displays warnings and sounds alarms
to notify the operator of abnormal windrower
status at startup when the ignition is turned on
and at engine operating speeds above 500 rpm.

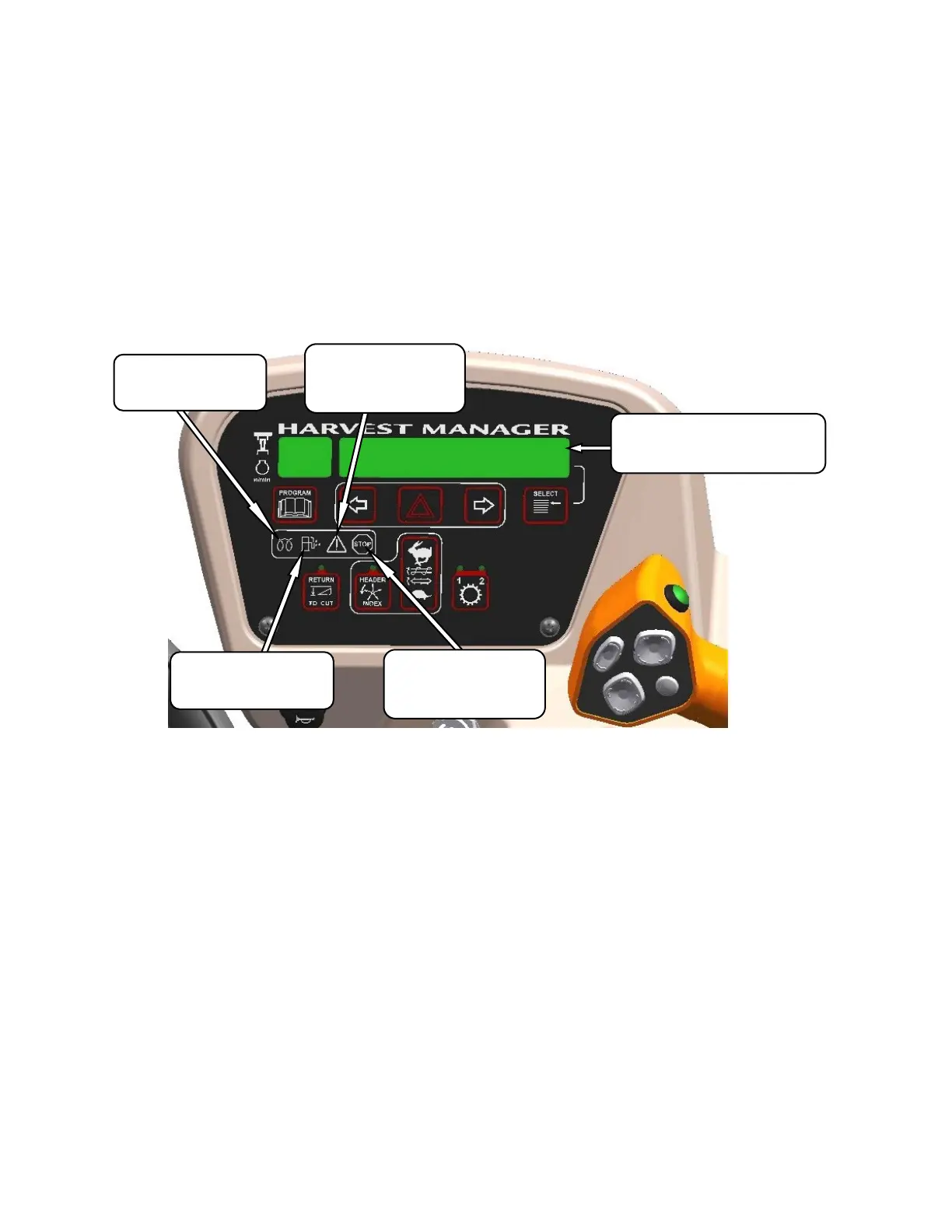

5.18.4.1 Engine Warning Lights
Illuminates Yellow
Service Recommended
Illuminates Yellow
Do Not Operate Engine
Refer to Display Code
Displays Malfunction Code
Refer to Technical Service Manual
Illuminates Yellow
Wait To Start Engine
Illuminates Red
Stop Engine Immediately
Refer to Display Code
