OPERATOR’S STATION
Form 169304 37 Model Year - 2009
5.18.4.2 Display Warnings
DISPLAY WARNINGS AND ALARMS – ENGINE/TRANSMISSION
DISPLAY
FLASHING
ALARM TONE DESCRIPTION
ENGINE OIL PRESSURE

Continuous Loud Tone Until Oil
Pressure Is Regained.
Low Engine Oil Pressure.
Accompanied By Warning Lights.
ENGINE
TEMPERATURE

Ongoing Intermittent Moderate
Tone Until Temperature Is Below
215F. (102C.)
Engine Temperature Over 230F.
(110C.).
Accompanied By Warning Lights.
##.# LOW VOLTS

Single Loud Tone For 10 Seconds. Voltage Below 11.5.
##.# HIGH VOLTS

Single Loud Tone For 10 Seconds. Voltage Above 16.
IN PARK

One Short Beep
Steering Wheel Centered, And
Brakes Are Engaged.
PLACE GSL INTO “N”
Beeps At 2 Per Second Until
Corrected.
Interlock Switch Not Closed With
Key On/Engine Off.
SLOW DOWN

Short Beep With Each Flash
Ground Speed Greater Than or
Equal to 25 mph (40 km/h).
TRANS OIL PRESS

Continuous Loud Tone Until Oil
Pressure Is Regained.
Low Transmission Charge Oil
Pressure.
TRANS OIL TEMP

Ongoing Intermittent Moderate
Tone Until Temperature Is Below
Acceptable Level.
Transmission Oil Temperature
Above 221F (105C).

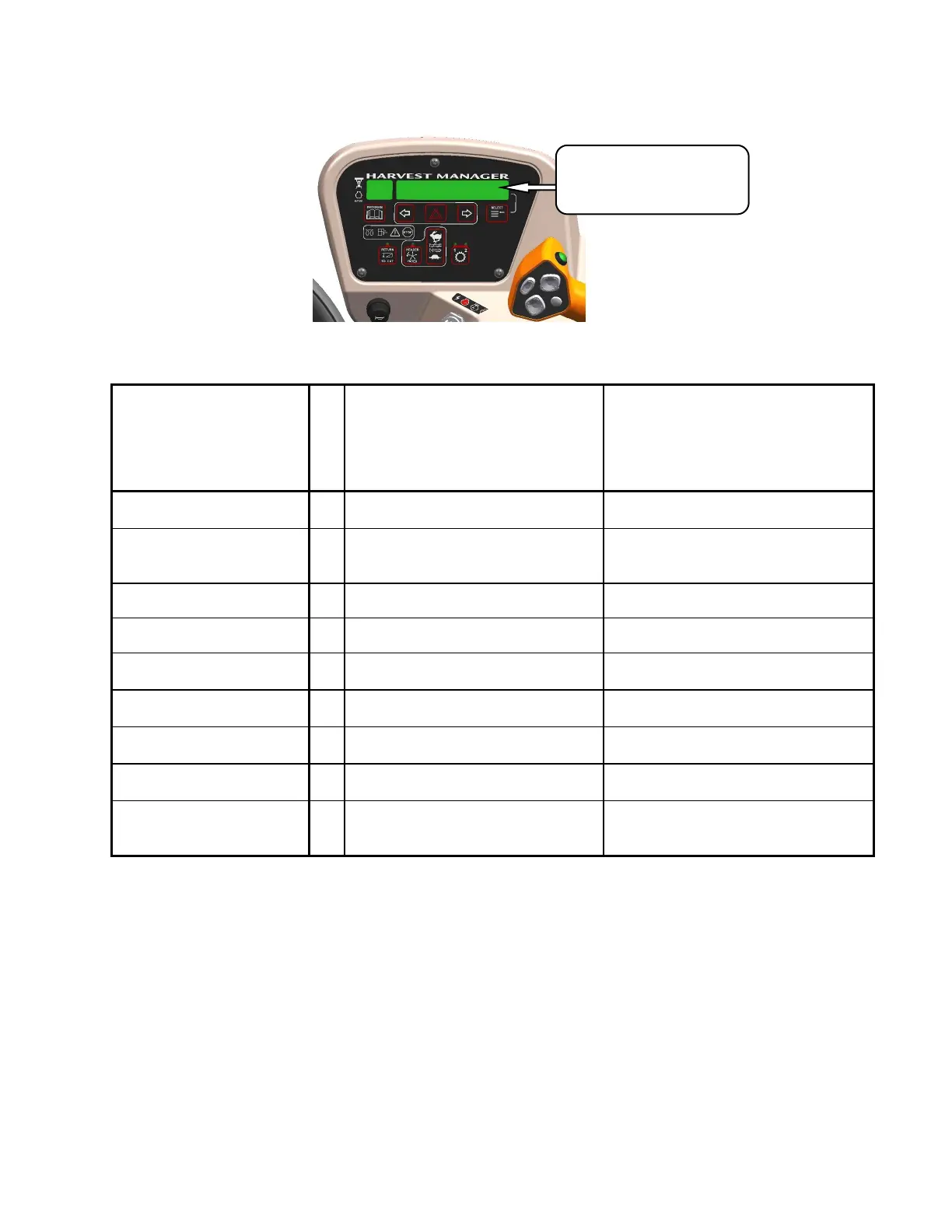

DISPLAY WARNINGS
Informs Operator of Abnormal
Windrower Conditions
See Table Below
