MAINTENANCE/SERVICE
Form 169304 141 Model Year - 2009
7.10.8.3 Main Fuses - 125 Amp
The 125 amp main fuse holders are located
inside the frame beside the battery and are
accessed from underneath the windrower.
a. Stop engine and remove key.

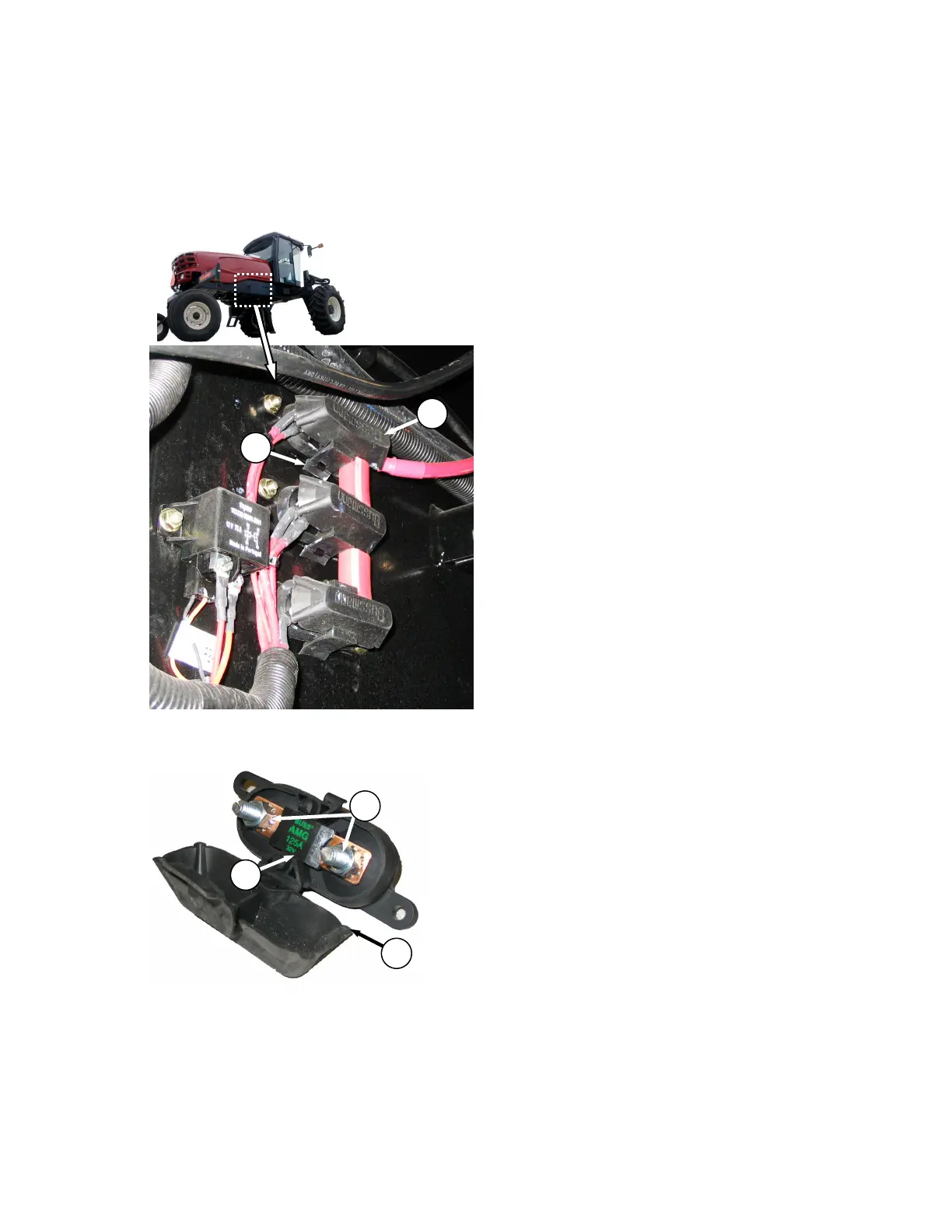

b. To check condition of fuse, pull tab (A) and open
cover (B).
c. Visually examine fuse (C) for indications of
melting.
d. To remove fuse (C), remove two nuts (D) and
pull fuse free from holder. Existing wiring may
need to be pulled off the stud first.
e. Install new fuse on studs and any existing wiring
that was removed.
f. Secure with nuts (D).
g. Close cover (B) and secure with tab (A).
