HEADER OPERATION – D SERIES
Form # 169304 76 Model Year - 2009

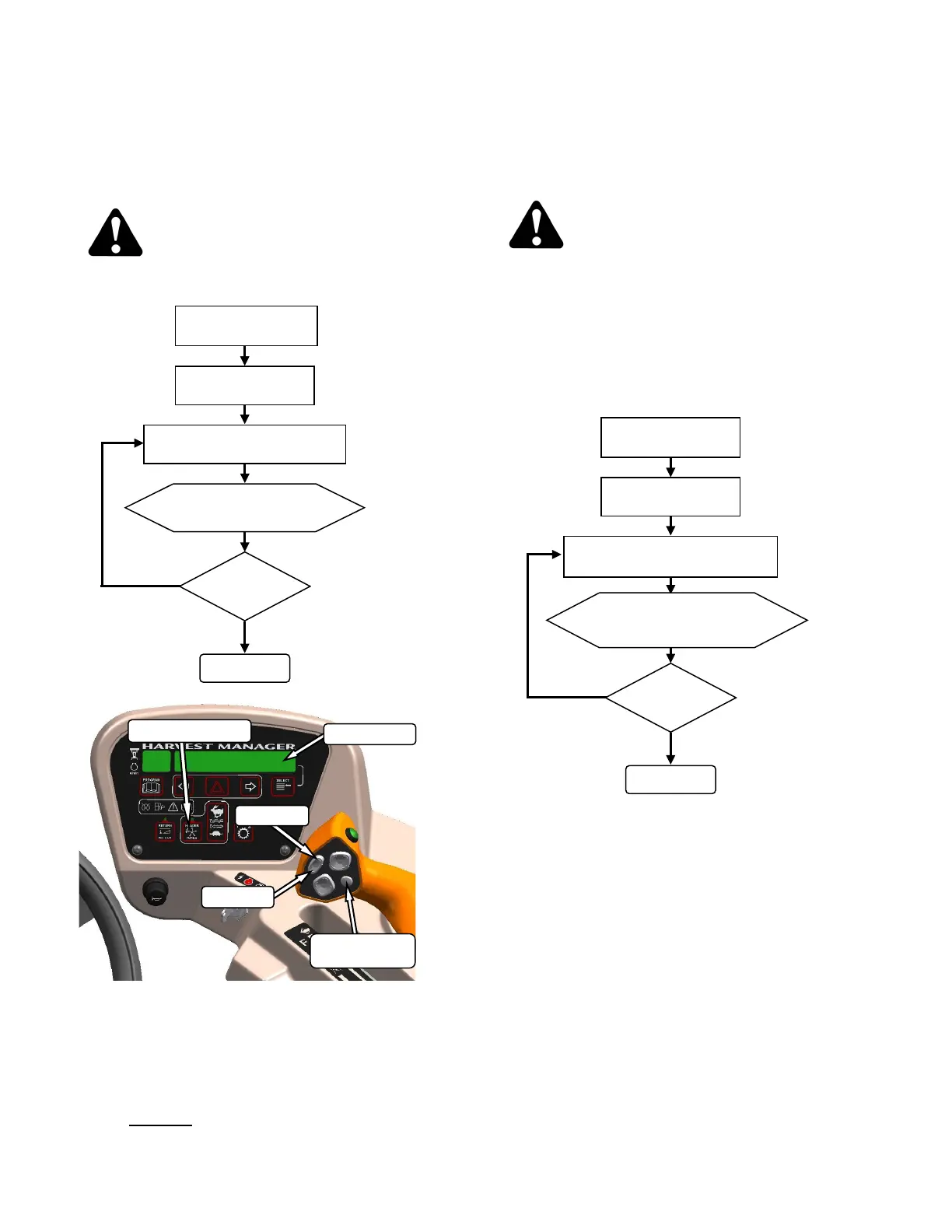

6.5.3.2 Reel Minimum Speed
Set the minimum reel speed as follows:
IMPORTANT
Windrower must be moving.
CAUTION
Check to be sure all bystanders have cleared
the area.
NOTE
DISPLAY will flash ##.## MIN REEL
(MPH or KPH) to prompt the operator to
change the minimum set point or increase
ground speed if Ground Speed Plus Index
is less than the Minimum Reel Speed Set
Point.
6.5.3.3 Reel Only Speed
Set the speed of the reel independently of
ground speed as follows:
CAUTION
Check to be sure all bystanders have cleared
the area.
NOTE
This procedure can also be used to
change the draper speed “on the go”.
These changes become the new set-
points.
##.## = MPH or KPH
HEADER ENGAGED
OR DISENGAGED
HEADER INDEX
SWITCH - ON
ON GSL PRESS REEL SPEED
SWITCH FAST OR SLOW
DISPLAY SHOWS
##. ## MIN REEL
DONE
SPEED
O.K.?
NO
YES
##.## = MPH or KPH
ENGAGE HEADER
HEADER INDEX
SWITCH - OFF
ON GSL PRESS REEL SPEED
SWITCH FAST OR SLOW
OPTIONAL DISPLAY
SHOWS
##.## REEL MPH
DONE
SPEED
O.K.?
NO
YES
DISPLAY
SELECTOR
DISPLAY
HEADER INDEX
FAST
SLOW
