147762 11 Revision C

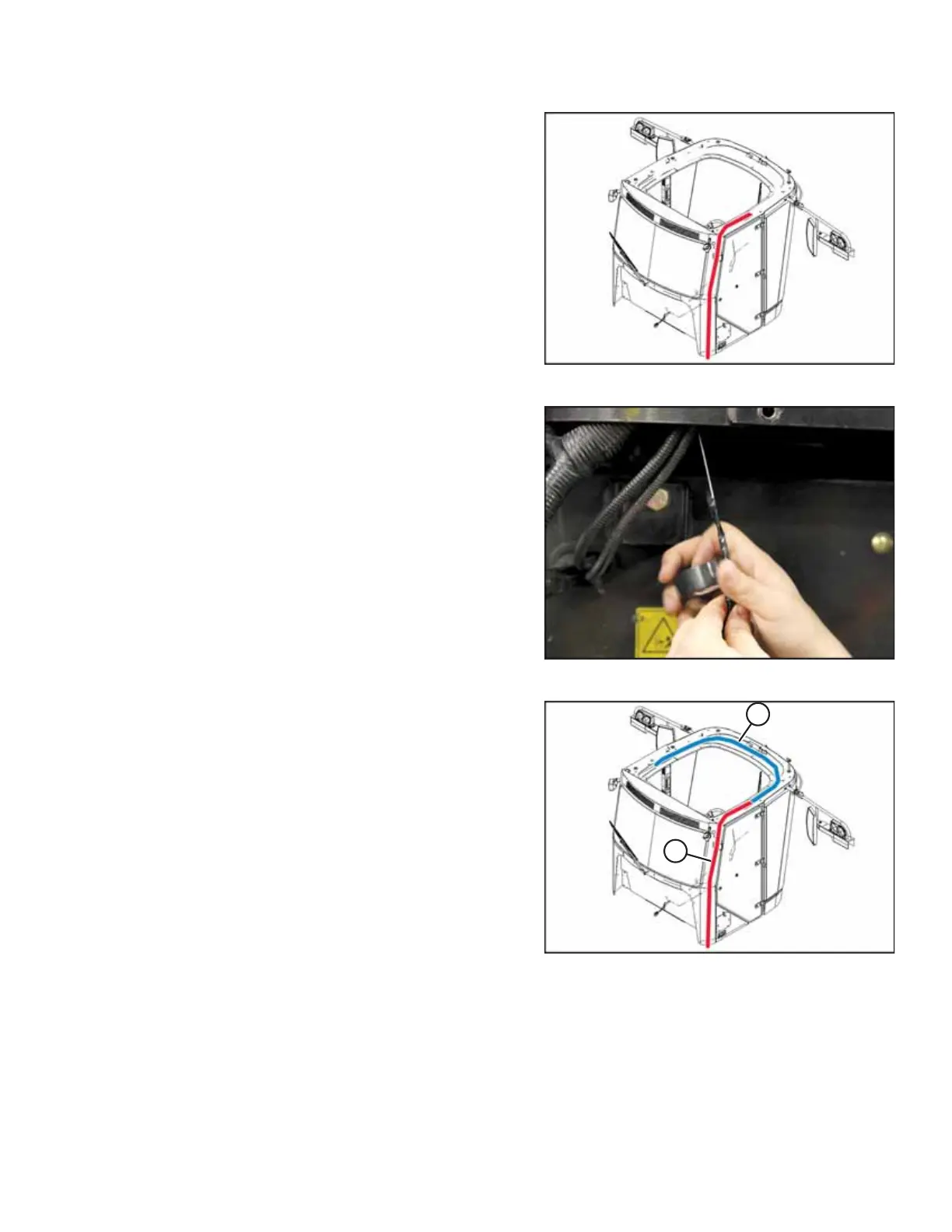

Figure 3.6: Fish Tape Routing
5. Feed a fish tape/draw wire through the right headliner
switch panel, alongside the looms that run down into the
right rear corner post of the cab.
NOTE:
The fish tape should follow the path shown in the
illustration at right, from the right switch panel opening to
the base of the right rear cab post.
Figure 3.7: Harness and Fish Tape
6. Below the right rear corner post, attach the female spade
terminal (labelled AUX LTS TO AUXILIARY LTS RELAY - 30)
from the new auxiliary lights roof harness to the fish tape
using electrical tape.
7. Pull the fish tape and harness up through the cab post to
the right headliner switch panel opening. Disconnect the
harness from the fish tape.
Figure 3.8: Fish Tape Routing
A - Fish Tape B - Auxiliary Lights roof Harness
8. Run fish tape (A) from the left headliner switch panel
opening over to the right opening.
INSTALLATION INSTRUCTIONS
