2.7 Matrix
-
Plus
Matrix
-
Plus is a unique and powerful 11x8 matrix mixing tool that delivers ex-
tremely flexible matrix mixing. The matrix can only be activated by pressing
the MATRIX button on the right side of the QuickMix area (Figure 2-3).
Once activated, the matrix uses the Group outputs. Like most 11x8 matrices, the
11 default inputs to each matrix are Groups 1–8, Left, Right, and Center. How-
ever, Matrix
-
Plus provides the unique ability to patch other signals into the ma-
trix. Press the desired Group QuickMix knob to display the screen in the right
side of Figure 2-4 to select the desired signals.

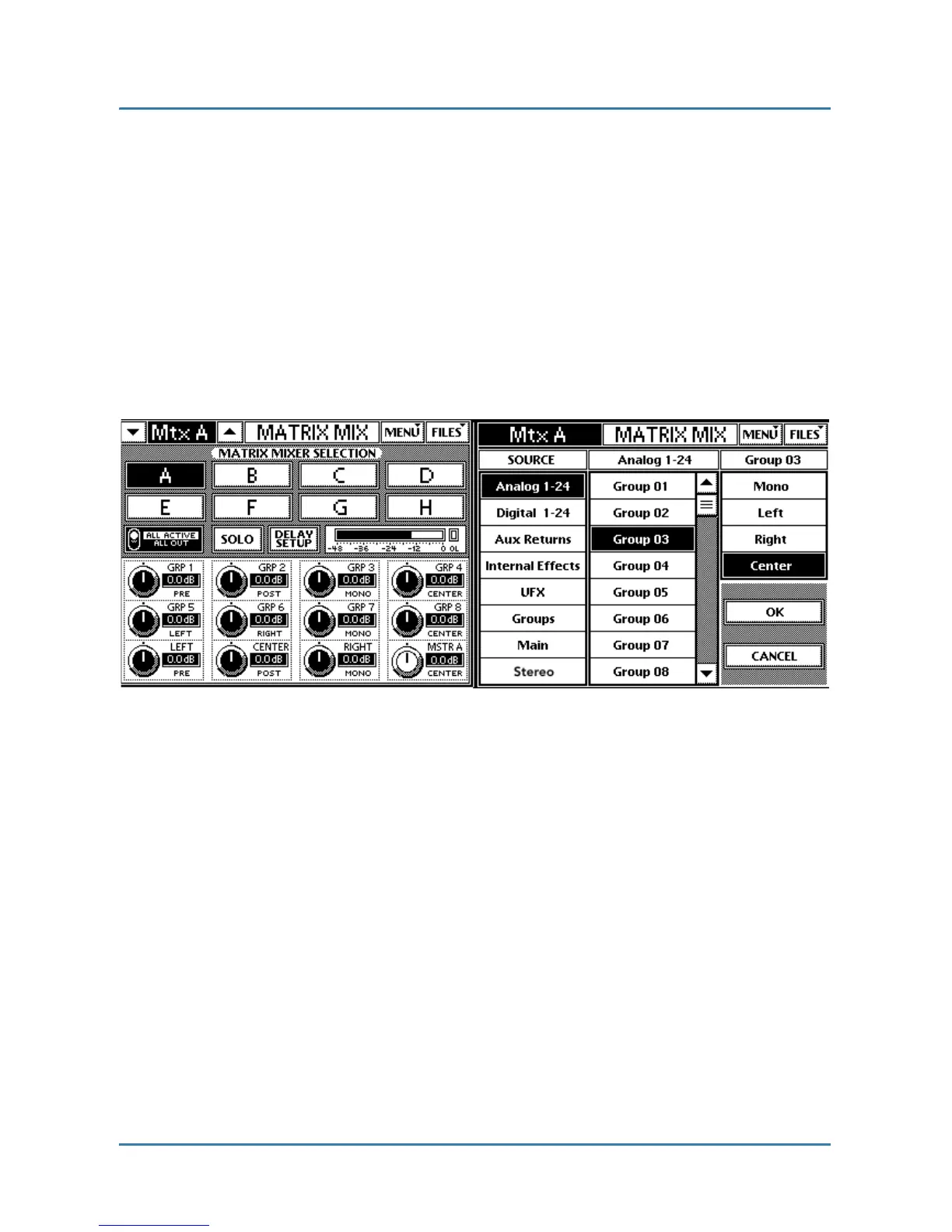

Figure 2-4 Matrix screens
The available matrix input signals are
:
• Analog inputs 1–24 pre/post fader
• Digital inputs 25–48 pre/post fader
• Line inputs 1–8 pre/post fader
• Internal effects returns 1L
-
4R pre/post fader
• Groups 1–8 Mono, Left, Right, Center (if available)
• Main Left, Right or CTR/Mono post fader
• Expansion card return 1–8
• Stereo inputs Left and Right pre/post fader
Each matrix also has up to 600 ms delay for delayed stack applications.
