Max. input voltage: 40 V
Resolution: 10
-7
/10
-6
/10
-5
/10
-4
Vs
Range limits: ±2250·10
-4
Vs, ±9999·10
-5
Vs, ±9999·10
-6
Vs, ±9999·10
-7
Vs
Display resolution 4 digits
Accuracy: DC: 0.5 % of reading ± 0.01 % of range ± 5 · 10
-7
Vs
AC: 10 Hz - 5 kHz: 5 % of reading (see also chapter 5.3)
Precision (reproducibility): DC: 0.2 % of range
Measuring rate: Display: approx. 2.7 measurements per second
Interface: up to approx. 120 measurements per second
Extreme values: |Max|, Max, Min, Max-Min, Peak for impulses
Limit comparator: 2-fold, relay output, display: Low, OK, High
Measurement memory: Memory for up to 100 values. The stored values are kept in
memory if the instrument is switched off. They can be read from
the display and the computer interface.
Coil data memory: Memory for up to 10 coil data sets. The values are kept in
memory when the instrument is switched off.
Display: Backlight LCD, 128 x 64 dots
Analog output: Real analog, ±1 Volt in all ranges
Computer interface: RS 232C
Operating temperature +10 °C to +35 °C
Line power: AC 90 - 250 V, 50 - 60 Hz, 5 Watt
Dimensions: 248 mm (width) x 180 mm (depth) x 100 mm (height)
Weight: Approx. 1.5 kg

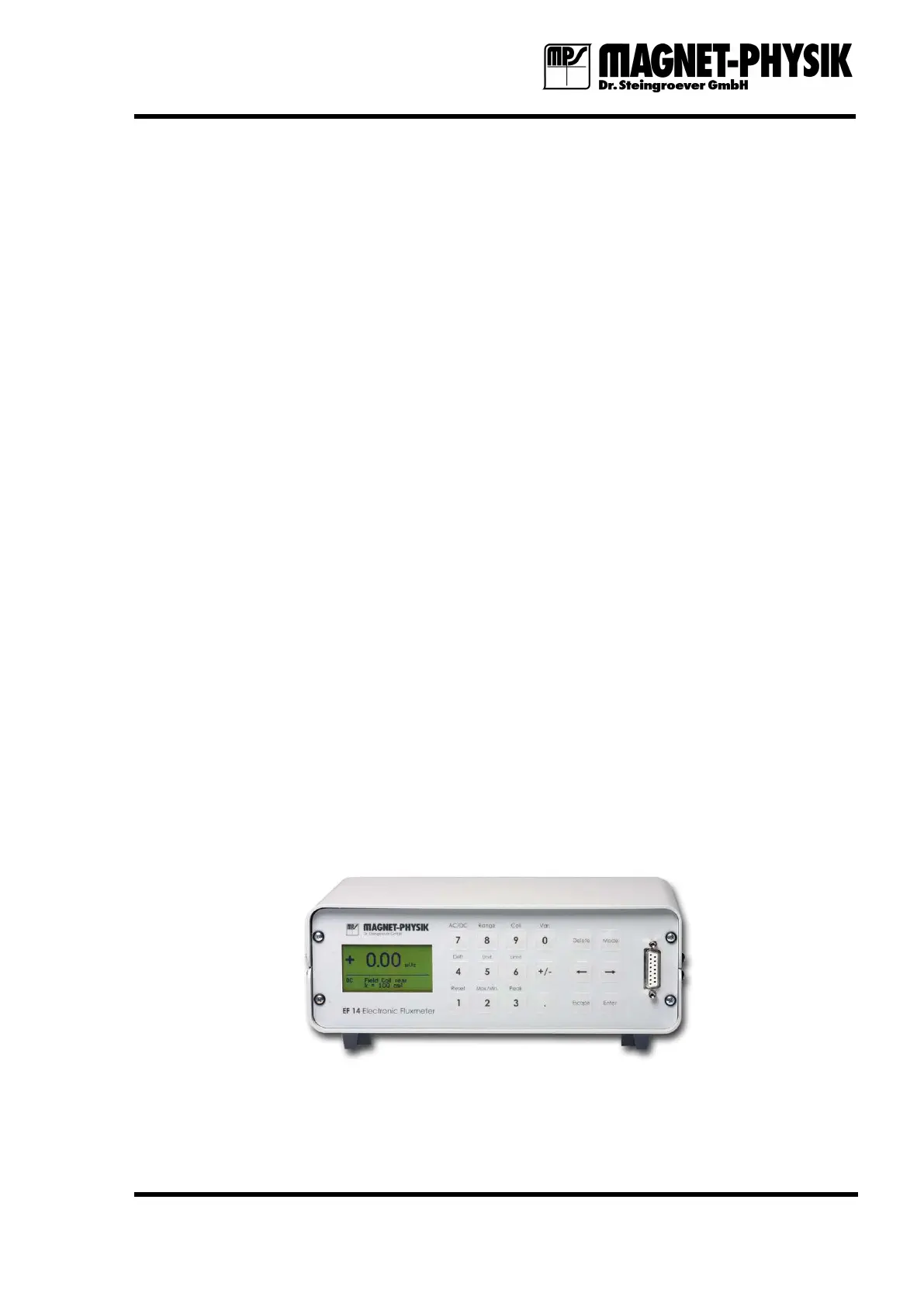

Fig. 1.4.1: EF 14 Front View
