Electronic Fluxmeter EF 14
If the unit for the measuring display is changed, then the stored values are also shown in the
new unit.
Please take into account that the stored values are also recalculated if the coil constant and
resistance are changed.
4.12 Mode Menu
Further menus and functions can be accessed from a selection menu that is invoked with the
Mode key. These menus and functions are then selected with the arrow keys (←, →) and
activated with Enter.

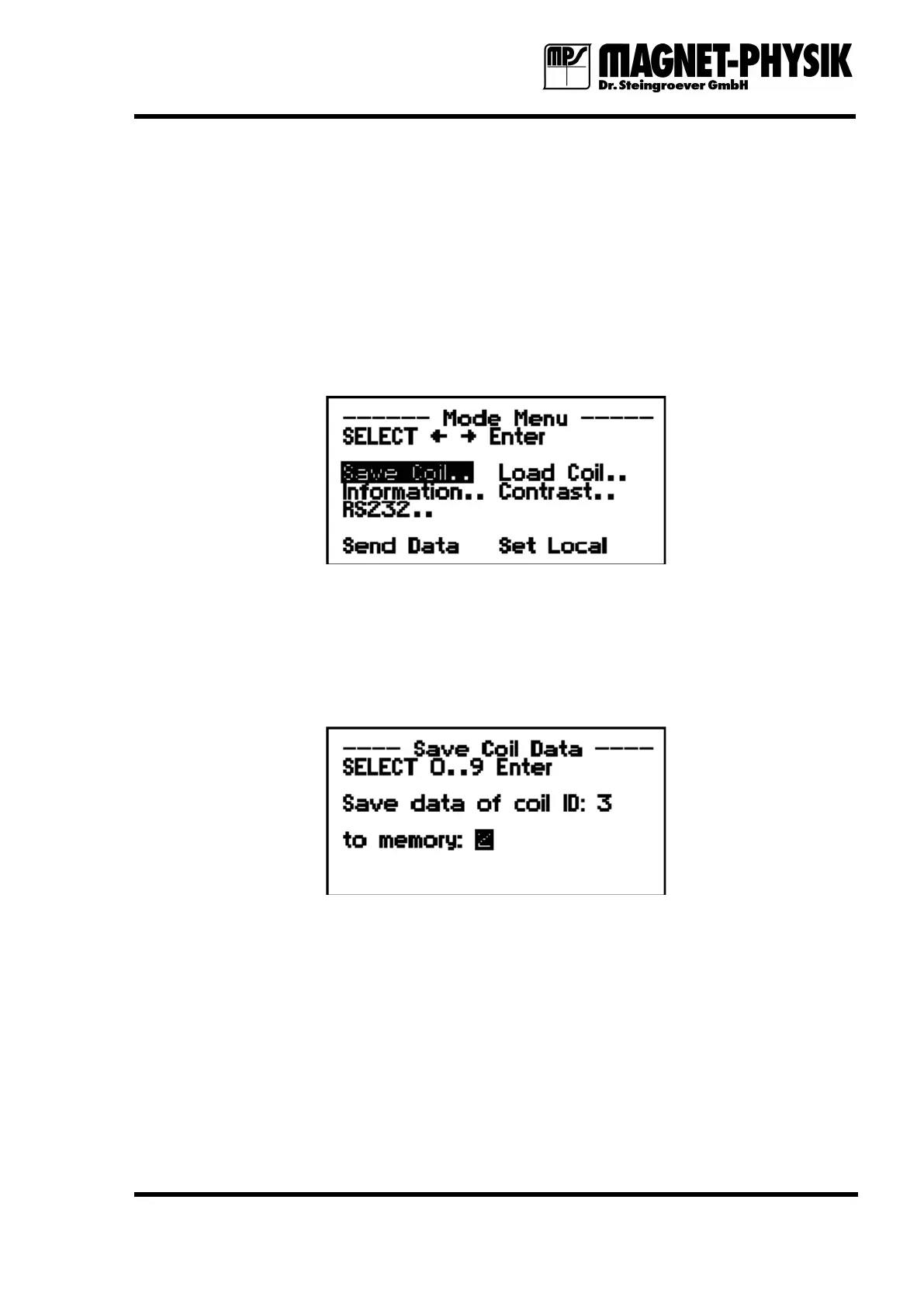

Fig. 4.11.1: Mode Menu
4.12.1 Save Coil
Using Save Coil you can save the data of measuring coils which do not have their own data
memory in the EF 14. There are ten memory locations available for this (No. 0 – 9). Before the
can data can be stored it must first be entered using the Coil menu.
Fig. 4.12.1.1: Save Coil menu.
The coil in the example has the identification number (ID) 3. Its data will be stored to memory
2. The number of the memory is set using the respective numerical key.
If you confirm the selection with Enter, the data are stored and you get back to the Mode
menu. Instead of Enter you can press Mode to start the measuring operation directly.
Data previously stored in this memory location is overwritten.
The data remains saved even when the EF 14 is switched off. It can always be loaded again
with Load Coil when the respective coil is to be used.
4.12.2 Load Coil
