7 Pin Assignments of Plugs and Sockets
7.1 Measuring Coil Connections
Important!
Only one measuring coil must be connected at one time, either to the socket
on the front panel or to the clamps on the rear panel. If both connections are
used at the same time, this will cause faulty measurements.
Caution!
The negative measuring input (-) is only designed for the connection of a
measuring coil. It must not be tied to ground or earth or used otherwise.

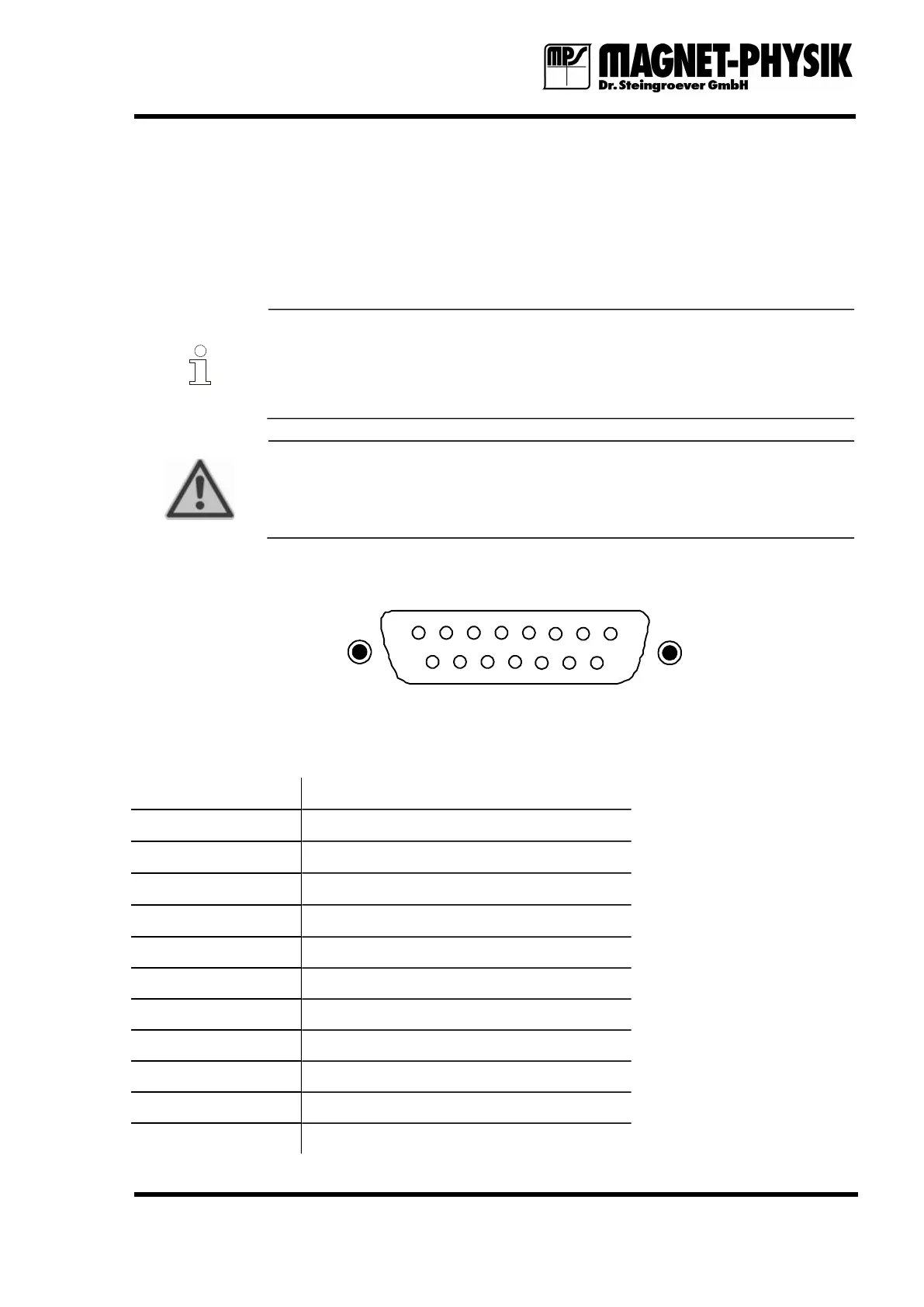

7.1.1 Input Socket on the Front Panel
5 4 3 2 1
15 14 13 12
DB15 socket
Plug side
8 7 6
11 10 9
Table 7.1.1.1: Assignments of the 15-pole Sub-D socket
PIN Function
1
Measuring input +
2
Reserved
9
Measuring input
-
10
Reserved
11
Digital ground
12
Reserved
13
Reserved
14
Reserved
5
Reserved
4
Coil attached = Digital Ground
8
PE
