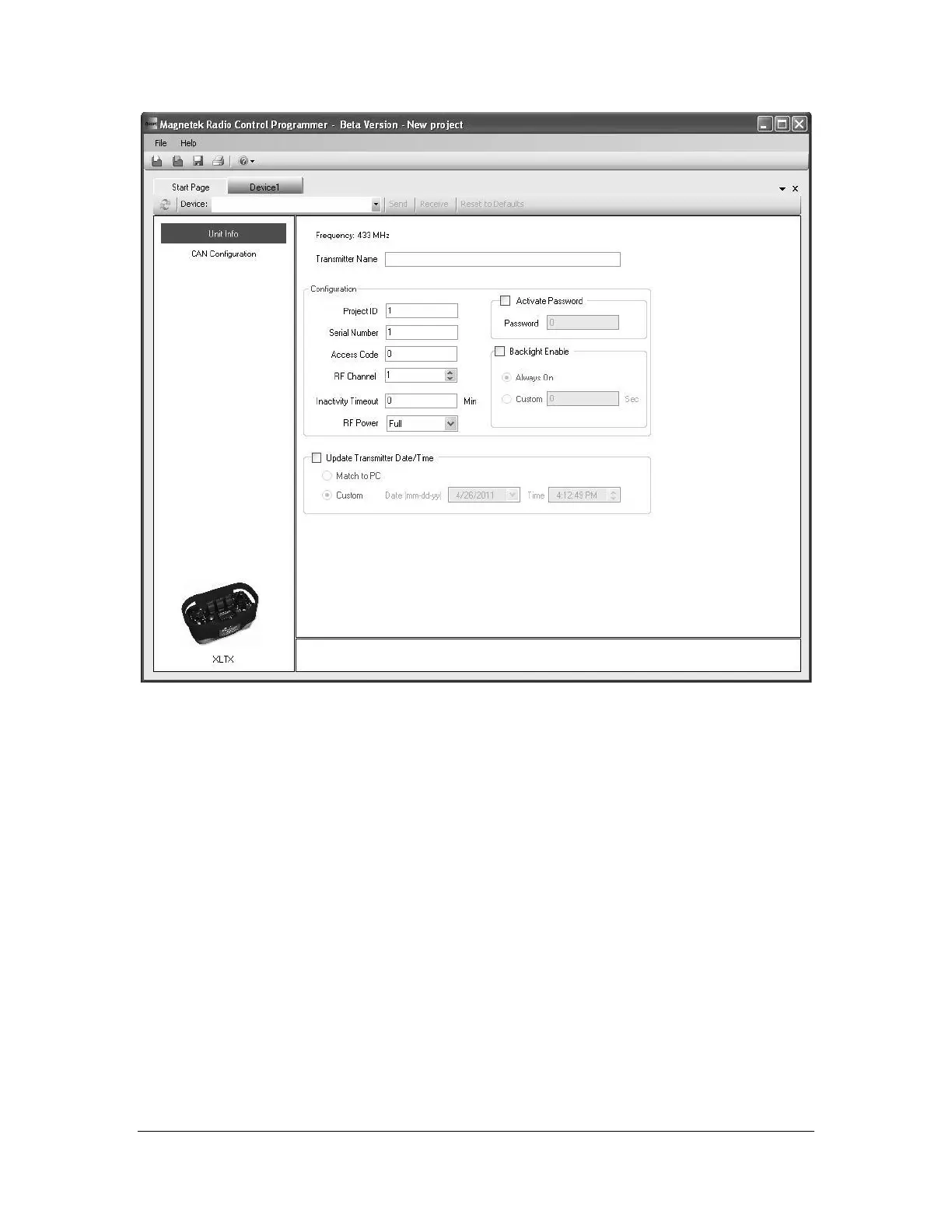

Transmitter Name
The transmitter name field allows the user to create a custom name for the transmitter. The name
can be up to 16 ASCII characters long.
Project ID
This section displays the Project ID for the unit. The Project ID is set by the factory and cannot be
modified by the user.
Serial Number
This section displays the serial number for the unit. The serial number of the unit is set by the
factory and cannot be modified by the user.
Access Code
The access code acts as the transmitter address. The transmitter will only transmit commands to
receivers with the same address. This feature is selectable by the user.
NOTE: The transmitter must be set with the same access code as the receiver to properly
communicate with each other.
