16 Series, Model - 2816 4WD
Head Lamp Adjustment
NOTE: To keep maximum ground and road illumination, check and
adjust the head lamps from time to time. Tire wear and different tire sizes
will change the setting.
The head lamps can be adjusted to various positions by adjusting the
mounting screws in the rear of the head lamp unit.

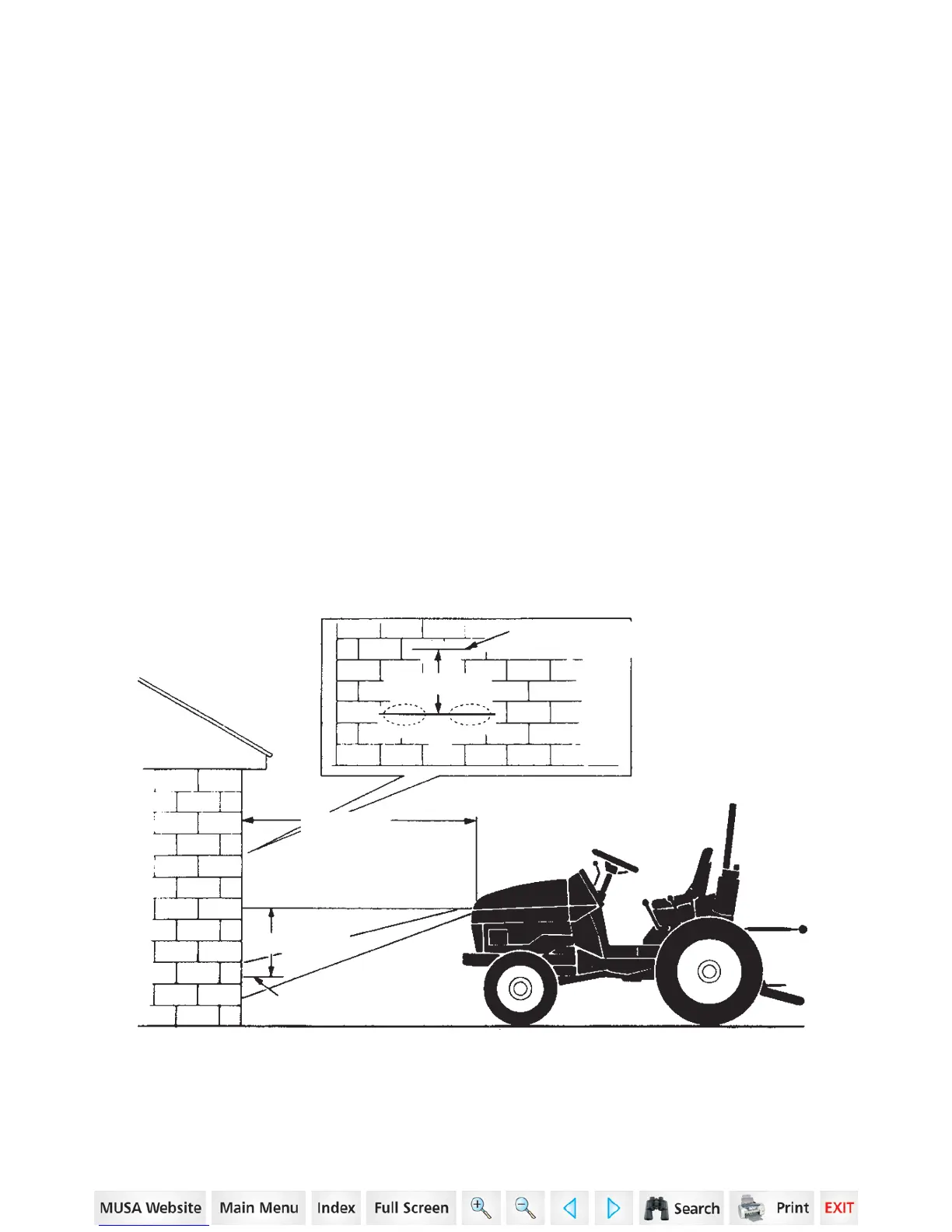

1. Put the tractor on level ground near a wall with the front end to the
wall and the head lamps 6.1 m (20 feet) from the wall.
2. Measure the distance from the ground to the center of the head lamp
and
put this dimension on the wall in the form of a horizontal line.
3. Put a second horizontal line on the wall 405 mm (16 inches) lower
than the first line. The center of the low head lamp beams must be on
the second horizontal line, 405 mm (16 inches) below the first
horizontal line. Adjust the head lamps up or down as needed.
NOTE: Some countries have different regulations for head lamp
alignment and o
peration on a road. Check your local regulations.
CENTER OF HEAD
LAMP BEAM
20’ (6.1m)
16” (405mm)
16” (405mm)
MARK DISTANCE OF CENTER OF
HEAD LAMP FROM GROUND
128
ELECTRICAL SYSTEM_________________________________________________
