16 Series, Model - 2816 4WD
HYDRAULIC BLOCK
A hydraulic block is located on the right side of the tractor. This block can
provide an external hydraulic circuit for loader use or other applications.
See your dealer.
IMPORTANT: Never park a tractor with an implement in the raised
position. Moving the control lever forward will lower the implement even
though the engine is not running. If it is necessary to service the
implement in the raised position, use jack stands to safely block
the implement in place. Put the hydraulic flow control knob in the LOCK
position.
IMPORTANT: Whenever the shut off plate is set at the
“
S” position,
never plug the inlet and outlet of the hydraulic block. Change the set
position of shut-off plate to “0” position, if the remote attachment is not
installed. Failure to do so will cause damage to the hydraulic system.

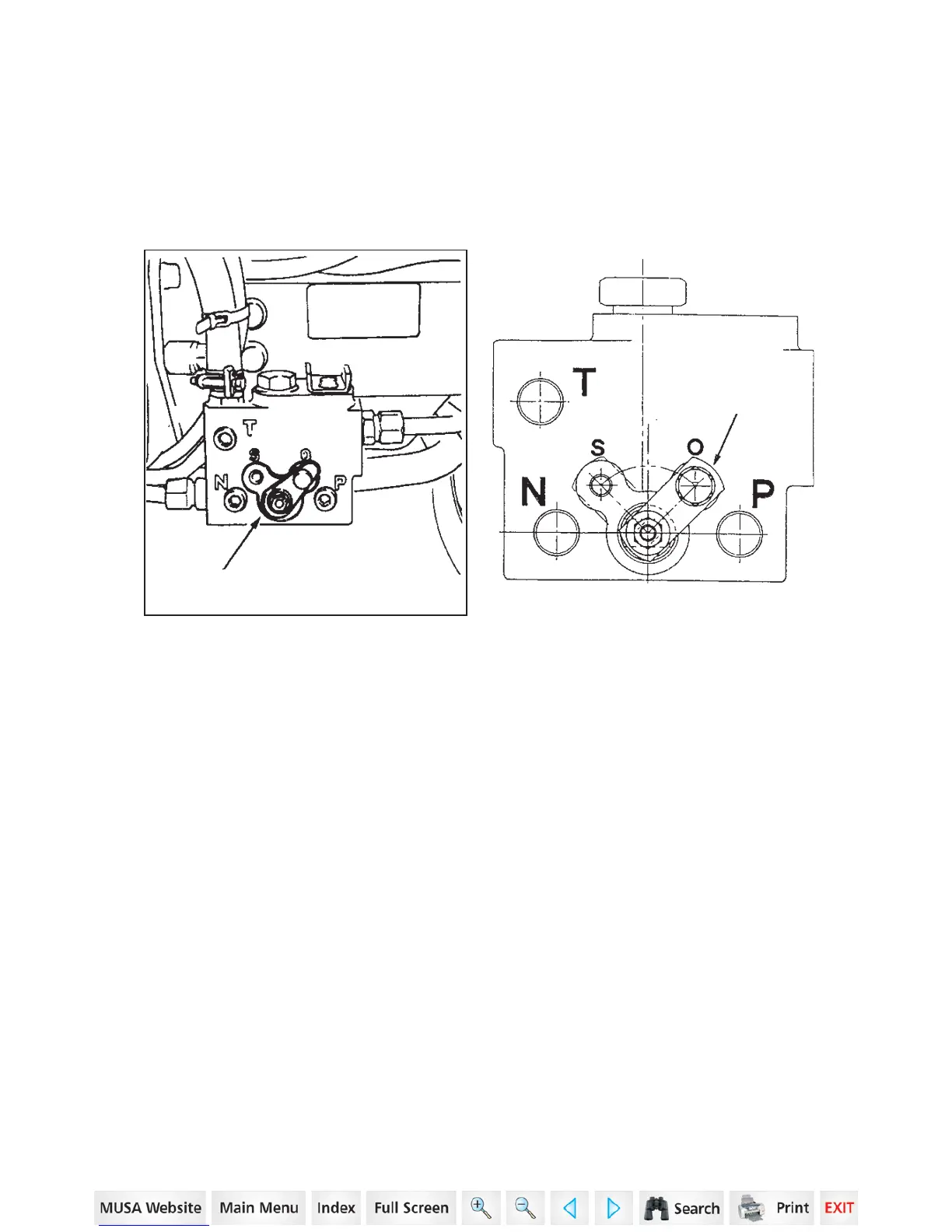

HYDRAULIC
BLOCK
SHUT-OFF
PLATE
74
