Mahindra '16' Series - Upper Link and Stabilizer Adjustment

16 Series, Model - 2816 4WD

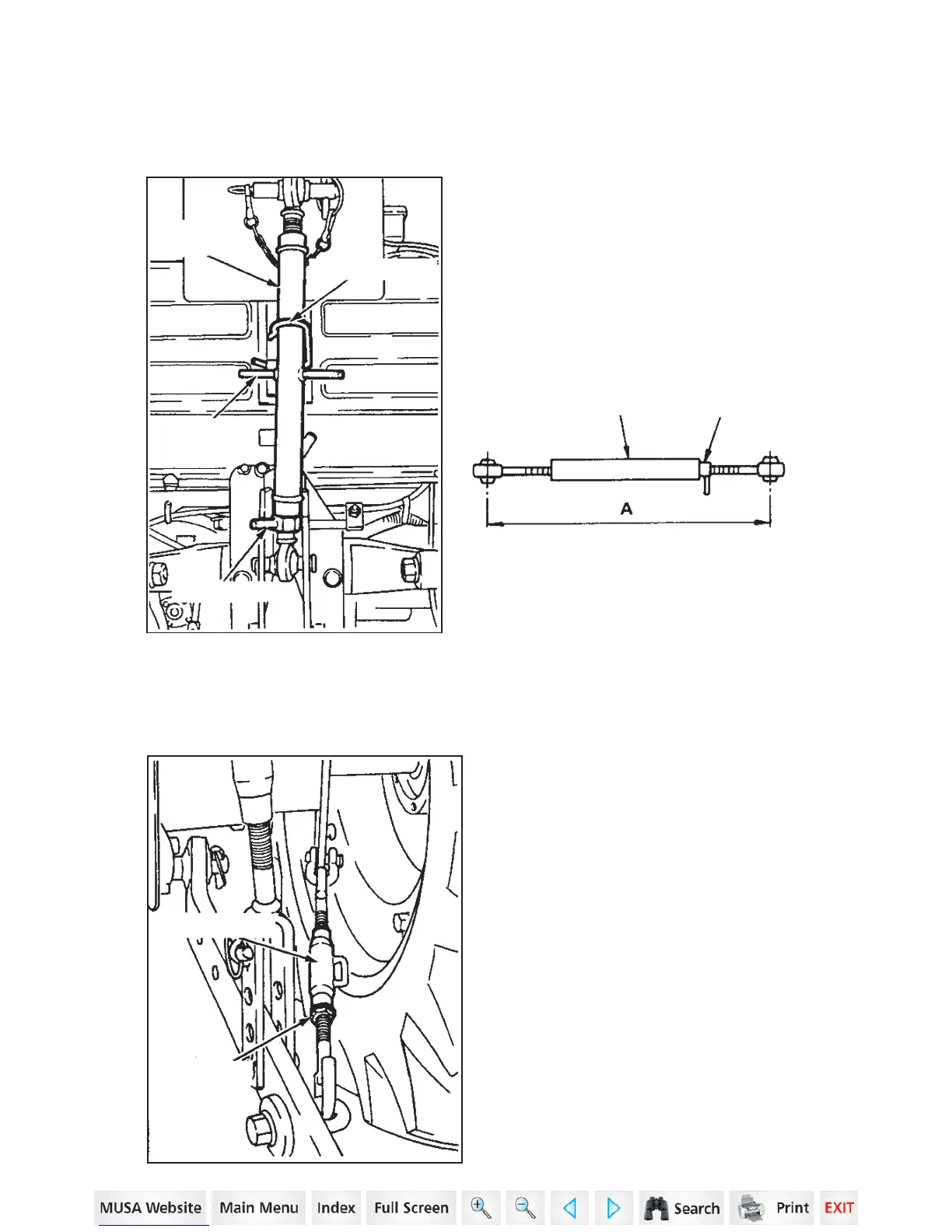

Upper Link
The length A of the upper link can be
adjusted from 470 to 750 mm (18.5 to
29.5 inches).
Turn the turnbuckle clockwise to
shorten the link or counterclockwise
to lengthen the link.
IMPORTANT: After the upper link is correctly adjusted, make sure the
lock nut is tightened against the turnbuckle.
Stabilizer
When side movement of the hitch
is undesirable or hazardous, the
lateral swing is adjusted by the
turnbuckle on the stabilizer.
Turn the turnbuckle clockwise to
lengthen the stabilizer or
counterclockwise to shorten the
stabilizer.
IMPORTANT: After making final
adjustments, carefully raise the
implement to make sure that there
is proper clearance between the
implement and tractor
components.
NOTE:
Make sure the lock nut is
tightened after adjusting the
stabilizer.
UPPER
LINK
TURNBUCKLE
LOCK NUT
TURNBUCKLE
LOCK NUT
TURNBUCKLE
LOCK NUT
HOOK
66
FIELD OPERATION ____________________________________________________
