HITCH SYSTEM ADJUSTMENTS
The upper and lower links must
be adjusted correctly so the im-
plement can work at the needed
depth and the links are free to
move up and down with the
shape of the ground.

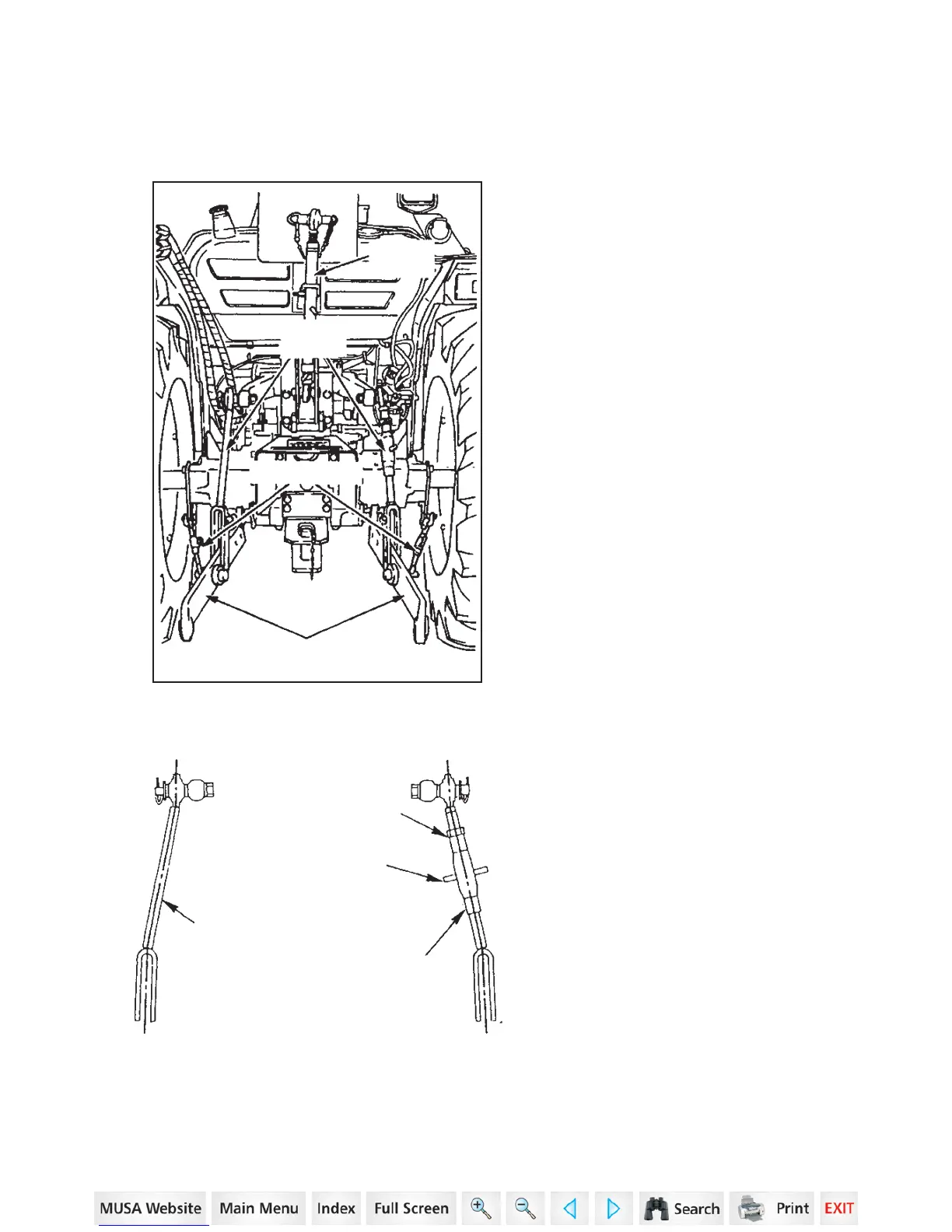

1. Connect the lift links to the
tractor and to the lower links.
Make sure the lift links are
installed on the proper sides
as shown below.
2. The RH side lift link is ad-
justable by turnbuckle to ob-
tain the desired position of the
hitch point.
Turn the turnbuckle clockwise
to shorten the link or counter-
clockwise to lengthen the link.
IMPORTANT: After the lift link is adjusted, make sure the locknut is
tightened against the turnbuckle.
LIFT
LINKS
STABILIZERS
LOWER LINKS
UPPER
LINK
Lift Links
LOCK NUT
TURN BUCKLE
RH LIFT LINK
LH LIFT LINK
65
