THREE POINT HITCH SYSTEM
The three point hitch system gives position control and draft control (If
equipped) of implements.
This tractor is equipped with a category I hitch.

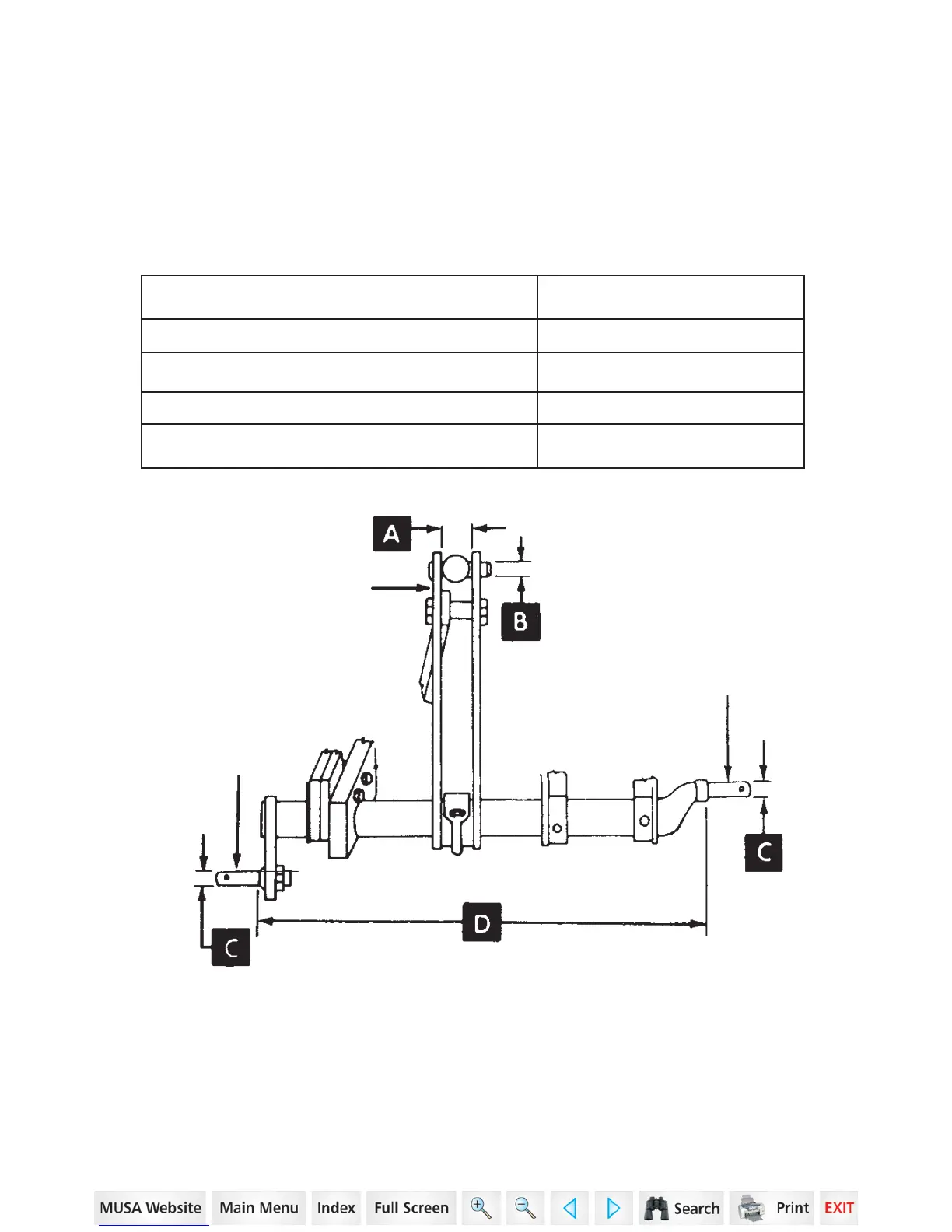

The three-point hitc h dimensions are shown in the following table.
Implement Identification
Dimensions
Cat I
Implement
A – Gap In top of Implement mast
B – Diameter of holes in top of
Implement mast
C – Diameter of hitch pins
D – Lower Hitch Pin
Inner Shoulder Spread
44.5 mm (1-3/4 Inch)
19.1 mm (3/4 Inch)
22.2 mm (7/8 Inch)
682.6 mm (26-7/8 Inch)
MAST
HITCH PIN
HITCH PIN
