16 Series, Model - 2816 4WD
To fold the ROPS, put the tractor on level ground, put the range shift
lever in the L position, apply the park brake and stop the engine.

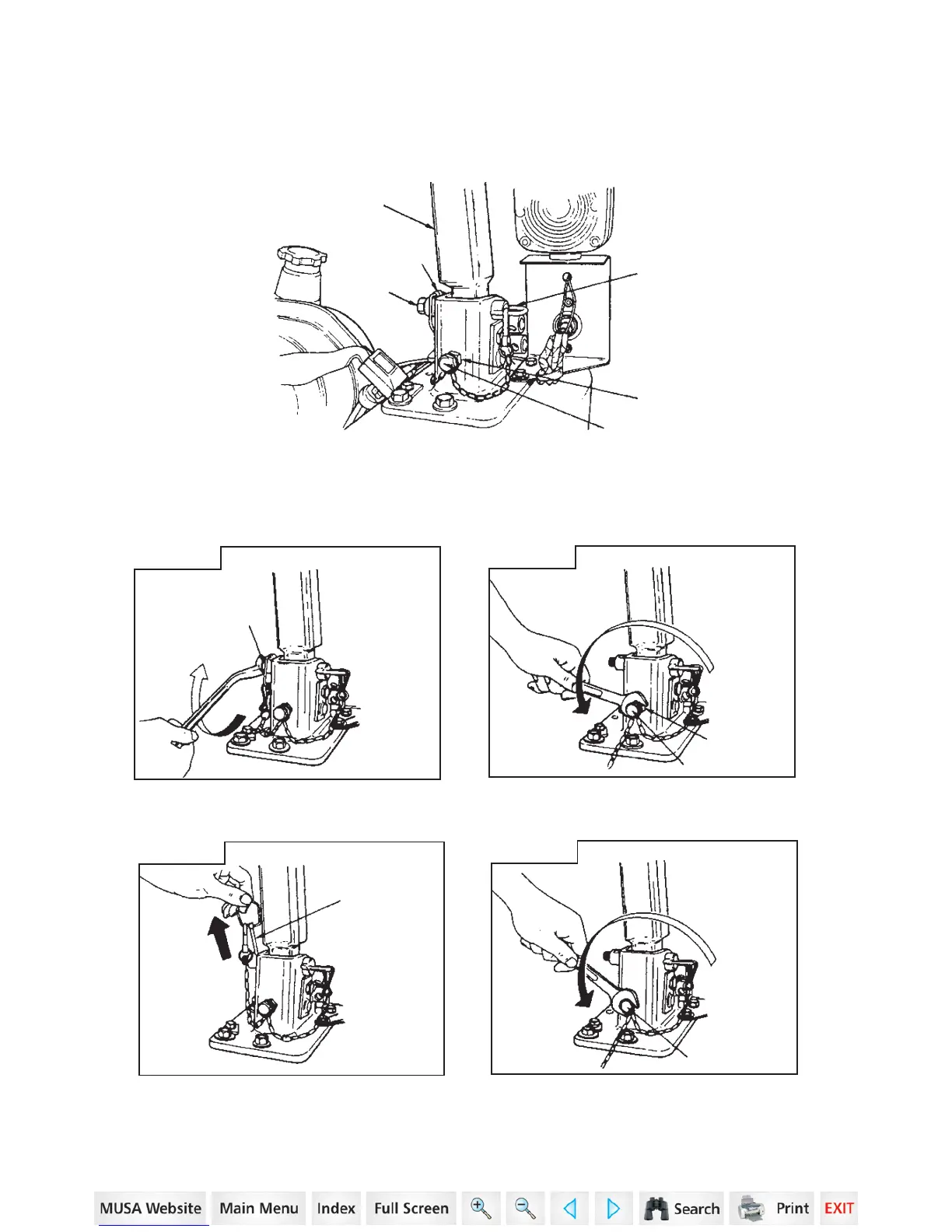

Folding the ROPS
IMPORTANT: Do not fold the ROPS with a sunshade installed.
Remove the lock pins.
LOCK PIN
LOCK NUT
STEP 2
LOCK PIN
Loosen the jam nut on the lock
bolts.
Remove the lock nuts.
Loosen the lock bolts enough to
permit the position pin to be
removed. DO NOT remove pins
until STEP 6.
STEP 4
LOCK BOLT
ROPS BAR
(NORMAL OPERATING POSITION)
JAM NUT
LOCK BOLT
POSITION PIN
STEP 1
LOCK NUT
JAM NUT
LOCK BOLT
STEP 3
13
SAFETY/DECALS_______________________________________________________
