16 Series, Model - 2816 4WD
CLUTCH
ROD
CLUTCH
ARM
ADJUSTING
NUTS
CLUTCH PEDAL ADJUSTMENT
Service Specifications
Clutch Pedal Check and Adjustment Interval ......... Every 200 hours of op-
eration or yearly
Free Pedal Movement ................................... 20 – 30 mm (0.8 – 1.2 inch)
Max. Pedal Movement
Dual Clutch ........................................ 125–130 mm (4.9 – 5.1 inch)
Free Movement Adjustment
Clutch pedal free movement is very important and must be checked at
the recommended intervals. If there is no free movement, the clutch disc
will wear quickly. If there is too much free movement, the clutch will not
disengage
correctly and the transmission will be difficult to shift.

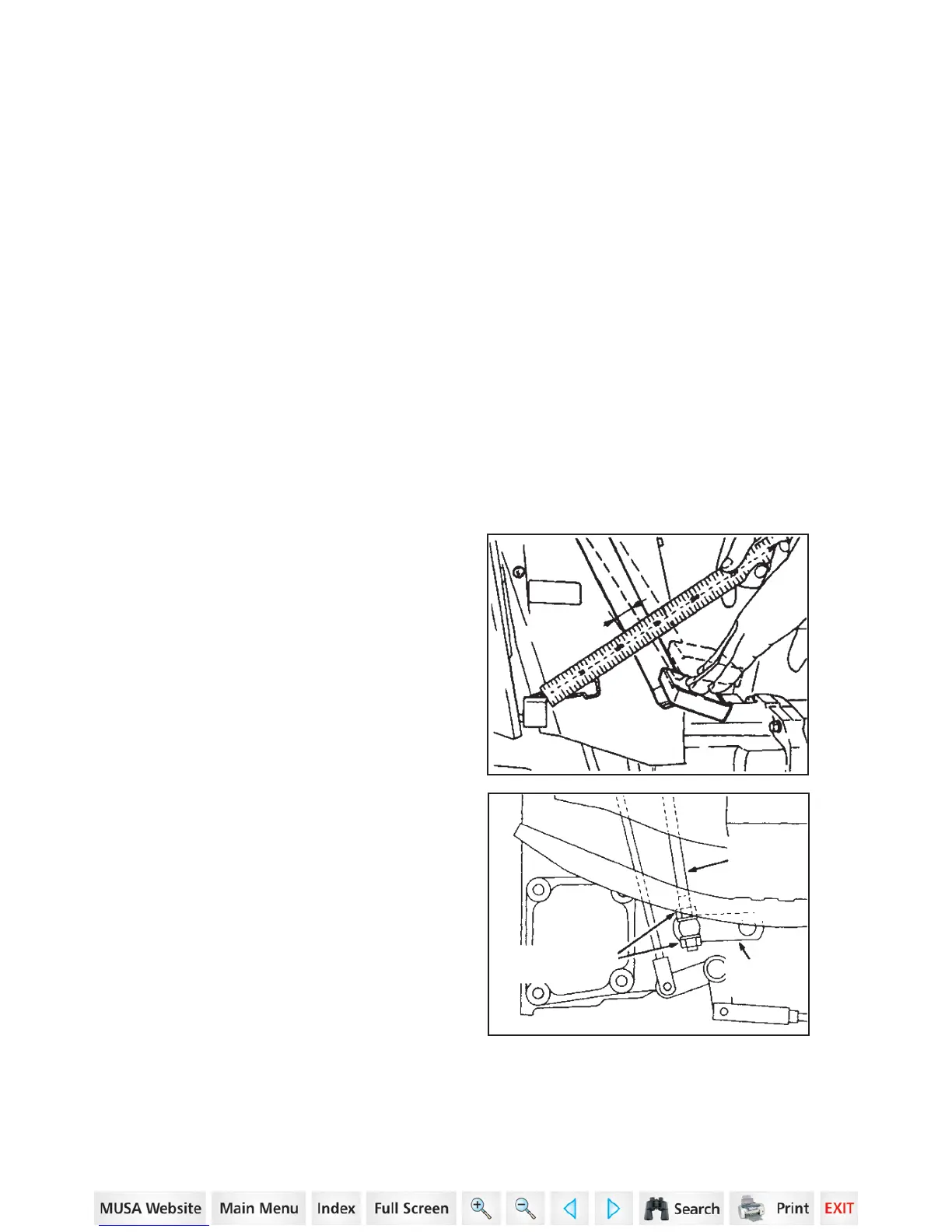

Put the tractor on level ground,
move the range shift lever in the L
position, apply the park brake, stop
the engine and adjust the clutch
pedal free movement as follows:
Push the clutch pedal down by
hand, to measure the amount of
pedal free movement.
The pedal free movement must be
within the specification
shown above.
Adjust the pedal free movement as
necessary with the adjusting nuts on
the clutch rod.
To increase free movement, turn the
nuts in.
To decrease free movement, turn
the nuts out. Tighten the nuts to a
torque of 44 to 54 Nm (32 to 40 lb
ft).
117
