16 Series, Model - 2816 4WD
Maximum Pedal Movement Adjustment
The Maximum Pedal Movement is very important and must be checked
at the recommended intervals. If there is too little movement, the clutch
can disengage. If there is too much movement, the clutch component
parts can be damaged.
NOTE: Adjust the Maximum Pedal Movement after adjusting the Free
Movement.
Put the tractor on level ground, move the range shift lever in the L
position, apply the park brake, stop the engine and adjust the clutch
pedal maximum movement as follows:

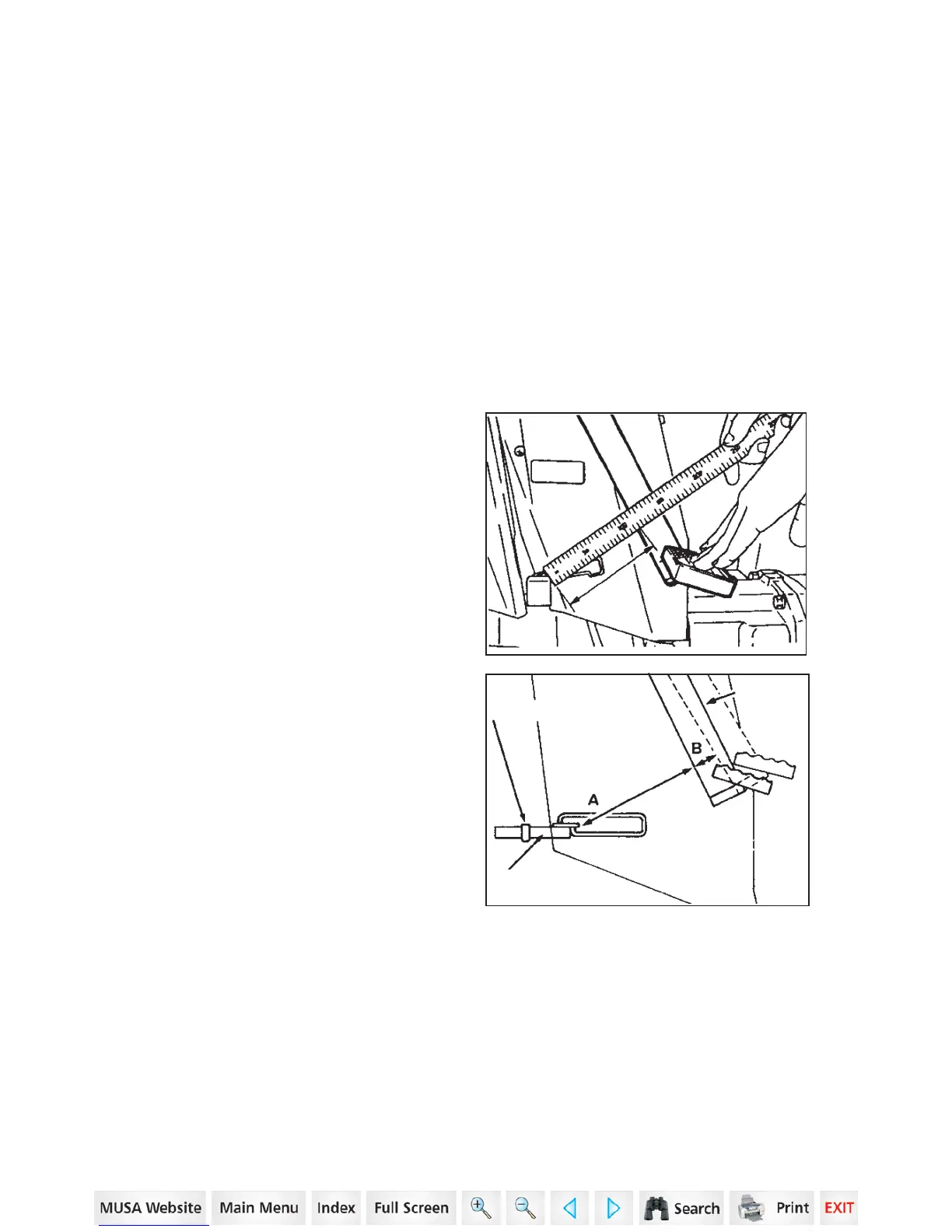

Push the clutch pedal down by hand
to eliminate the pedal free move-
ment.
Measure the distance between the
stop bolt and the clutch pedal arm.
The Maximum Pedal Movement
must be within the specifications
shown on the previous page.
Adjust the Maximum Pedal Move-
ment as necessary with the stop
bolt.
To increase Maximum Pedal Move-
ment – Loosen the lock nut and turn
the
stop bolt in.
To decrease Maximum Pedal Move-
ment – Loosen the lock nut and turn
the stop
bolt out.
STOP BOLT
LOCK NUT
CLUTCH
ARM
118
MAINTENANCE/ADJUSTMENTS
