16 Series, Model - 2816 4WD
POWER TAKEOFF (PTO)
PTO driven machinery can cause serious injury or death, usually due
to wrapped clothing. When required by the job to be in the drive shaft
area, stay clear of rotating parts. Before working on the drive shaft,
or servicing or clearing the driven machine, where applicable on this
tractor, put the PTO clutch lever in the DISENGAGE position, the PTO
lever in the NEUTRAL or OFF, and STOP the engine
M125A

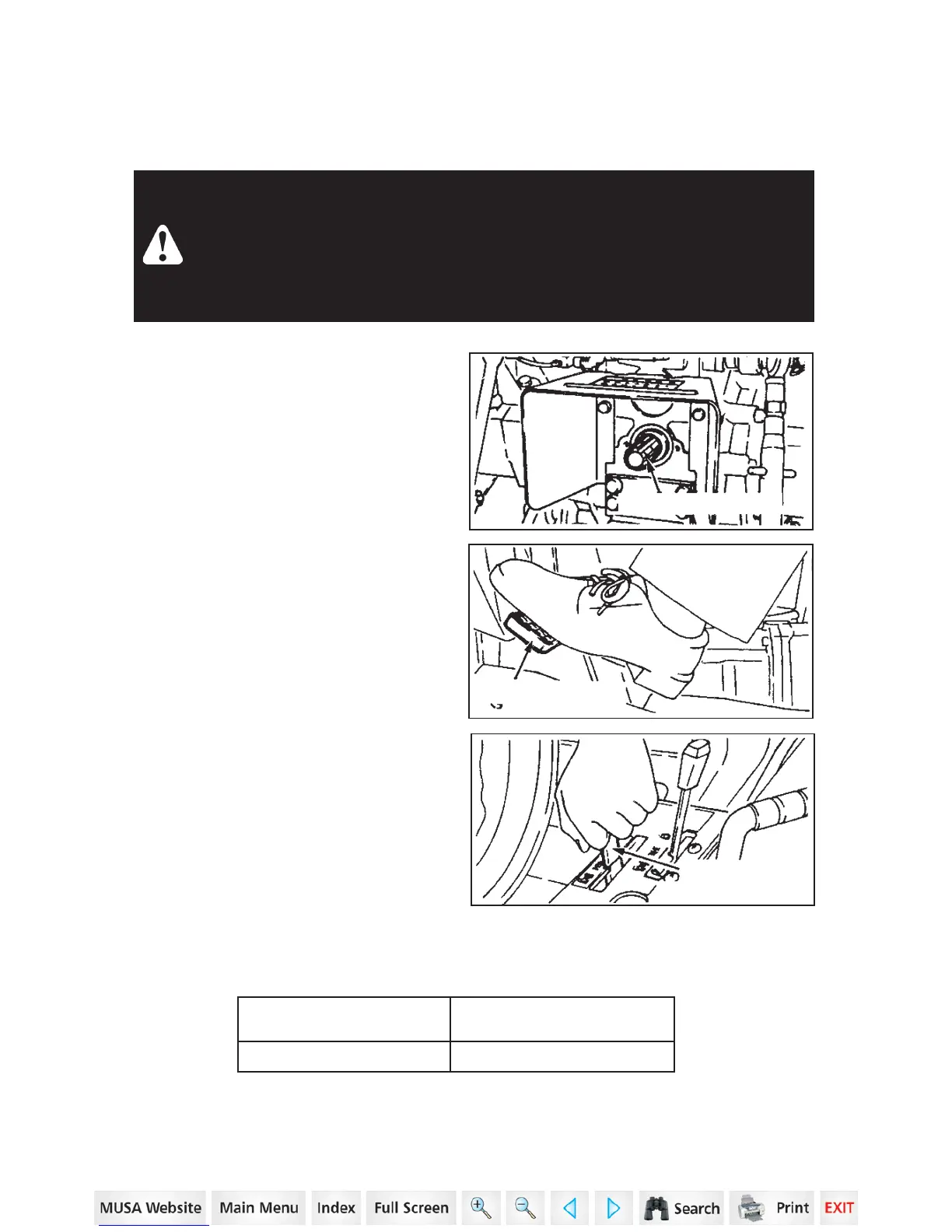

Rear PTO
The rear PTO is a 540 RPM with
a 34.9 mm(1 3/8 inch) diameter 6
spline output shaft.
ENGAG
E THE REAR PTO AS
FOLLOWS:
1.
Push the clutch pedal fully.
2. Move the PTO control lever
fo
rward or rearward.
3. Release the clutch pedal slow-
ly.
DISENGAGE THE REAR PTO
AS FOLLOWS:
1. Push the clutch pedal fully.
2. M
ove the PTO control lever to
t
he
OFF (Engine Start) slot.
NOTE: Keep the PTO control
lever in the OFF (Engine Start)
slot when starting the engine and
whe
n the PTO is not being used.
3. Release the clutch pedal slow-
ly.
The following table shows the required engine speed to get the required
Rea
r PTO output shaft speed.
PTO Output
Shaft Speed
540 RPM
Required
Engine Speed
2376 RPM
REAR PTO SHAFT
CLUTCH PEDAL
REAR PTO
CONTROL LEVER
54
OPERATING INSTRUCTIONS
