16 Series, Model - 2816 4WD
DIFFERENTIAL LOCK
GEAR DRIVE
RIGHT SIDE of the transmission
Your tractor has a differential lock that will make both rear wheels turn at
the same speed. The differential lock prevents loss of power when one
wheel does not have traction but the other wheel does have traction. It
also provides a straight in line steering aid when opening up the field and
to control implement overlap.
TO ENGAGE THE DIFFERENTIAL LOCK:
Depress and hold the differential lock pedal down.
IMPORTANT: Do not engage the differential lock while one rear wheel
is rotating and the other rear wheel is stopped. Always stop the wheel
that
is rotating and then engage the differential lock.
IMPORTANT: When you engage or disengage the differential lock, the
front wheels must be in the straight forward position. Before turning the
tractor,
disengage the differential lock.
TO DIS
ENGAGE THE DIFFERENTIAL LOCK:
The differential lock will disengage when the differential lock pedal is
released. If the differential lock does not disengage easily, push down on
either brake
pedal instantaneously.

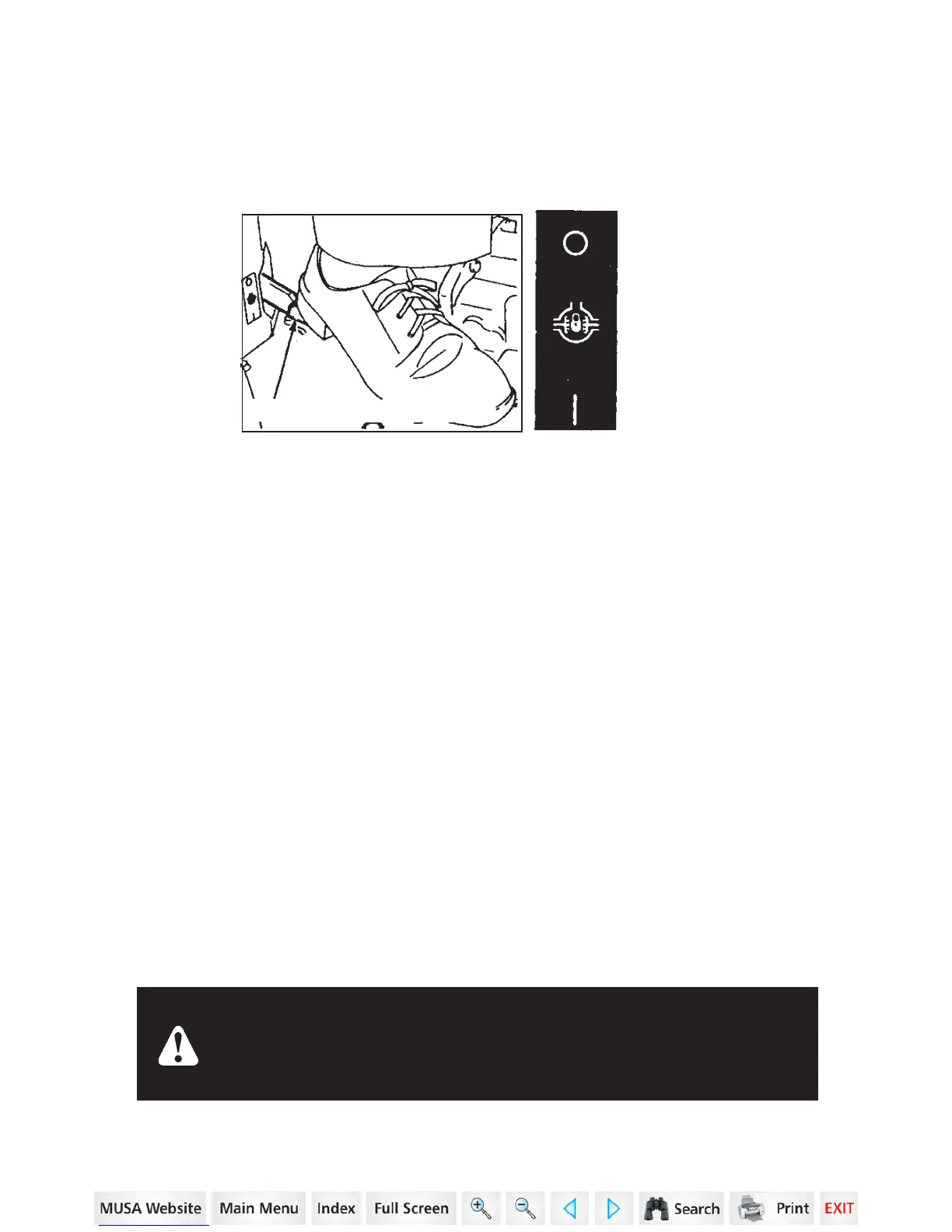

DIFFERENTIAL LOCK PEDAL
53
OPERATING INSTRUCTIONS
____________________________________________
Do not drive on roads, or at high speed anywhere, with the
differential lock engaged. Difficult steering will occur, and can result
in an accident. In field operation, use the differential lock for traction
improvement, but release for turning at row ends.
M116
