16 Series, Model - 2816 4WD
FUSIBLE LINK
LINE FUSE
TwoLine fuses are installed and the circuit can be identified by color of box.
Red Box (50AMP):Solenoid switch
circuit
Yellow Box (60AMP):Wiring harness and alternator
charging system
Line Fuse

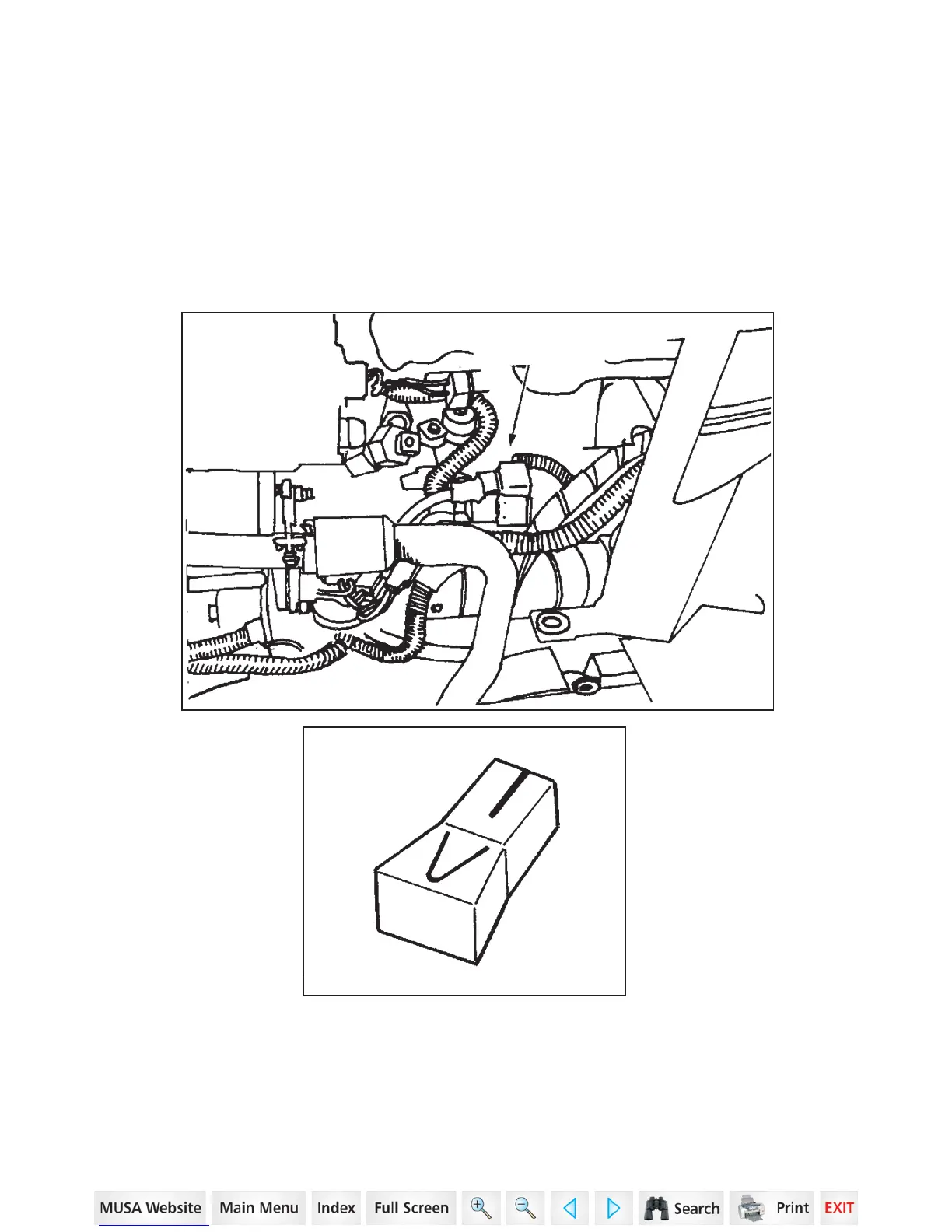

If the electrical circuit is accidently grounded or a reverse battery connection
is made, the Line fuse located on the LH side of the engine will burn out and
break the circuit to prevent the solenoid switch, wiring harness and alternator charg-
ing system from being damaged. If electrical problems occur, the
Line
fuse must be checked for continuity to determine if one of the circuits is
broken, see your
Dealer to replace and correct.
124
ELECTRICAL SYSTEM_________________________________________________
