16 Series, Model - 2816 4WD

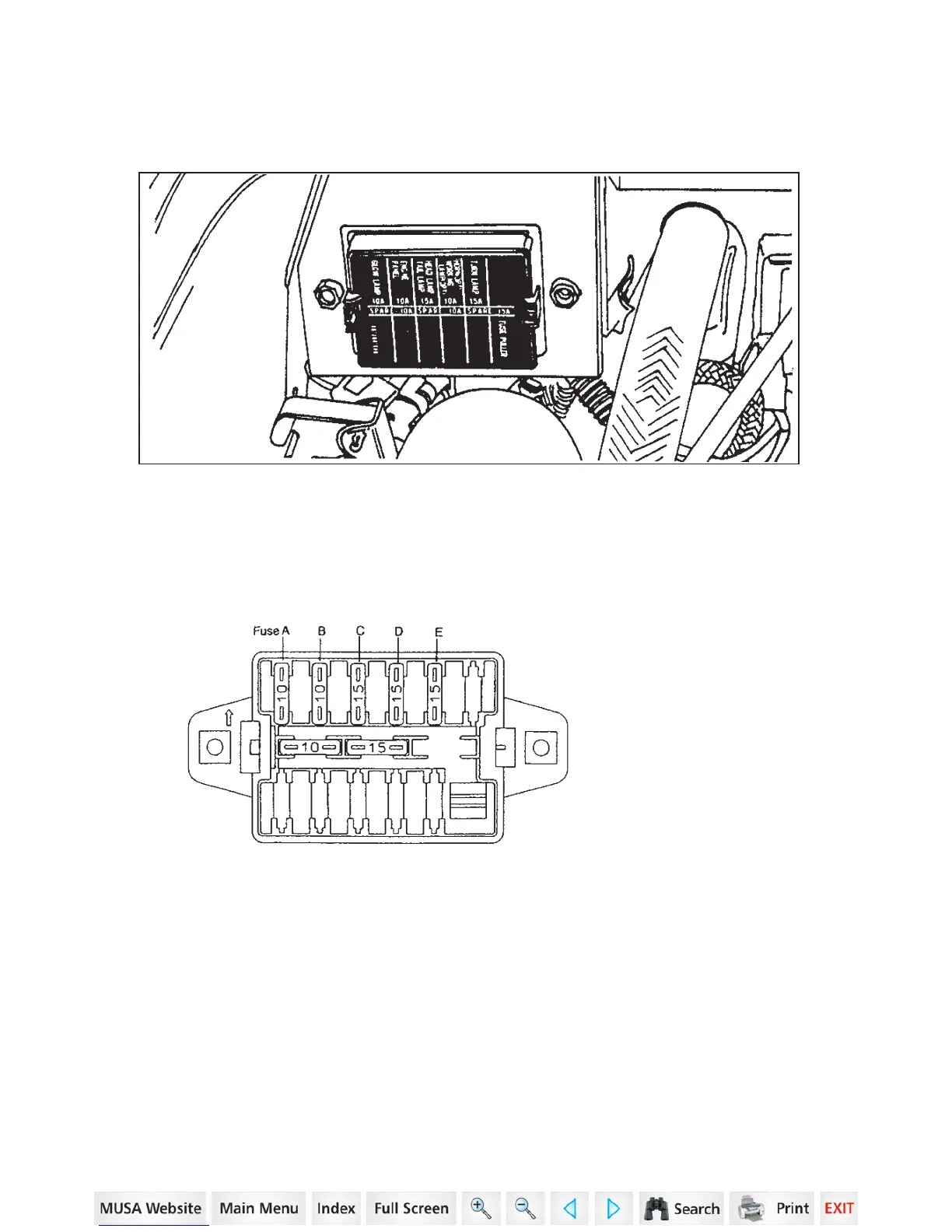

Cartridge type fuses are used for head lamps, rear red lamp, instrument
lamps, turn signal and flasher lamps, and rear work lamp (if equipped).
The
fuses are located in the fuse block, R.H. rear of engine room.
If a short circuit occurs, the fuse will burn out and break the circuit,
preventing
damage to the electrical system.
Fuse A (10 AMP) is for the glow plug indicator lamps.
Fuse
B (10 AMP) is for the charge indicator lamp, engine oil pressure indica-
tor
lamp,
engine coolant temperature gauge, fuel gauge and fuel pump.
Fuse C (10 AMP) is for the high beam indicator lamp, instrument panel lamps
,
head lamps and rear red lamp.
Fuse
D (15 AMP) is for the turn signal lamps.
Fuse
E (15 AMP) is for the optional electrical equipments.
Fuses
123
ELECTRICAL SYSTEM_________________________________________________
